F15CEP (2024)
CONTROL 1

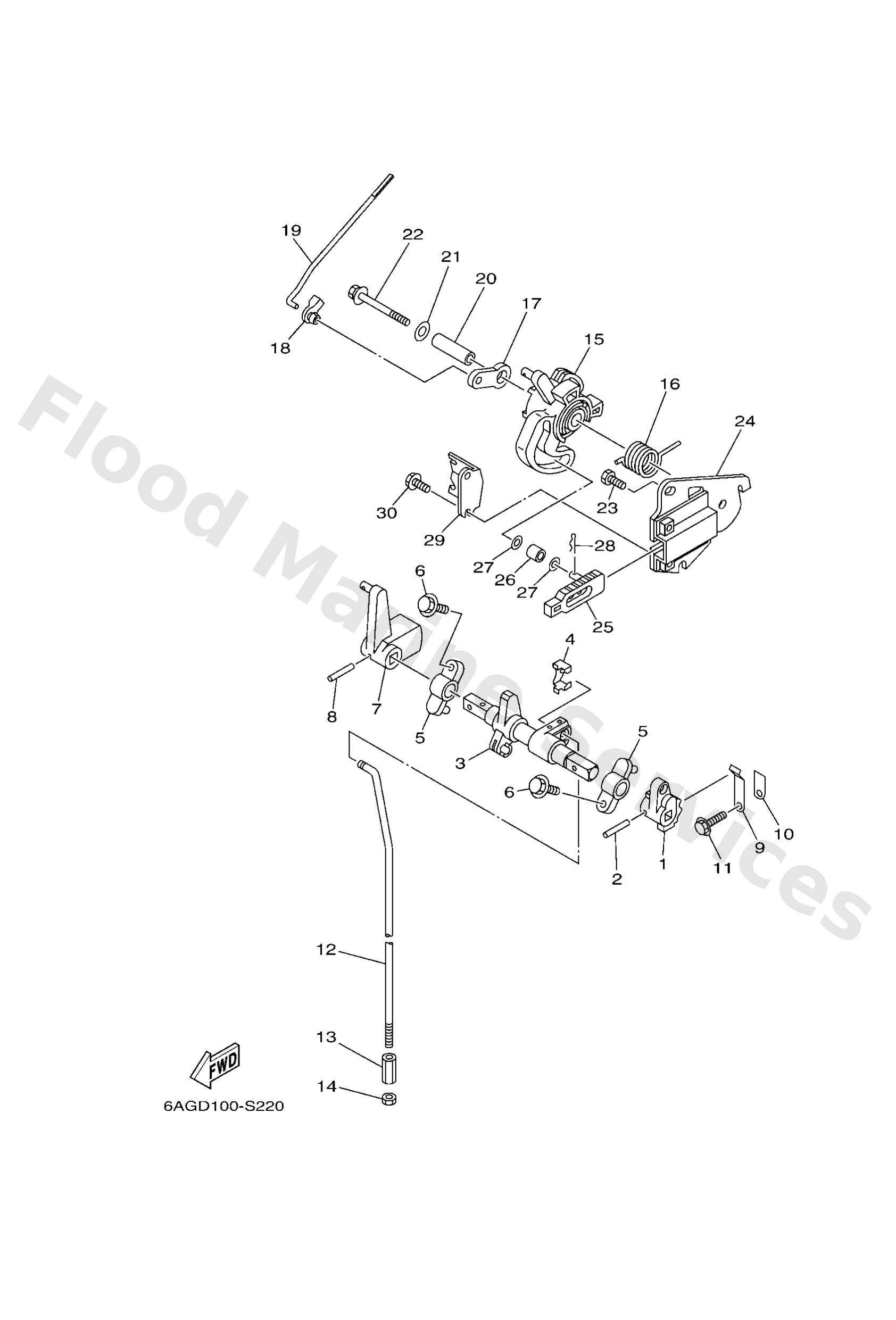

Diagram: CONTROL 1
Parts List
Reference
Description
Price
1
6AH4412300
Arm, shift rod
Loading…
↗
2
9025403M05
Pin, spring
Loading…
↗
3
6AH4412101
Lever, shift rod
Loading…
↗
4
6AH2636400
End, cable 2
Loading…
↗
5
6G1416620194
Bracket
Loading…
↗
6
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
7
6AH4412500
Lever, shift rod
Loading…
↗
9
65W4411600
Spring
Loading…
↗
10
66R4411400
Stopper
Loading…
↗
11
95D9506014
Bolt, flange deep recess
Loading…
↗
12
6AH4414310
L(22.1")
Rod, shift
Loading…
↗
12
6AH4414300
S(17.1")
Rod, shift
Loading…
↗
13
9017006015
Connector, shift rod
Loading…
↗
14
9538006700
Nut
Loading…
↗
15
6AH4163800
Pulley
Loading…
↗
16
9050820M44
Spring, torsion
Loading…
↗
17
65W4128300
Lever, free accel.
Loading…
↗
18
6J84126200
Joint, choke lever
Loading…
↗
19
6AH4121100
Link, accel.
Loading…
↗
20
9038706139
Collar
Loading…
↗
21
9020106M31
Washer (6a0)
Loading…
↗
22
97E9506555
Bolt, hexagon w/w deep recess
Loading…
↗
23
97D9506014
Bolt, hexagon deep recess
Loading…
↗
24
6AH1457100
Bracket, throttle
Loading…
↗
25
6AH4416710
Plunger, shift cam
Loading…
↗
26
62Y4217100
Bushing
Loading…
↗
27
9020105M04
Washer, plate
Loading…
↗
28
9046810005
Pin, hair 6264123500
Loading…
↗
29
6AH1449700
Stay, throttle wire
Loading…
↗
30
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
