F225AET (2004)
CONTROL 1

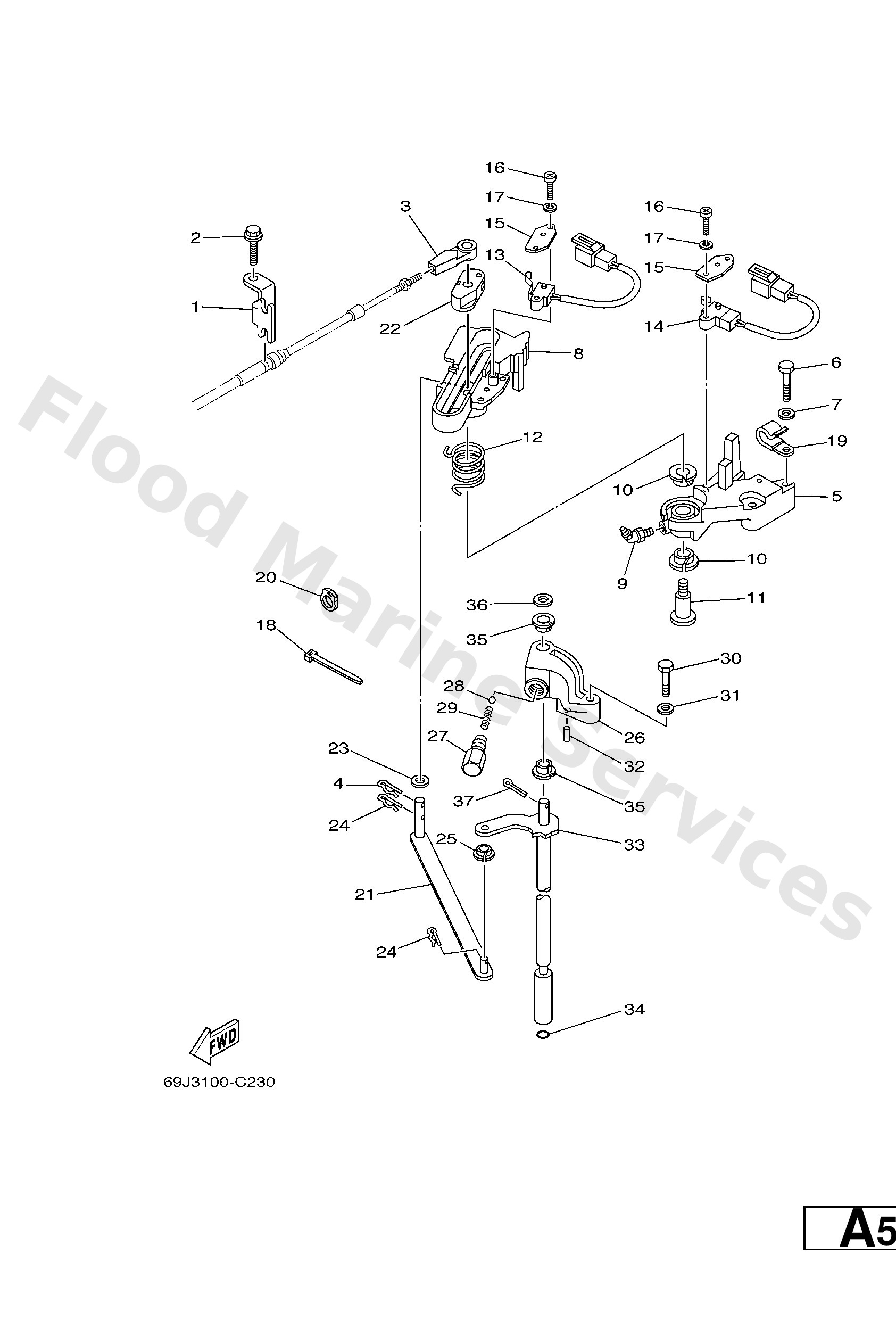

Diagram: CONTROL 1
Parts List
Reference
Description
Price
1
69J4853100
Bracket, remote control 1
Loading…
↗
2
9010906M86
Bolt
Loading…
↗
3
6E54834400
Cable end, remote control
Loading…
↗
4
9046818008
Clip 620436610000
Loading…
↗
5
69J44117001S
Bracket
Loading…
↗
6
9709506035
Bolt(j52)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
69J44176011S
Bracket
Loading…
↗
9
9370006M01
Nipple, grease(61a)
Loading…
↗
10
9038612069
Bush(666)
Loading…
↗
11
9010908019
Bolt
Loading…
↗
12
9050820020
Spring, torsion
Loading…
↗
13
68F8259F00
Switch assembly
Loading…
↗
14
69J8259F00
Switch assembly
Loading…
↗
15
61A8258801
Plate
Loading…
↗
16
9788504016
Screw, panhead (796)
Loading…
↗
17
9299504100
Ybs67-4 washer, spring
Loading…
↗
18
9046511M10
Clamp
Loading…
↗
19
9046506M86
Clamp
Loading…
↗
20
9046409010
Clamp
Loading…
↗
21
69J4412100
Lever, Shift Rod
Loading…
↗
22
69J4412200
Bushing, shift rod lever
Loading…
↗
23
9020208M20
Washer, plate (6e5)
Loading…
↗
25
9038606M12
Bushing (688)
Loading…
↗
26
69J4411800
Bracket
Loading…
↗
27
6484271500
Bushing 2
Loading…
↗
28
9350104M02
Ball (697)
Loading…
↗
29
9050112082
Spring 6484411600
Loading…
↗
30
9707506030
Bolt(jf7)
Loading…
↗
32
9169030010
Pin, spring (663)
Loading…
↗
33
69J4412000
X
Handle gear shift assembly
Loading…
↗
33
69J4412010
U
Handle gear shift assembly
Loading…
↗
34
9321009165
O-ring
Loading…
↗
35
9038690M90
Bush(61a)
Loading…
↗
36
9020109M02
Washer, plate(61a)
Loading…
↗
37
9149020015
Pin, cotter (648)
Loading…
↗
