Yamaha Outboard Parts - CONTROL 1 - F9.9JMH (2017) | Flood Marine
New Search
Parts
New Outboards
Home
F9.9JMH (2017)
CONTROL 1

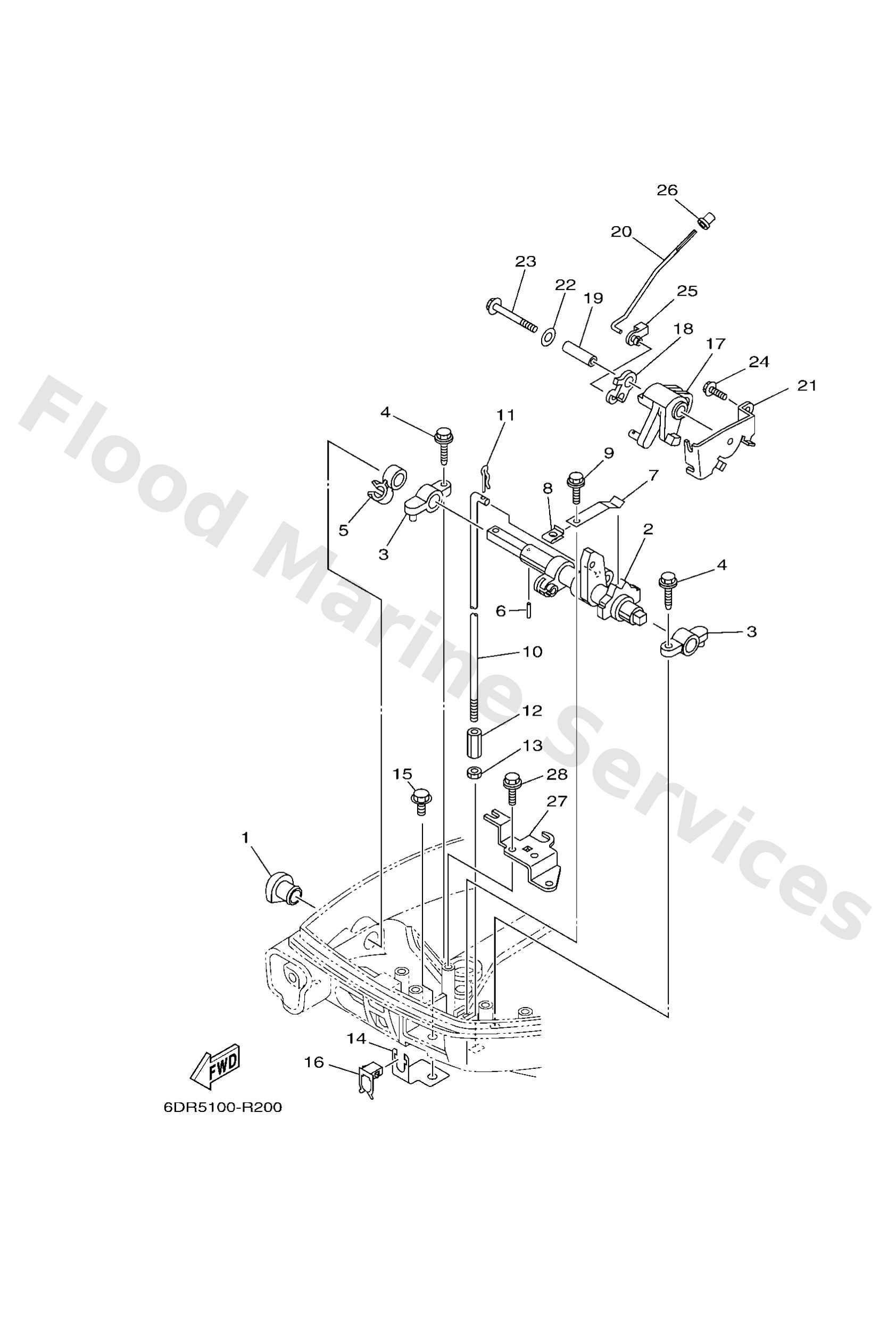

Diagram: CONTROL 1
Parts List
Reference
Description
Price
1
68T4272600
Grommet
Loading…
↗
2
68T4412103
Lever, shift rod
Loading…
↗
3
6G1416620194
Bracket
Loading…
↗
4
9010906M81
Bolt
Loading…
↗
5
9046410M60
Clamp
Loading…
↗
6
9169030014
Pin, spring (647)
Loading…
↗
7
65W4411600
Spring
Loading…
↗
8
6DR4411700
Bracket
Loading…
↗
9
9010906M86
Bolt
Loading…
↗
10
68T4414300
S(17.0")
Rod, shift 1
Loading…
↗
10
68T4414310
L(22.0")
Rod, shift 1
Loading…
↗
11
9046818001
Clip
Loading…
↗
12
61N4414600
Connector, shift rod
Loading…
↗
13
9538006700
Nut
Loading…
↗
14
68T4853800
Clamp, cable 1
Loading…
↗
15
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
16
63D4853800
Clamp, cable 1
Loading…
↗
17
68T4163800
Pulley
Loading…
↗
18
68T4128300
Lever, free accel.
Loading…
↗
19
9038706M59
Collar (6h3)
Loading…
↗
20
6AU4121100
Link, accel.
Loading…
↗
21
68T1449700
Stay, throttle wire
Loading…
↗
22
9020106M62
Washer, plate (6e5)
Loading…
↗
23
9759506545
Bolt, hexagon w/w deep recess
Loading…
↗
25
6J84126200
Joint, choke lever
Loading…
↗
26
6471439560
Cap,over flow pipe
Loading…
↗
27
68T1577410
Stay 4
Loading…
↗
