FT8DMH (2002)
CONTROL 1

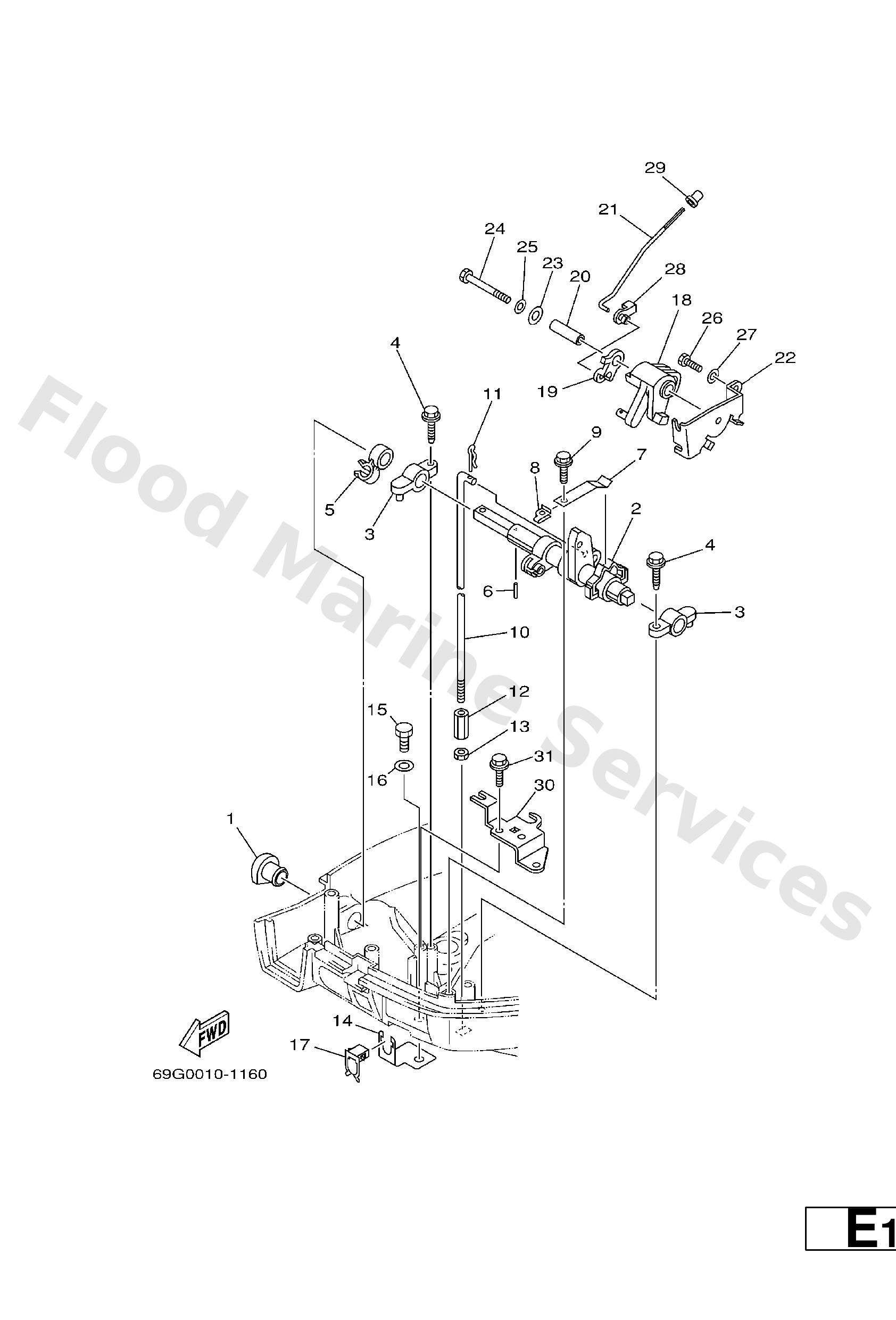

Diagram: CONTROL 1
Parts List
Reference
Description
Price
1
68T−42726−00
Grommet
Loading…
↗
2
68T−44121−01
Lever, shift rod
Loading…
↗
3
6G1−41662−01−94
Bracket
Loading…
↗
4
90109−06M81
Bolt
Loading…
↗
5
90464−10M60
Clamp
Loading…
↗
6
91690−30014
Pin, spring (647)
Loading…
↗
7
65W−44116−00
Spring
Loading…
↗
8
66R−44117−00
Bracket
Loading…
↗
9
90109−06M86
Bolt
Loading…
↗
10
68T−44143−10
Rod, shift 1
Loading…
↗
11
90468−18001
Clip
Loading…
↗
12
90170−06015
Connector, shift rod
Loading…
↗
13
95380−06700
Nut
Loading…
↗
14
68T−48538−00
Clamp, cable 1
Loading…
↗
15
97095−06012
Bolt(gh1)
Loading…
↗
16
92995−06600
Washer, plain (646)
Loading…
↗
17
63D−48538−00
Clamp, cable 1
Loading…
↗
18
68T−41638−00
Pulley
Loading…
↗
19
68T−41283−00
Lever, free accel.
Loading…
↗
20
90387−06M59
Collar (6h3)
Loading…
↗
21
68T−41211−00
Link, accel.
Loading…
↗
22
68T−14497−00
Stay, throttle wire
Loading…
↗
23
90201−06M62
Washer, plate (6e5)
Loading…
↗
24
97095−06045
Bolt, hexagon
Loading…
↗
28
661−41262−02
Joint, choke lever
Loading…
↗
29
647−14395−60
Cap,over flow pipe
Loading…
↗
30
68T−15774−10
Stay 4
Loading…
↗
