15FWC (2003)
CONTROL 2

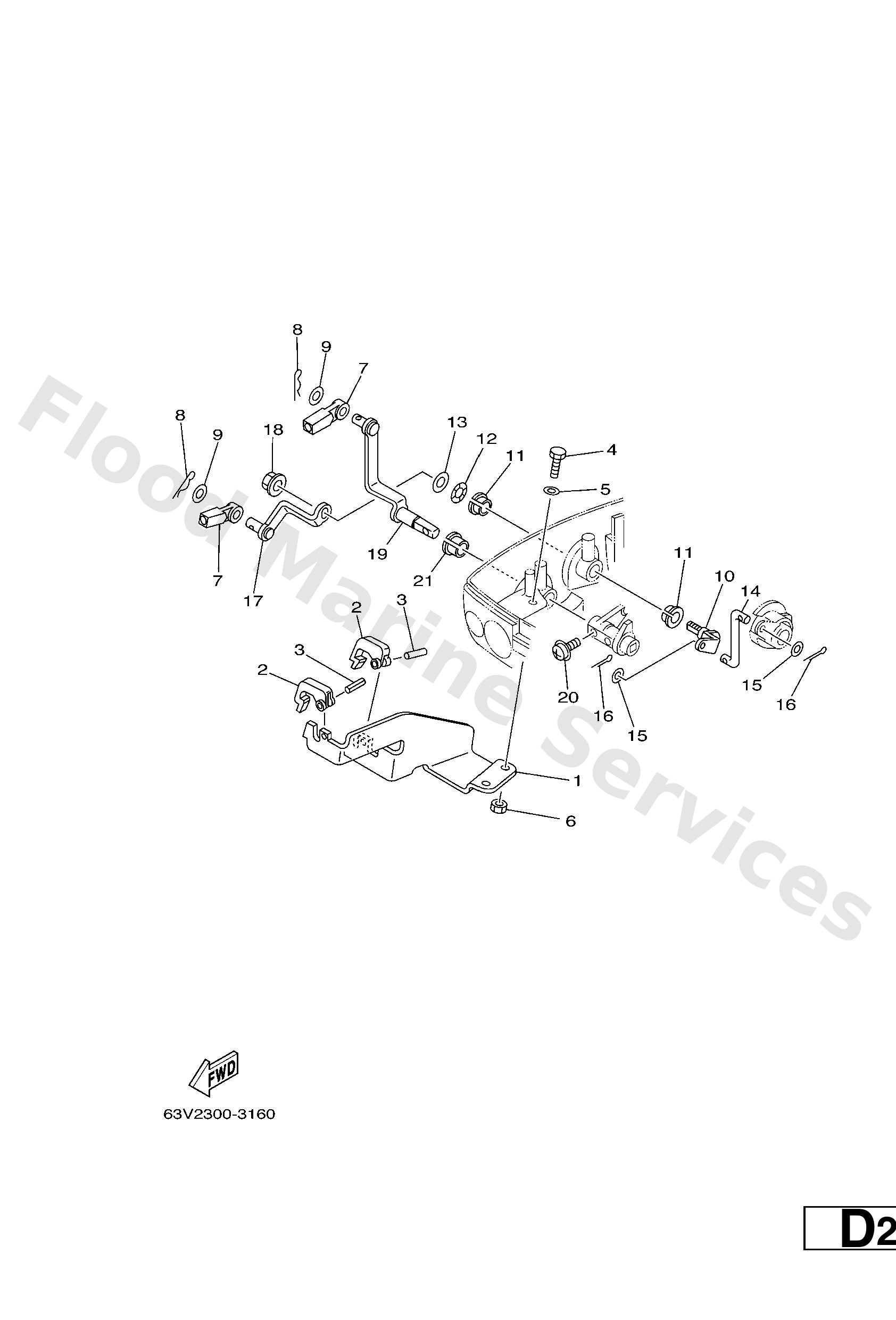

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
63V4853100
Bracket, remote control 1
Loading…
↗
2
6824853850
Clamp, cable
Loading…
↗
3
9169030012
Pin, spring
Loading…
↗
4
9709506016
Bolt, hexagon deep recess
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
9538006600
Nut(661)
Loading…
↗
7
6634834400
Cable end, remote control
Loading…
↗
8
9046818008
Clip 620436610000
Loading…
↗
9
9020108M12
Washer plate (682)
Loading…
↗
10
63V4215400
Lever, throttle control
Loading…
↗
11
9038610025
Bushing (658)
Loading…
↗
12
9020610M04
Washer, wave (676)
Loading…
↗
13
9020110M02
Washer, plate(6g9)
Loading…
↗
14
63V4219200
Rod 2
Loading…
↗
15
9020104M06
Washer, plate(26h)
Loading…
↗
16
9149020010
Pin, cotter
Loading…
↗
17
63V4853400
Throttle lever, control
Loading…
↗
18
9578008300
Nut, nylon (6j8)
Loading…
↗
19
63V4854400
Lever, shiftcontrol
Loading…
↗
20
9015905M25
Screw,pan head (646)
Loading…
↗
21
9038610009
Bushing 6484418600
Loading…
↗
