25NMHO (2009)
CONTROL 2

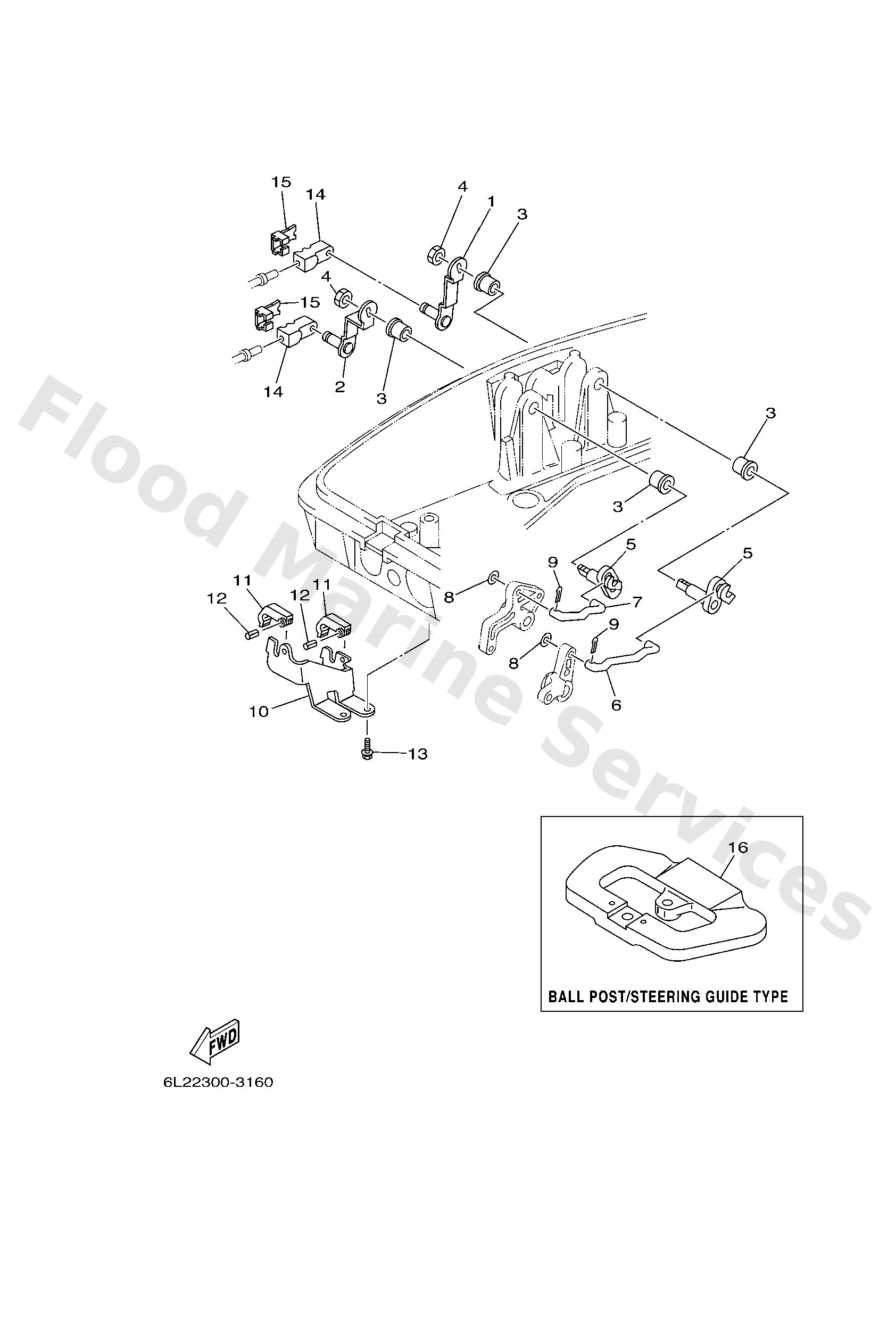

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
6L24854401
Lever, shiftcontrol
Loading…
↗
2
6L24853401
Throttle lever, control
Loading…
↗
3
9038610009
Bushing 6484418600
Loading…
↗
4
9578008300
Nut, nylon (6j8)
Loading…
↗
5
6L24215401
Lever, throttle control
Loading…
↗
6
6L24219101
Rod 1
Loading…
↗
7
6L24219220
Rod 2
Loading…
↗
8
9020205088
Washer, plate (666)
Loading…
↗
9
9149020010
Pin, cotter
Loading…
↗
10
6L24853100
Bracket, remote control 1
Loading…
↗
11
6824853850
Clamp, cable
Loading…
↗
12
9169030012
Pin, spring
Loading…
↗
13
9010506M23
Bolt (6g1)
Loading…
↗
14
6G82636300
End, wire 1
Loading…
↗
15
6G82636400
End, wire 2
Loading…
↗
16
6J848511014D
Hook, steering
Loading…
↗
