Yamaha Outboard Parts - CONTROL 2 - 30DETO (2010) | Flood Marine
New Search
Parts
New Outboards
Home
30DETO (2010)
CONTROL 2

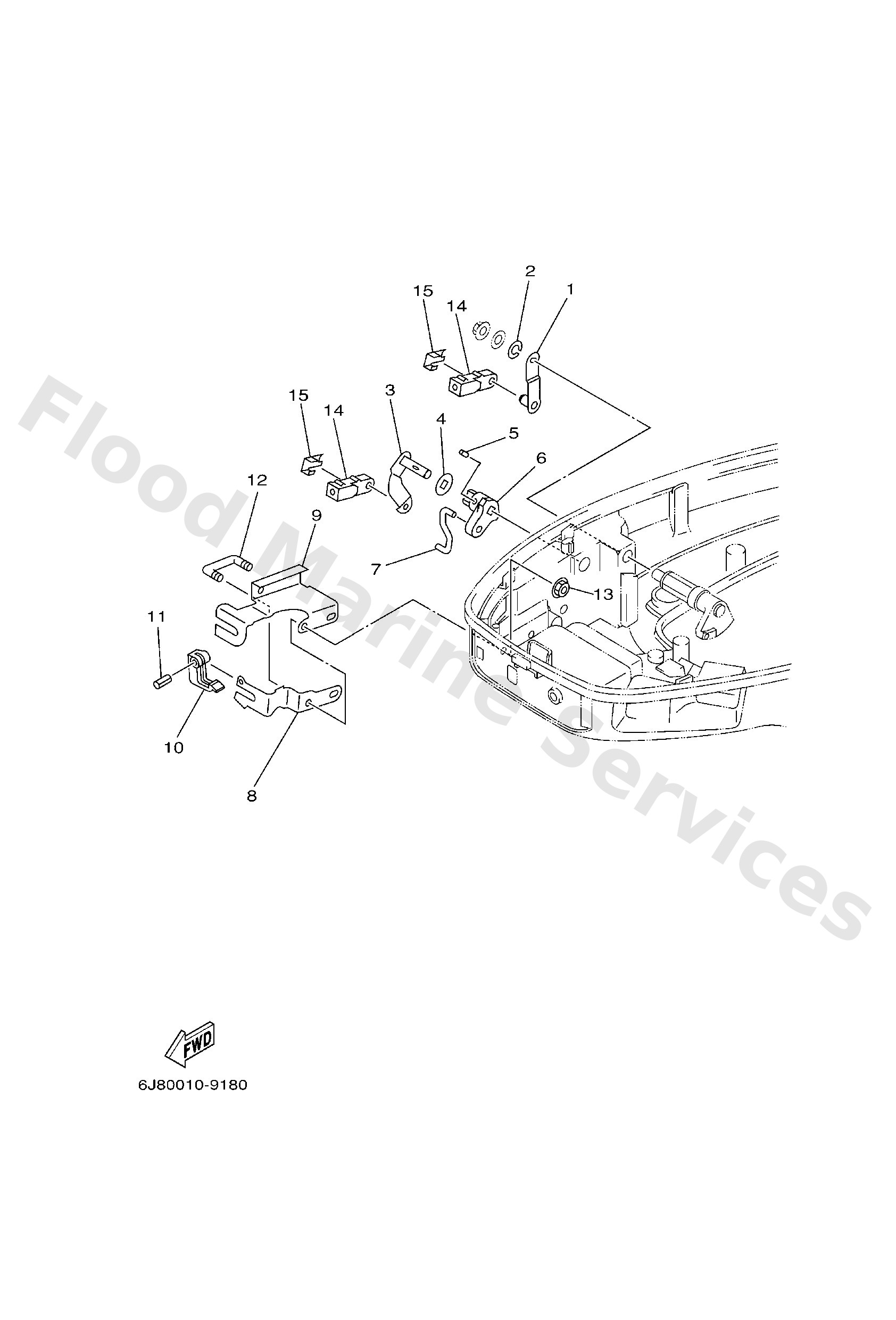

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
6J84853400
Throttle lever, control
Loading…
↗
2
9299008100
Ybs67-8 washer, spring
Loading…
↗
3
6J84854401
Lever, shiftcontrol
Loading…
↗
4
6J84417700
Washer
Loading…
↗
5
9025403M03
Pin, spring
Loading…
↗
6
6J84417302
Lever, shift control
Loading…
↗
7
6J84216901
Joint
Loading…
↗
8
6J84853100
Bracket, remote control
Loading…
↗
9
6J84853200
Bracket, remote control 2
Loading…
↗
10
6824853850
Clamp, cable
Loading…
↗
11
9169030012
Pin, spring
Loading…
↗
12
9010906M29
Bolt(6j8)
Loading…
↗
13
9017906M24
Nut(6j8)
Loading…
↗
14
6G82636300
End, wire 1
Loading…
↗
15
6G82636400
End, wire 2
Loading…
↗
