30MHB (2003)
CONTROL 2

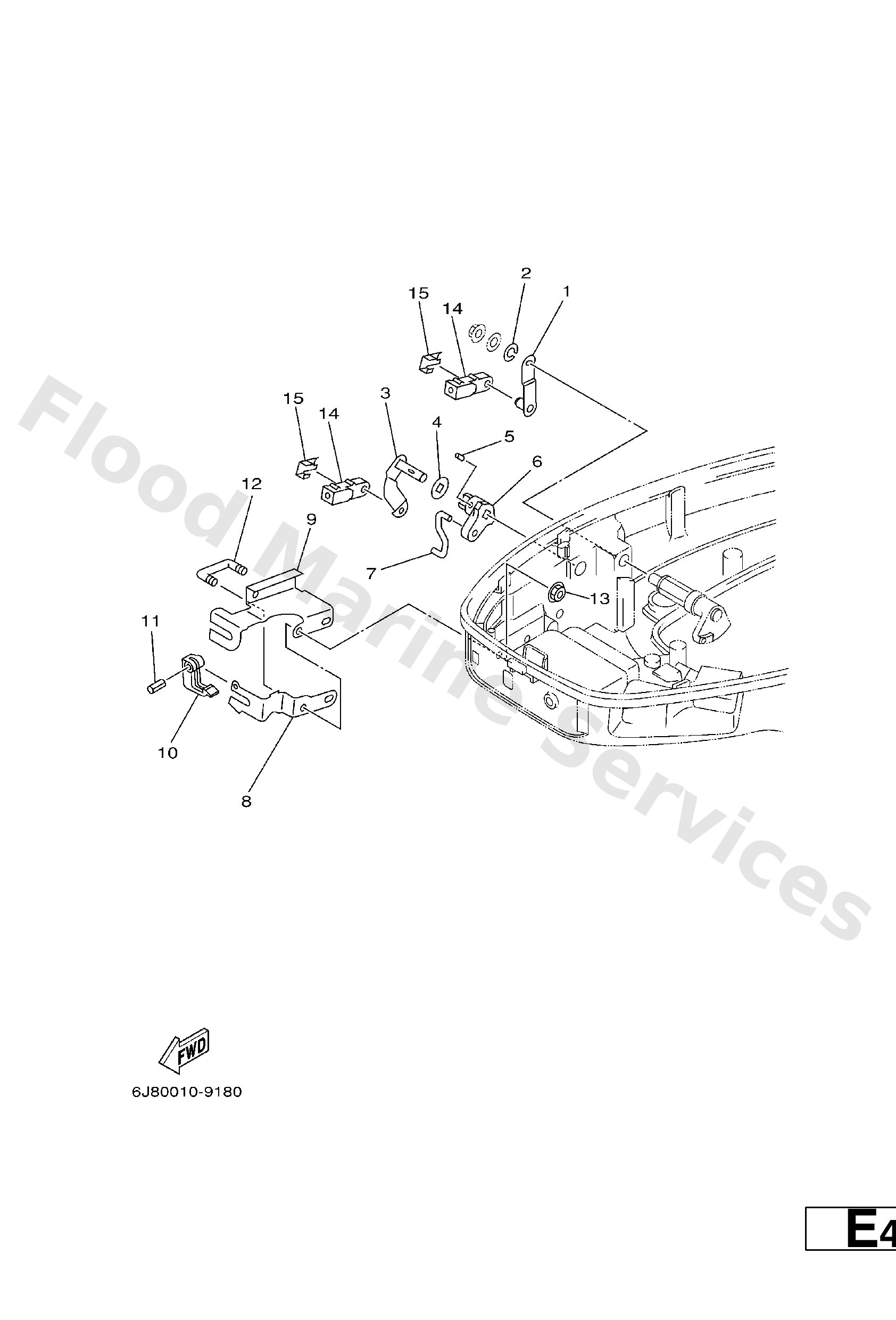

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
6J8−48534−00
Throttle lever, control
Loading…
↗
2
92990−08100
Ybs67-8 washer, spring
Loading…
↗
3
6J8−48544−01
Lever, shiftcontrol
Loading…
↗
4
6J8−44177−00
Washer
Loading…
↗
5
90254−03M03
Pin, spring
Loading…
↗
6
6J8−44173−02
Lever, shift control
Loading…
↗
7
6J8−42169−01
Joint
Loading…
↗
8
6J8−48531−00
Bracket, remote control
Loading…
↗
9
6J8−48532−00
Bracket, remote control 2
Loading…
↗
10
682−48538−50
Clamp, cable
Loading…
↗
11
91690−30012
Pin, spring
Loading…
↗
12
90109−06M29
Bolt(6j8)
Loading…
↗
13
90179−06M24
Nut(6j8)
Loading…
↗
14
6G8−26363−00
End, wire 1
Loading…
↗
15
6G8−26364−00
End, wire 2
Loading…
↗
