F20GEP (2023)
CONTROL 2

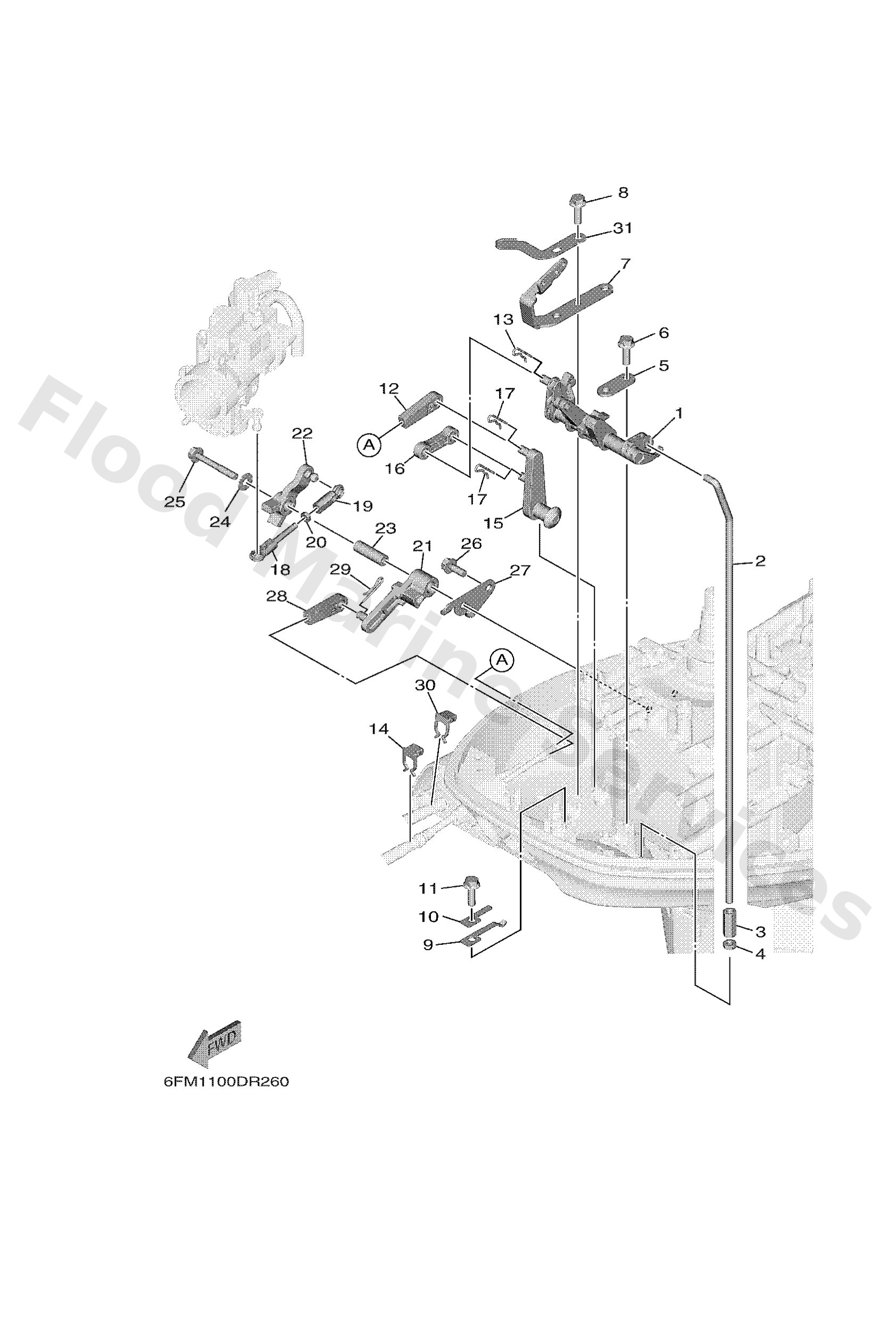

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
6FM4412100
Lever, shift rod
Loading…
↗
2
6FM4414300
S(16.7")
Rod, shift
Loading…
↗
2
6FM4414310
L(21.7")
Rod, shift
Loading…
↗
3
9017006015
Connector, shift rod
Loading…
↗
4
9538006700
Nut
Loading…
↗
5
6FM4166100
Bracket 1
Loading…
↗
6
9010906M86
Bolt
Loading…
↗
7
6FM4166200
Bracket 2
Loading…
↗
9
66R4411600
Spring
Loading…
↗
10
66R4411800
Bracket
Loading…
↗
12
6FM4834400
Cable end, remote control
Loading…
↗
13
9046818008
Clip 620436610000
Loading…
↗
14
63D4853800
Clamp, cable 1
Loading…
↗
15
6FM4412500
Lever, shift rod
Loading…
↗
16
6FM4419200
Link, shift rod
Loading…
↗
18
6824123750
Joint, link 2
Loading…
↗
19
6H44123700
Joint, link
Loading…
↗
20
9538005700
Nut (656)
Loading…
↗
21
6FM4215700
Lever, throttle
Loading…
↗
22
6FM4128300
Lever, free accel.
Loading…
↗
23
9038706M59
Collar (6h3)
Loading…
↗
24
9020106M62
Washer, plate (6e5)
Loading…
↗
25
95D9506045
Bolt, flange deep recess
Loading…
↗
26
95D9506016
Bolt, flange deep recess
Loading…
↗
27
6FM1457100
Bracket, throttle
Loading…
↗
31
6FM8239800
Plate 3
Loading…
↗
