F25DET (2009)
CONTROL 2

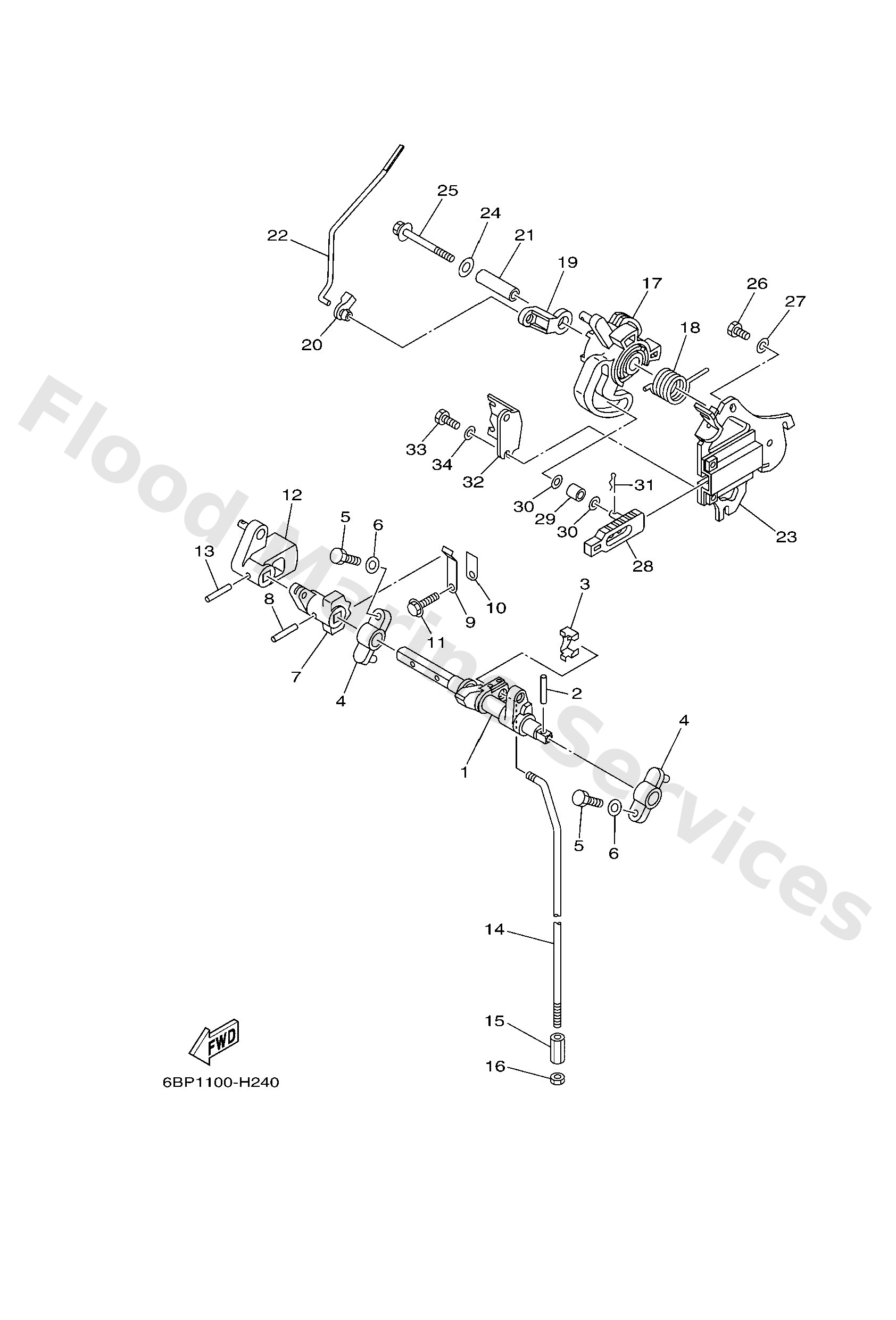

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
6BL4412100
Lever, shift rod
Loading…
↗
2
9025403M05
Pin, spring
Loading…
↗
3
6AH2636400
End, cable 2
Loading…
↗
4
6G1416620194
Bracket
Loading…
↗
5
9709506020
Bolt(7u8)
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
6BL4417300
Lever, shift control
Loading…
↗
9
65W4411600
Spring
Loading…
↗
10
66R4411400
Stopper
Loading…
↗
11
9589506014
Bolt, flange deep recess
Loading…
↗
12
6BL4414200
Joint
Loading…
↗
14
6BP4414310
Rod, shift
Loading…
↗
15
9017006015
Connector, shift rod
Loading…
↗
16
9538006700
Nut
Loading…
↗
17
6AH4163800
Pulley
Loading…
↗
18
9050820M44
Spring, torsion
Loading…
↗
19
6BL4128300
Lever, free accel.
Loading…
↗
20
6J84126200
Joint, choke lever
Loading…
↗
21
9038706139
Collar
Loading…
↗
22
6BP4121100
Link, accel.
Loading…
↗
23
6BL1457100
Bracket, throttle
Loading…
↗
24
9020106M31
Washer (6a0)
Loading…
↗
25
9759506555
Bolt, hexagon w/w deep recess
Loading…
↗
26
9709506014
Bolt(gj3)
Loading…
↗
28
6AH4416700
Plunger, shift cam
Loading…
↗
29
62Y4217100
Bushing
Loading…
↗
30
9020105M04
Washer, plate
Loading…
↗
31
9046810005
Pin, hair 6264123500
Loading…
↗
32
6AH1449700
Stay, throttle wire
Loading…
↗
