F9.9FMH (2009)
CONTROL 2

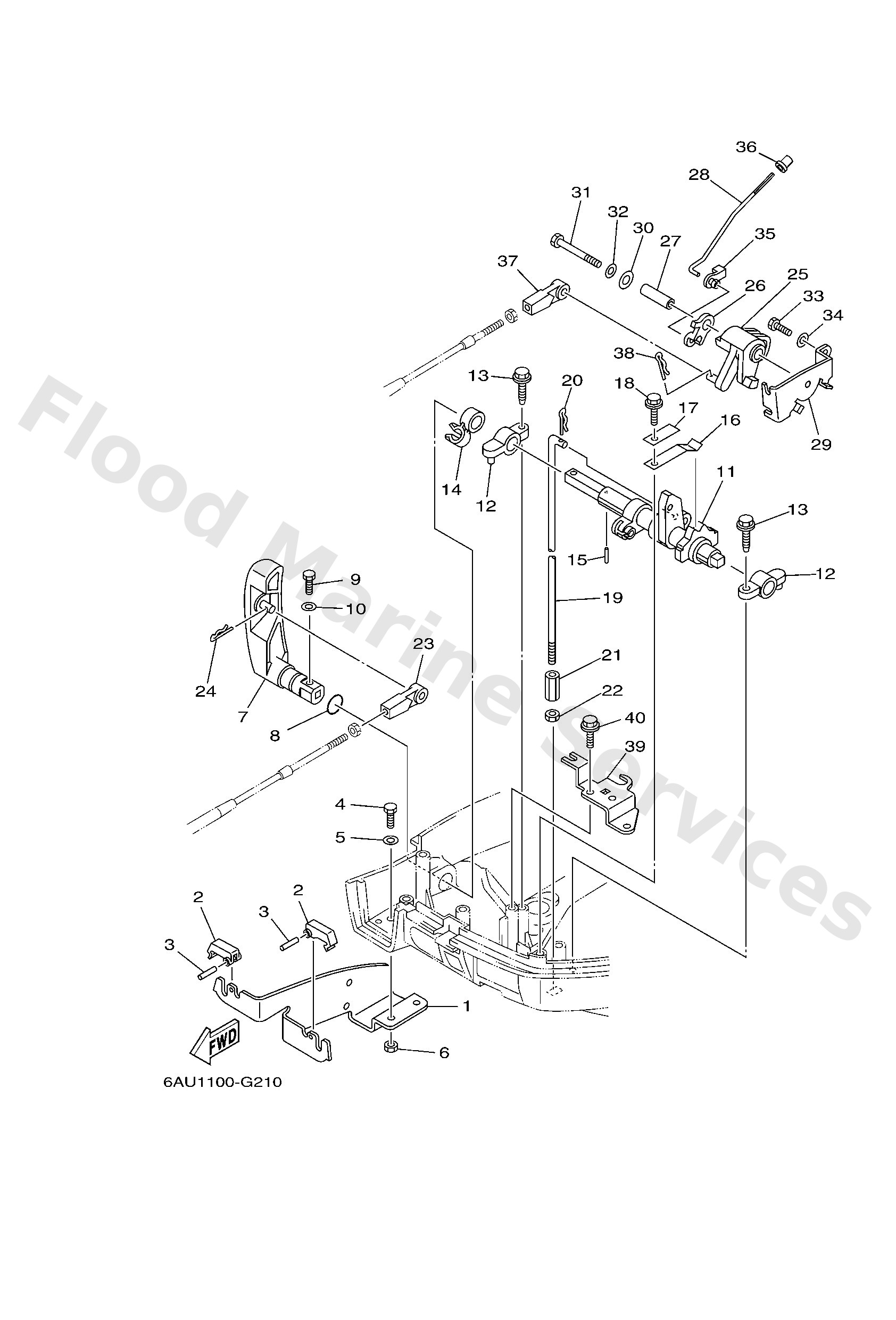

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
68T4853100
Bracket, remote control 1
Loading…
↗
2
6824853850
Clamp, cable
Loading…
↗
3
9169030012
Pin, spring
Loading…
↗
4
9709506012
Bolt(gh1)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
9538006600
Nut(661)
Loading…
↗
7
6AU4411110
Handle, gear shift
Loading…
↗
8
9321012327
O-ring(3ld)
Loading…
↗
9
9709505016
Bolt(6a1)
Loading…
↗
10
9299505600
Washer, plain (646)
Loading…
↗
11
68T4412102
Lever, shift rod
Loading…
↗
12
6G1416620194
Bracket
Loading…
↗
13
9010906M81
Bolt
Loading…
↗
14
9046410M60
Clamp
Loading…
↗
15
9169030014
Pin, spring (647)
Loading…
↗
16
65W4411600
Spring
Loading…
↗
17
66R4411400
Stopper
Loading…
↗
18
9010906M86
Bolt
Loading…
↗
19
68T4414300
S(16.9")
Rod, shift 1
Loading…
↗
19
68T4414310
L(21.9")
Rod, shift 1
Loading…
↗
20
9046818001
Clip
Loading…
↗
21
9017006015
Connector, shift rod
Loading…
↗
22
9538006700
Nut
Loading…
↗
23
6634834400
Cable end, remote control
Loading…
↗
24
9046818008
Clip 620436610000
Loading…
↗
25
68T4163800
Pulley
Loading…
↗
26
68T4128300
Lever, free accel.
Loading…
↗
27
9038706M59
Collar (6h3)
Loading…
↗
28
6AU4121100
Link, accel.
Loading…
↗
29
68T1449700
Stay, throttle wire
Loading…
↗
30
9020106M62
Washer, plate (6e5)
Loading…
↗
31
9709506045
Bolt, hexagon
Loading…
↗
35
6614126202
Joint, choke lever
Loading…
↗
36
6471439560
Cap,over flow pipe
Loading…
↗
39
68T1577410
Stay 4
Loading…
↗
