F9.9HWH1 (2017)
CONTROL 2

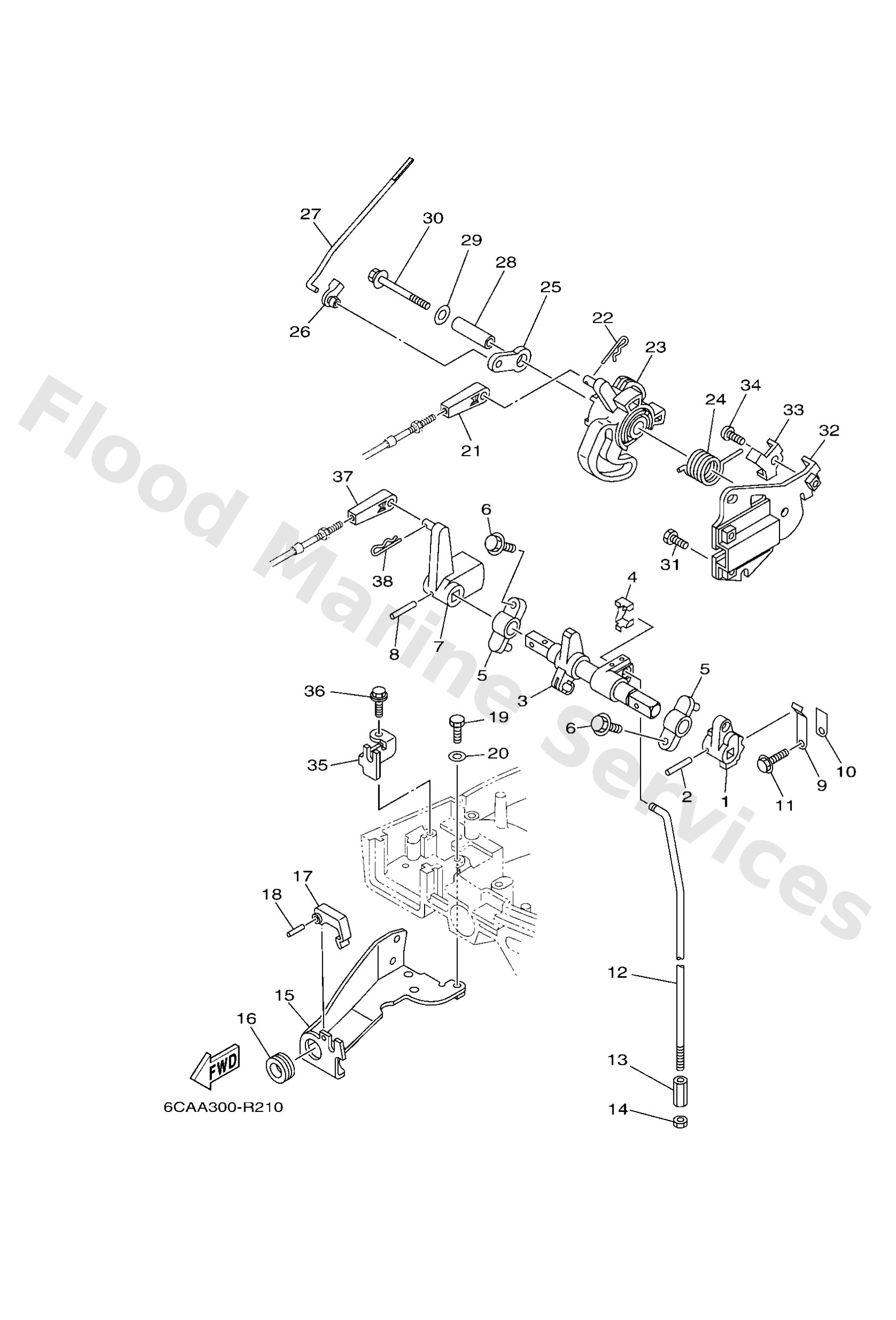

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
6AH4412300
Arm, shift rod
Loading…
↗
2
9025403M05
Pin, spring
Loading…
↗
3
6AH4412101
Lever, shift rod
Loading…
↗
4
6AH2636400
End, cable 2
Loading…
↗
5
6G1416620194
Bracket
Loading…
↗
6
9759506520
Bolt(7u8)
Loading…
↗
7
6AH4412500
Lever, shift rod
Loading…
↗
9
65W4411600
Spring
Loading…
↗
10
66R4411400
Stopper
Loading…
↗
11
9589506014
Bolt, flange deep recess
Loading…
↗
12
6AH4414300
S(17.1")
Rod, shift
Loading…
↗
12
6AH4414310
L(22.1")
Rod, shift
Loading…
↗
13
9017006015
Connector, shift rod
Loading…
↗
14
9538006700
Nut
Loading…
↗
15
6AH4853200
Bracket, remote control 2
Loading…
↗
16
9048019031
Grommet(75v)
Loading…
↗
17
6824853850
Clamp, cable
Loading…
↗
18
9169030012
Pin, spring
Loading…
↗
19
9709506014
Bolt(gj3)
Loading…
↗
20
9299506600
Washer, plain (646)
Loading…
↗
21
6FM4834400
Cable end, remote control
Loading…
↗
22
9046818008
Clip 620436610000
Loading…
↗
23
6AH4163800
Pulley
Loading…
↗
24
9050820M44
Spring, torsion
Loading…
↗
25
65W4128300
Lever, free accel.
Loading…
↗
26
6J84126200
Joint, choke lever
Loading…
↗
27
6AH4121100
Link, accel.
Loading…
↗
28
9038706139
Collar
Loading…
↗
29
9020106M31
Washer (6a0)
Loading…
↗
30
9759506555
Bolt, hexagon w/w deep recess
Loading…
↗
32
6AH1457110
Bracket, throttle
Loading…
↗
33
6AH4128200
Stopper, free accel. link
Loading…
↗
34
9014906069
Screw
Loading…
↗
35
6AH4853100
Bracket, remote control 1
Loading…
↗
36
9010906M86
Bolt
Loading…
↗
