Yamaha Outboard Parts - CONTROL 2 - FL200AET (2007) | Flood Marine

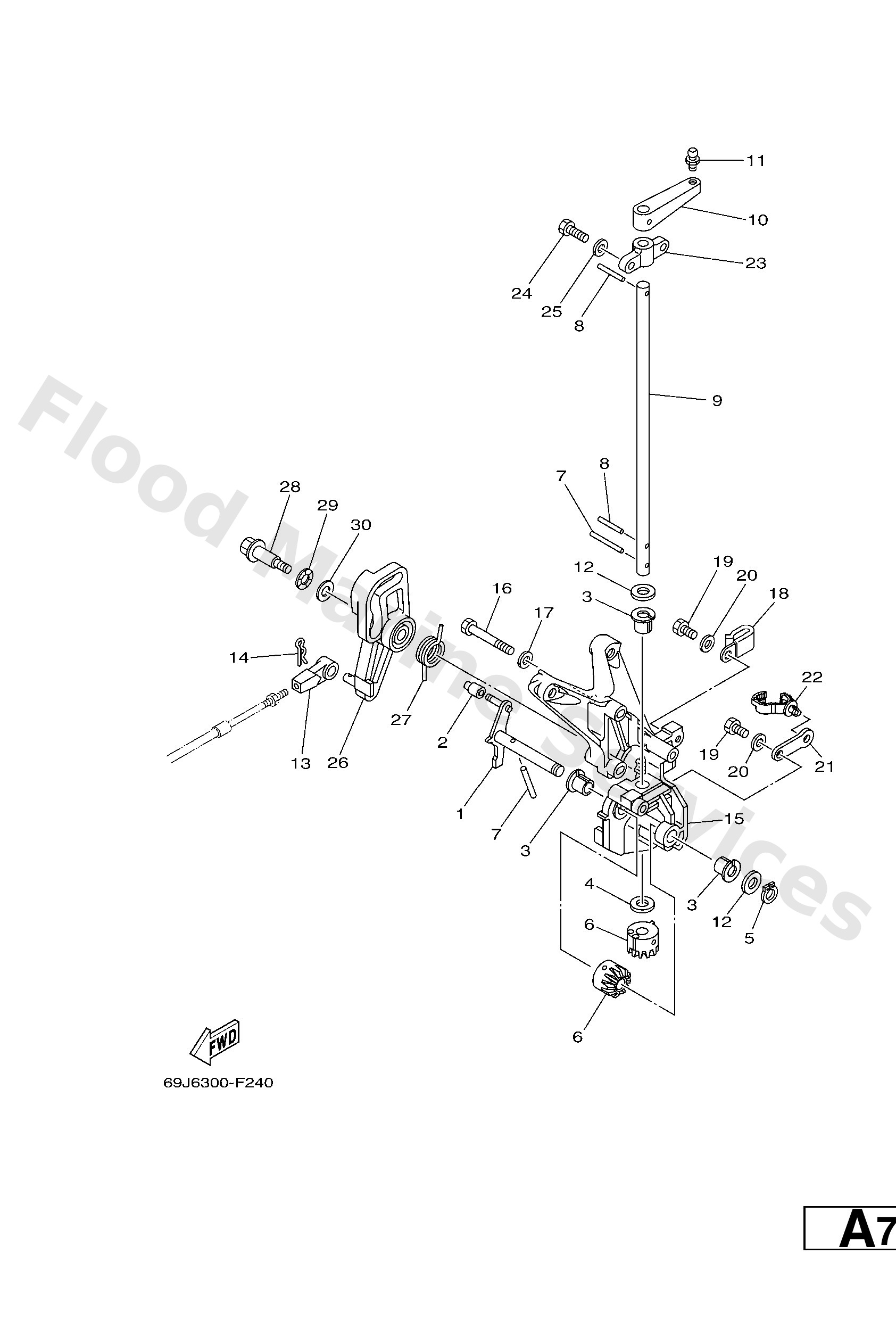

Diagram: CONTROL 2

Diagram

Parts List

Reference
Description
Price


1
69J4215400
Lever, throttle control
Loading…

↗
2
68V4217100
Bushing
Loading…

↗
3
9038610001
Bush
Loading…

↗
4
9020210002
Washer, plate
Loading…

↗
5
9341010082
Circlip
Loading…

↗
6
69J421520094
Gear
Loading…

↗
7
9169030025
Pin, spring
Loading…

↗
8
9169030018
926-51502-00 pin, spring (700)
Loading…

↗
9
69J4215300
Shaft, Throttle Control
Loading…

↗
10
69J416320094
Lever, magneto control
Loading…

↗
11
6638551800
Joint, ball
Loading…

↗
12
9020110M02
Washer, plate(6g9)
Loading…

↗
13
6E54834400
Cable end, remote control
Loading…

↗
14
9046818008
Clip 620436610000
Loading…

↗
15
69J416610094
Bracket
Loading…

↗
16
9709506045
Bolt, hexagon
Loading…

↗
17
9299506600
Washer, plain (646)
Loading…

↗
18
9046506M86
Clamp
Loading…

↗
19
9709506014
Bolt(gj3)
Loading…

↗
21
69J8258100
Stay, cord clamp
Loading…

↗
22
9046413249
Clamp
Loading…

↗
23
6764166200
Bracket 2
Loading…

↗
24
9709506020
Bolt(7u8)
Loading…

↗
26
69J4121302
Cam, accel.
Loading…

↗
27
69J4413500
Spring
Loading…

↗
28
9010906040
Bolt
Loading…

↗
29
9020610M04
Washer, wave (676)
Loading…

↗
