FT9.9LMH (2020)
CONTROL 2

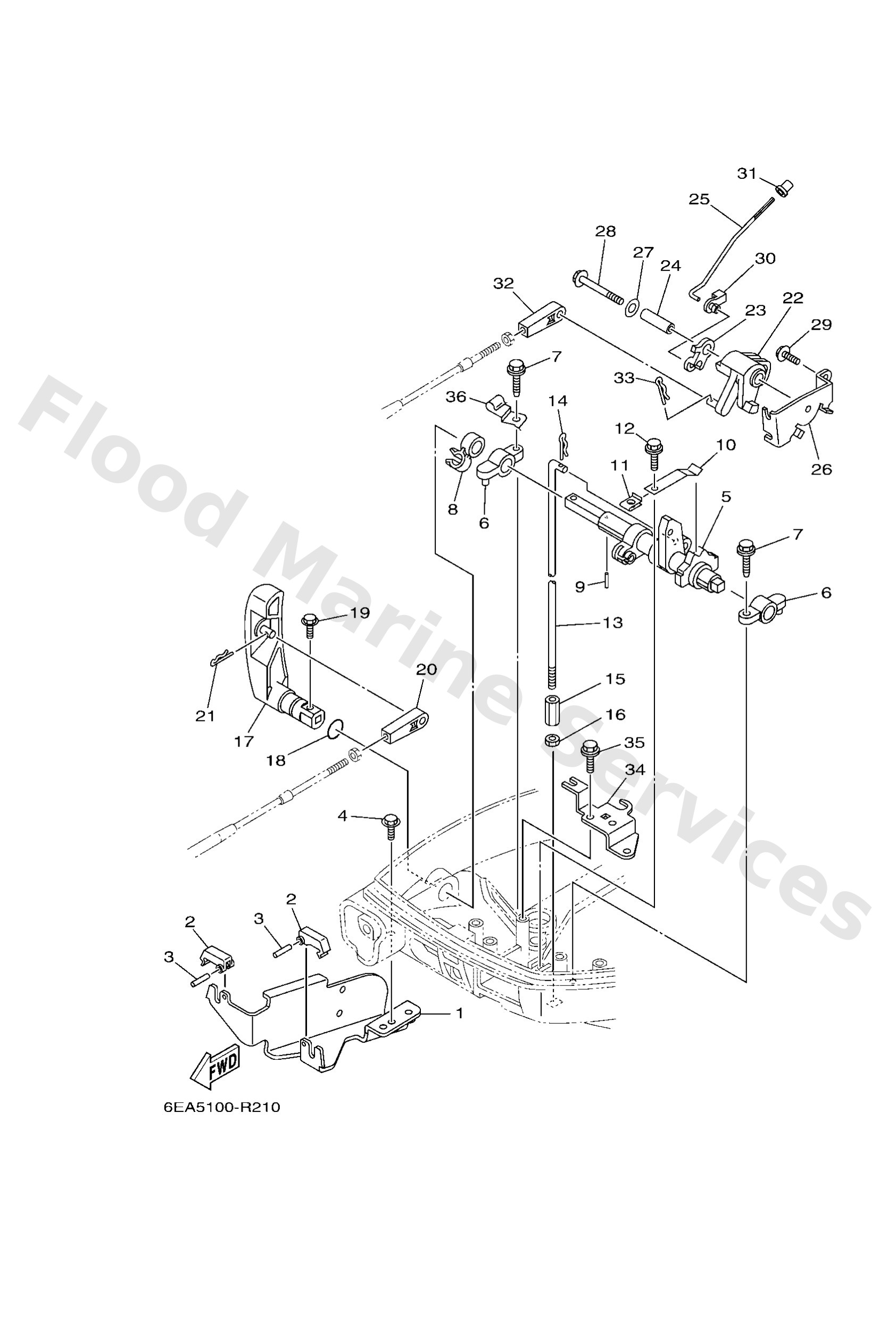

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
6DR4853101
Bracket, remote control 1
Loading…
↗
2
6824853850
Clamp, cable
Loading…
↗
3
9169030012
Pin, spring
Loading…
↗
4
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
5
68T4412103
Lever, shift rod
Loading…
↗
6
6G1416620194
Bracket
Loading…
↗
7
9010906M81
Bolt
Loading…
↗
8
9046410M60
Clamp
Loading…
↗
9
9169030014
Pin, spring (647)
Loading…
↗
10
65W4411600
Spring
Loading…
↗
11
6DR4411700
Bracket
Loading…
↗
12
9010906M86
Bolt
Loading…
↗
13
68T4414311
Rod, shift 1
Loading…
↗
14
9046818001
Clip
Loading…
↗
15
61N4414600
Connector, shift rod
Loading…
↗
16
9538006700
Nut
Loading…
↗
17
6AU4411110
Handle, gear shift
Loading…
↗
18
9321012327
O-ring(3ld)
Loading…
↗
19
9759505516
Bolt, with washer
Loading…
↗
20
6FM4834400
Cable end, remote control
Loading…
↗
21
9046818008
Clip 620436610000
Loading…
↗
22
68T4163800
Pulley
Loading…
↗
23
68T4128300
Lever, free accel.
Loading…
↗
24
9038706M59
Collar (6h3)
Loading…
↗
25
6AU4121100
Link, accel.
Loading…
↗
26
68T1449700
Stay, throttle wire
Loading…
↗
27
9020106M62
Washer, plate (6e5)
Loading…
↗
28
97E9506545
Bolt, hexagon w/w deep recess
Loading…
↗
30
6J84126200
Joint, choke lever
Loading…
↗
31
6471439560
Cap,over flow pipe
Loading…
↗
34
68T1577410
Stay 4
Loading…
↗
36
9046508027
Clamp
Loading…
↗
