FL200AET (2004)
CONTROL 3

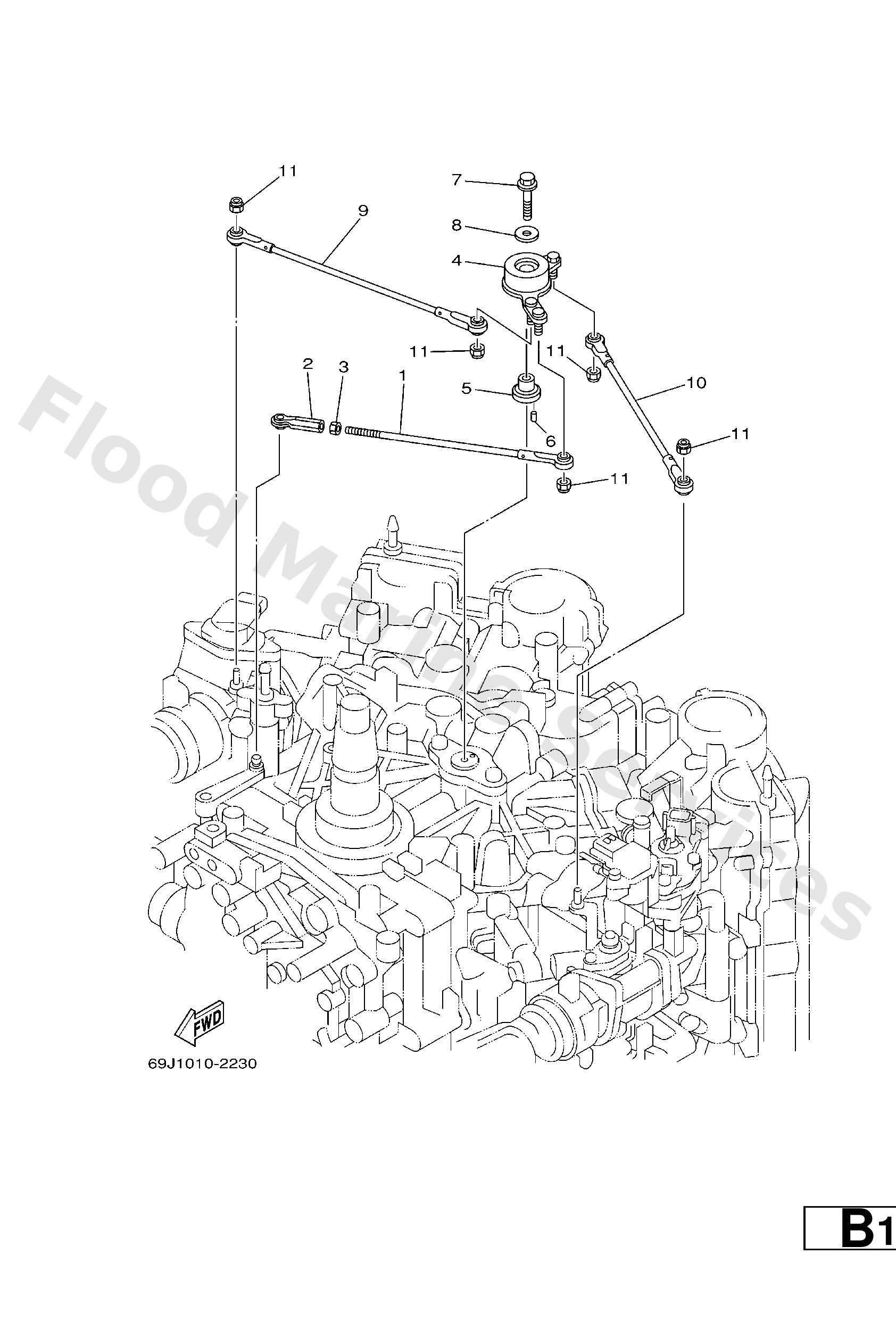

Diagram: CONTROL 3
Parts List
Reference
Description
Price
1
69J4124100
Rod, link
Loading…
↗
2
6824123700
Joint, link 2
Loading…
↗
3
9538005600
Nut, hexagon (663)
Loading…
↗
4
69J4121000
Accel. arm assembly
Loading…
↗
5
69J4163500
Shaft, link connecting
Loading…
↗
6
9169030008
Pin. spring(656)
Loading…
↗
7
9589506030
Bolt, flange deep recess
Loading…
↗
8
9020106M31
Washer (6a0)
Loading…
↗
9
69J4121100
Link, accel.
Loading…
↗
10
69J4163600
Rod, magneto control
Loading…
↗
11
9568005100
Nut, u (705)
Loading…
↗
