Rigging Parts (2006)
CONTROL 701 MANUAL PULL

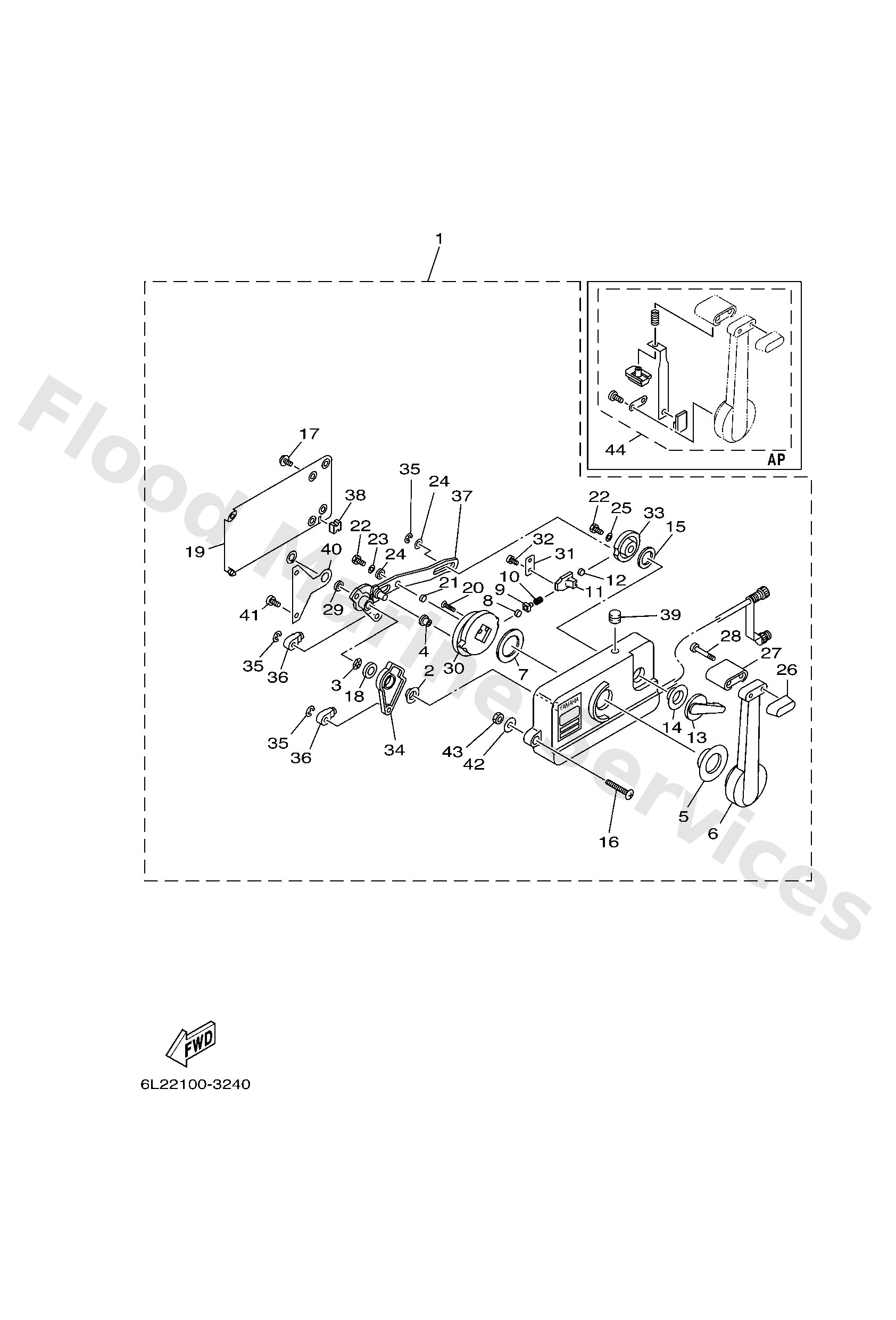

Diagram: CONTROL 701 MANUAL PULL
Parts List
Reference
Description
Price
1
7014810151
Remote control assembly
Loading…
↗
2
7014823500
Bushing 2
Loading…
↗
3
7014819710
Washer, wave 2
Loading…
↗
4
7014825200
Roller, cam
Loading…
↗
5
7014823400
Bushing 1
Loading…
↗
6
7014822100
Lever, control
Loading…
↗
7
7014819611
Washer, wave 1
Loading…
↗
8
7014823600
Roller, detent
Loading…
↗
9
7024823700
Adaptor
Loading…
↗
10
7024823800
Spring, Detent
Loading…
↗
11
7014824900
Spring, adapter
Loading…
↗
12
7014824800
Roller, free accel
Loading…
↗
13
7014815211
Knob, free accel
Loading…
↗
14
7014824300
Bushing
Loading…
↗
15
7014819810
Washer, wave 3
Loading…
↗
16
7014828110
Screw 1(m6x40)
Loading…
↗
17
7014828900
Screw, pan head(62x)
Loading…
↗
18
7014826800
Spacer 3
Loading…
↗
19
7014821300
Back, plate
Loading…
↗
20
9278006025
Screw flat head
Loading…
↗
21
7014825500
Coller 1
Loading…
↗
22
9739006018
Bolt (fj0)
Loading…
↗
23
7024828800
Washer, Plain
Loading…
↗
24
7014824600
Spacer
Loading…
↗
25
9299006300
Washer, tooth
Loading…
↗
26
7014822900
Grip, control lever 2
Loading…
↗
27
7014822200
Grip, control lever
Loading…
↗
28
7014828200
Screw, pan head
Loading…
↗
29
7014826600
Spacer 2
Loading…
↗
30
7014823200
Gear 1
Loading…
↗
31
7014818911
Retainer
Loading…
↗
32
9858005010
Screw, pan head(62x)
Loading…
↗
33
7014815312
Shaft, free accel
Loading…
↗
34
7014827100
Arm, shift
Loading…
↗
35
9343006024
Circlip (701)
Loading…
↗
36
7034834501
Cable end, remote control 2
Loading…
↗
37
7014826100
Arm, throttle
Loading…
↗
38
7014835800
Anchor, cable
Loading…
↗
39
7014813850
Grommet (701 remo-con)
Loading…
↗
40
7014813300
Plate, Link
Loading…
↗
41
9858005020
Screw, pan head (e22)
Loading…
↗
42
7014828700
Washer 1
Loading…
↗
43
9538006600
Nut(661)
Loading…
↗
44
7014828000
AP
Neutral lock kit
