Rigging Parts (2006)
CONTROL BINNACLE PREMIUM SINGLE

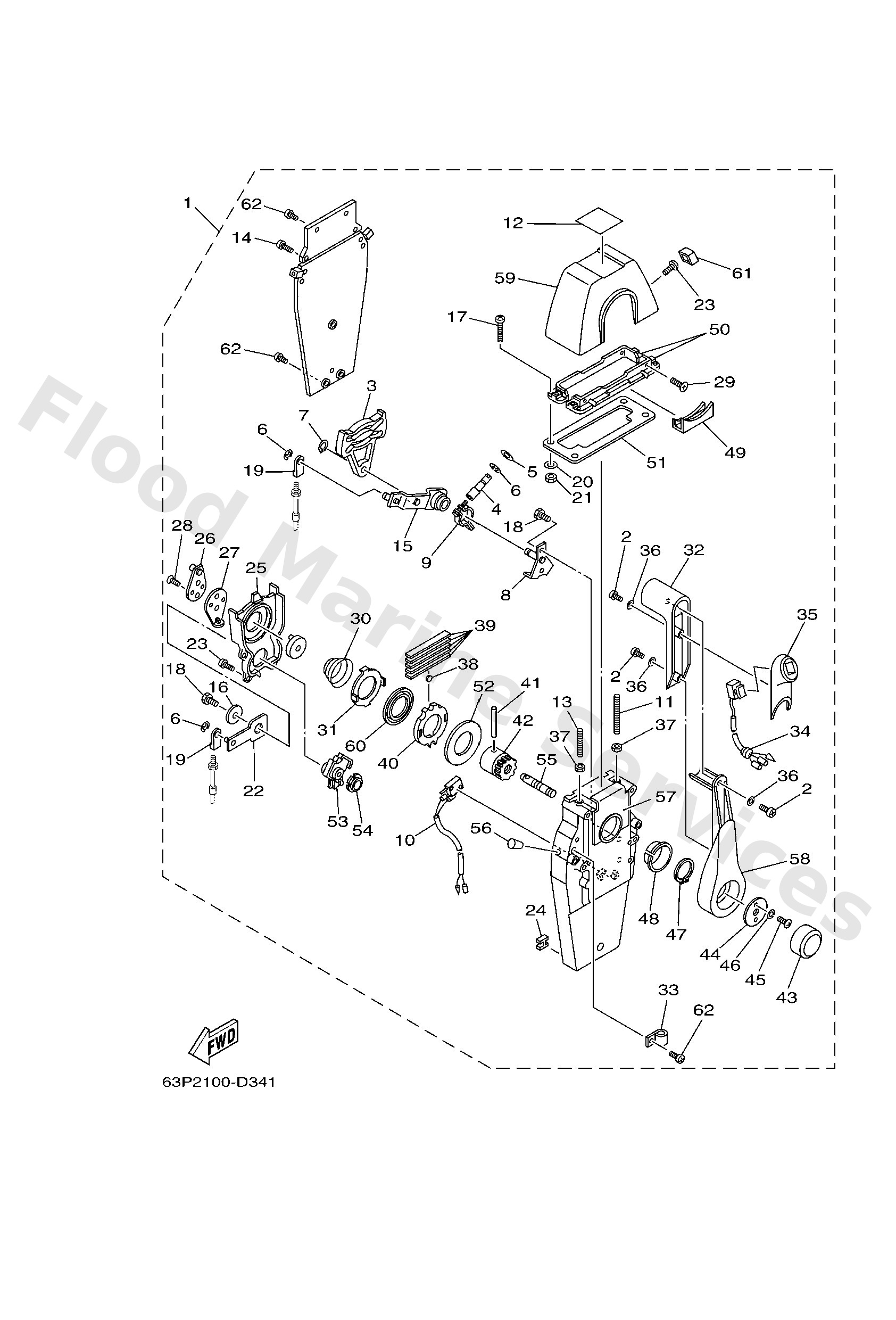

Diagram: CONTROL BINNACLE PREMIUM SINGLE
Parts List
Reference
Description
Price
1
70448205P0
WITH PT/T SW.
704 single top mount (mec rc)
Loading…
↗
2
7044812800
Screw, pan head
Loading…
↗
3
EL84825100
Plate, cam
Loading…
↗
4
7044826500
Shaft, friction
Loading…
↗
5
7014824600
Spacer
Loading…
↗
6
9343006024
Circlip (701)
Loading…
↗
7
EL84825900
Circlip 1
Loading…
↗
8
7044826200
Shaft, throttle
Loading…
↗
9
7044826400
Friction, throttle
Loading…
↗
10
7048254020
Neutral switch assembly
Loading…
↗
11
EL84828100
Screw
Loading…
↗
12
7044821520
Graphic
Loading…
↗
13
7044828100
Screw1
Loading…
↗
14
9789005025
Screw, panhead (a93)
Loading…
↗
15
7044826100
Arm, throttle
Loading…
↗
16
EL84819100
Washer 1
Loading…
↗
17
7044828300
Screw,panhead (eg9)
Loading…
↗
18
9738006018
Bolt (fj0)
Loading…
↗
19
7034834501
Cable end, remote control 2
Loading…
↗
20
7044828700
Washer 1
Loading…
↗
21
9538005600
Nut, hexagon (663)
Loading…
↗
22
7044827100
Arm, shift
Loading…
↗
23
EL84812700
Screw 1
Loading…
↗
24
7034835800
Anchor, cable
Loading…
↗
25
7044823100
Housing, gear
Loading…
↗
26
EL84824100
Arm, drive
Loading…
↗
27
EL84825400
-
Loading…
↗
28
9278006020
Screw flat head
Loading…
↗
29
9878005018
Screw (704)
Loading…
↗
30
EL84824400
Spring, free accel.
Loading…
↗
31
EL84824500
Plate, lock
Loading…
↗
32
70448222P0
Grip, control lever
Loading…
↗
33
7048259400
Clamp
Loading…
↗
34
7048256340
Trim & tilt switch assembly
Loading…
↗
35
70448229P1
Grip, control lever
Loading…
↗
36
9299005300
Washer, tooth
Loading…
↗
37
9538006600
Nut(661)
Loading…
↗
38
7014824800
Roller, free accel
Loading…
↗
39
7044823800
Spring, detent
Loading…
↗
40
70448232P1
Gear
Loading…
↗
41
EL84816400
Pin 2
Loading…
↗
42
7044824210
Shaft, drive
Loading…
↗
43
6X34822520
Cover
Loading…
↗
44
7044819200
Washer 2
Loading…
↗
45
9789006018
Screw, pan head(6e5)
Loading…
↗
46
9299006300
Washer, tooth
Loading…
↗
47
EL84827900
Circlip 2
Loading…
↗
48
7044823400
Bushing 1
Loading…
↗
49
70448219P0
Cover, lead
Loading…
↗
50
7044814410
Plate, stopper 2
Loading…
↗
51
7044817600
Grommet
Loading…
↗
52
70448192P0
Washer 2
Loading…
↗
53
7044823300
Gear 2
Loading…
↗
54
7044823500
Bushing
Loading…
↗
55
7044815300
Shaft, free accel.
Loading…
↗
56
7044816600
Plug
Loading…
↗
57
70448284P0
Grommet
Loading…
↗
58
70448221P0
Lever, control
Loading…
↗
59
7044811930
Cover
Loading…
↗
60
7044817810
Plate, shift
Loading…
↗
61
7044816700
Plug
Loading…
↗
62
9789005016
Screw, pan head(6b0)
Loading…
↗
