Rigging Parts (2007)
CONTROL FLUSH STANDARD

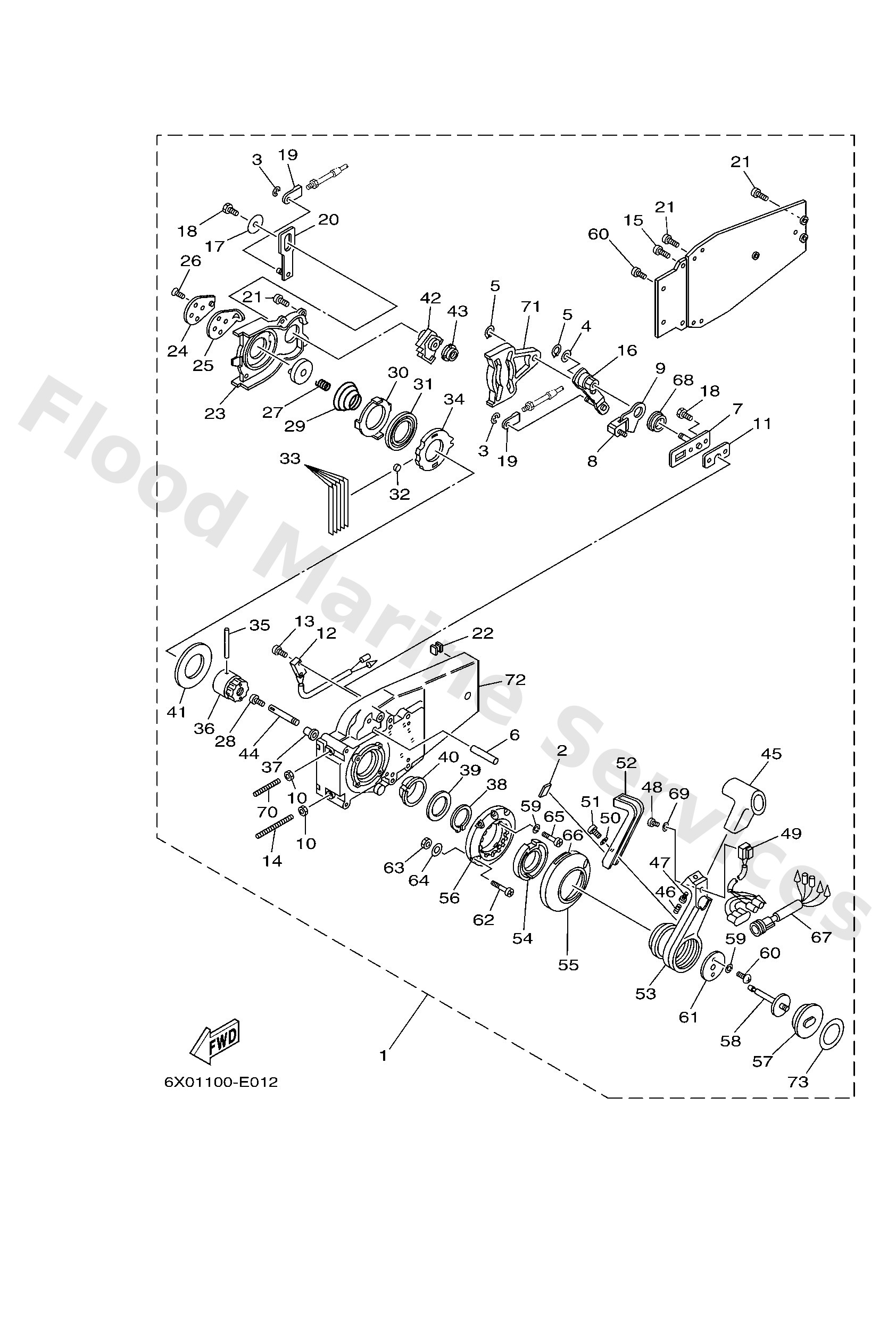

Diagram: CONTROL FLUSH STANDARD
Parts List
Reference
Description
Price
1
6X04820612
WITH PT/T SW.
Remote Control assembly
Loading…
↗
2
6X04813800
Cap, lock arm
Loading…
↗
3
9343006024
Circlip (701)
Loading…
↗
4
9299010600
Washer, plate
Loading…
↗
5
EL84825900
Circlip 1
Loading…
↗
6
6X04826500
Shaft, friction
Loading…
↗
7
6X04826200
-
Loading…
↗
8
6X04826400
Throttle, friction
Loading…
↗
9
6X04818700
Plate, adjust
Loading…
↗
10
9538006600
Nut(661)
Loading…
↗
11
7044826600
Spacer 2
Loading…
↗
12
7048254000
Neutral switch assembly
Loading…
↗
13
9858003015
Screw, pan head (n151)
Loading…
↗
14
7044828100
Screw1
Loading…
↗
15
9789005025
Screw, panhead (a93)
Loading…
↗
16
6X04826100
-
Loading…
↗
17
EL84819100
Washer 1
Loading…
↗
18
9738006018
Bolt (fj0)
Loading…
↗
19
7034834501
Cable end, remote control 2
Loading…
↗
20
EL84827100
Arm, shift
Loading…
↗
21
EL84812700
Screw 1
Loading…
↗
22
7034835800
Anchor, cable
Loading…
↗
23
EL84823100
Housing, gear
Loading…
↗
24
EL84824100
Arm, drive
Loading…
↗
25
EL84825400
-
Loading…
↗
26
9278006020
Screw flat head
Loading…
↗
27
EL84815800
Spring 1
Loading…
↗
28
9858004006
Screw, pan head (7h3)
Loading…
↗
29
EL84824400
Spring, free accel.
Loading…
↗
30
EL84824500
Plate, lock
Loading…
↗
31
7044817800
Plate, shift
Loading…
↗
32
7014824800
Roller, free accel
Loading…
↗
33
7044823800
Spring, detent
Loading…
↗
34
6X04812100
Gear 1
Loading…
↗
35
EL84816400
Pin 2
Loading…
↗
36
EL84824210
Shaft, Drive
Loading…
↗
37
7024826300
Bushing 4
Loading…
↗
38
EL84827900
Circlip 2
Loading…
↗
39
7044819300
Washer 3
Loading…
↗
40
EL84823400
Bushing 1
Loading…
↗
41
7034819200
Washer 2
Loading…
↗
42
EL84823300
Gear 2
Loading…
↗
43
7024823500
Bushing
Loading…
↗
44
6X04815300
Shaft, Free Accel.
Loading…
↗
45
6X04822200
Grip, control lever
Loading…
↗
46
7034822700
Spring, neutral lock
Loading…
↗
47
9858005008
Screw, pan head (7g3)
Loading…
↗
48
9858004010
Screw, pan head (e56)
Loading…
↗
49
6X08256301
Trim & tilt switch assembly
Loading…
↗
50
6X04828800
Washer
Loading…
↗
51
6X04812700
Screw 1
Loading…
↗
52
6X04822300
Lock, neutral
Loading…
↗
53
6X04822100
Lever, control
Loading…
↗
54
6X04824500
Plate, lock
Loading…
↗
55
6X04822500
Cover
Loading…
↗
56
6X04811100
Body, remote control 1
Loading…
↗
57
7044822500
Cover
Loading…
↗
58
6X04815500
Plunger
Loading…
↗
59
9299005300
Washer, tooth
Loading…
↗
60
6X04828100
Screw
Loading…
↗
61
6X04819300
Washer 3
Loading…
↗
62
6X04812800
UR
Screw 2
Loading…
↗
62
9789006035
UR
Screw, pan head(6h4)
Loading…
↗
63
6X04815600
Nut 1
Loading…
↗
64
7014828700
Washer 1
Loading…
↗
65
6X04812900
-
Loading…
↗
66
6E04419111
Indicator, shift
Loading…
↗
67
7048254110
Extension, wire lead
Loading…
↗
68
6X04811600
Bushing
Loading…
↗
69
9299004300
Washer(6k8)
Loading…
↗
70
EL84828100
Screw
Loading…
↗
71
EL84825100
Plate, cam
Loading…
↗
72
6X04821100
Housing,1
Loading…
↗
73
6X04821500
Graphic
Loading…
↗
