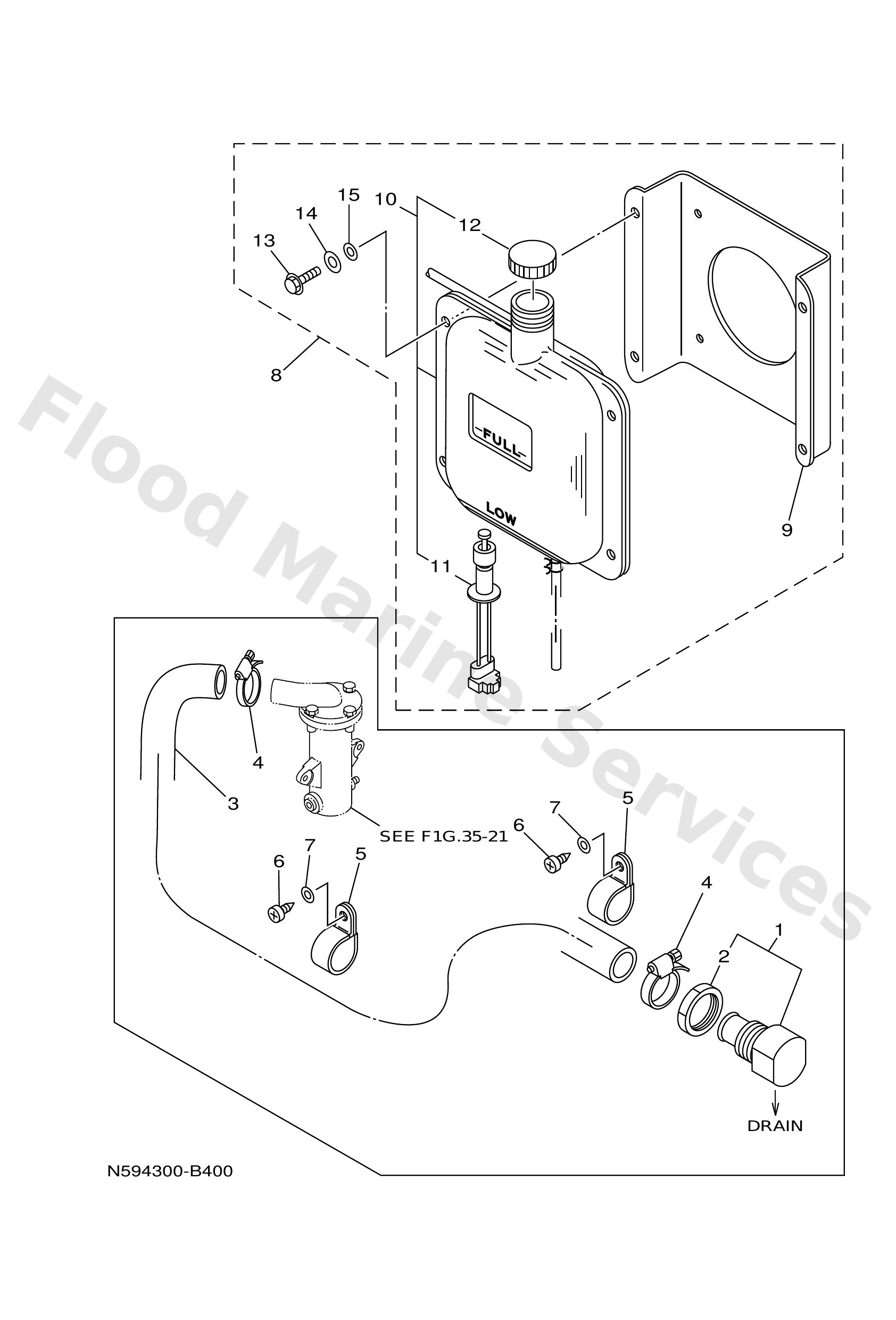

Diagram: COOLING (RESERVE TANK)

Diagram

Parts List

Reference
Description
Price


1
N157615000
Joint assembly
Loading…

↗
4
9045054M00
Hose clamp assembly(6tc)
Loading…

↗
5
9046114098
Clamp (71a)
Loading…

↗
6
9778050116
Screw, pan head tapping (ak5)
Loading…

↗
7
90201056G0
Washer, plate
Loading…

↗
8
7127617000
Reserve tank ass'y
Loading…

↗
9
7127617100
Bracket,Reserve Tank
Loading…

↗
10
7127617200
Tank, reserve
Loading…

↗
11
7128360700
Water level sw assembly
Loading…

↗
12
7127617300
Cap, reservoir tank
Loading…

↗
13
3 HOSE (L=3000) 1
-
Loading…

↗
13
9580710025
Bolt, flange(3gd)
Loading…

↗
14
2 NUT 1
N64-83510-00
Loading…

↗
14
9020110141
Washer, plate (3j6)
Loading…

↗
15
9043011183
Gasket (712)
Loading…

↗
