3AMH (2005)
COWLING & FUEL

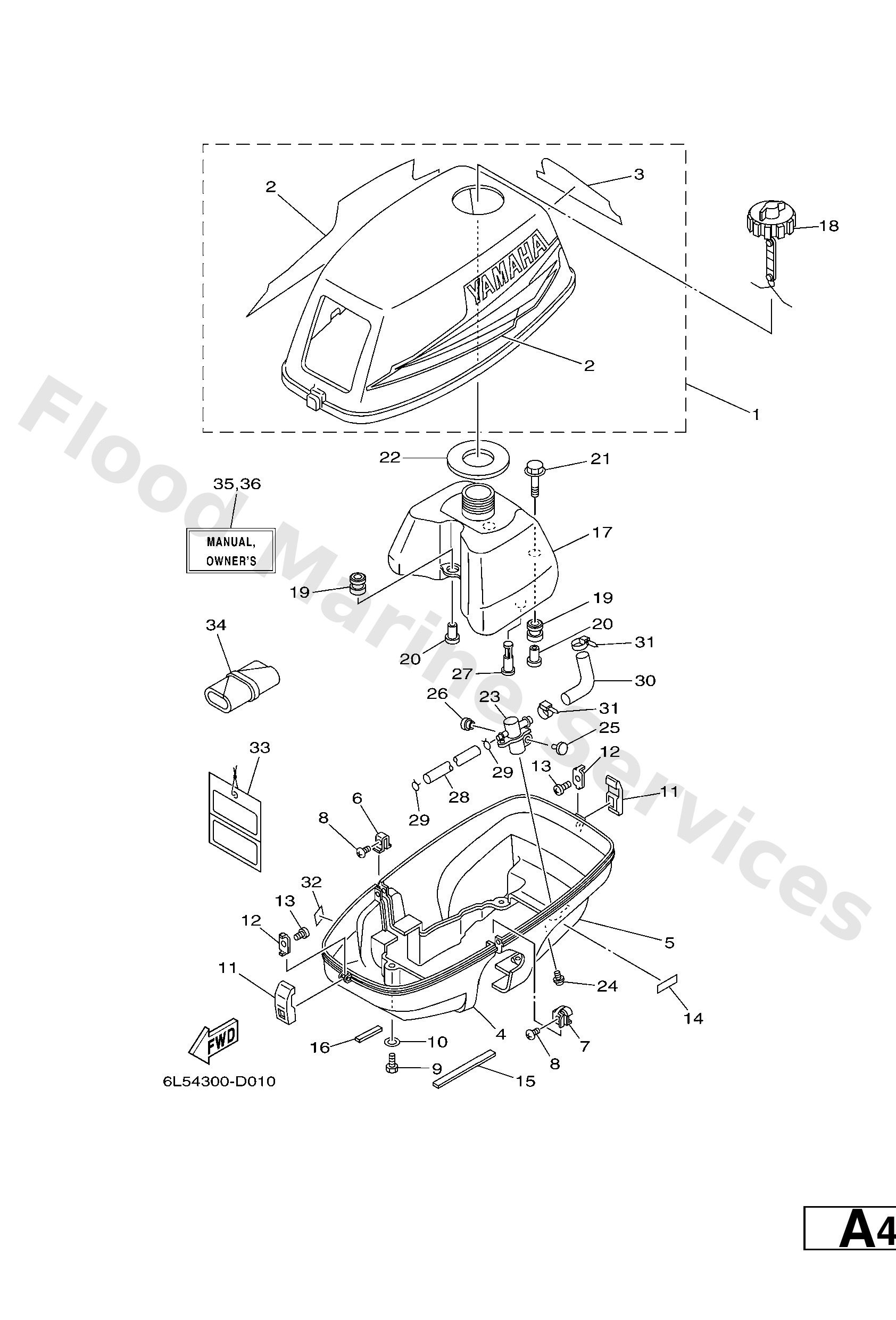

Diagram: COWLING & FUEL
Parts List
Reference
Description
Price
1
6L542610134D
Top Cowling assembly
Loading…
↗
2
6L5W007013
Graphic Set
Loading…
↗
3
6L54267812
Graphic, rear
Loading…
↗
4
6L54271111
Cowling, bottom
Loading…
↗
5
6L54271212
Cowling, bottom
Loading…
↗
6
6L54277400
Stay, apron 1
Loading…
↗
7
6L54277500
Stay, apron 2
Loading…
↗
8
9788005010
Screw, pan head(62x)
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
6L54264700
Holder, clamp band
Loading…
↗
12
6L54282300
Plate, stop
Loading…
↗
13
9016703M02
Screw, tapping(6l5)
Loading…
↗
14
6L52459100
Emblem, Fuel Cock
Loading…
↗
15
6L54266200
Damper
Loading…
↗
16
6L54266300
Damper
Loading…
↗
17
6L52411102
Tank, fuel
Loading…
↗
18
6L52461000
Cap assembly
Loading…
↗
19
6A08231700
Damper, ignition coil
Loading…
↗
20
6244254200
Collar
Loading…
↗
21
9011906M65
Bolt, with washer
Loading…
↗
22
6L52464100
Gasket, cap 1
Loading…
↗
23
6L52450060
Fuel cock assembly 1
Loading…
↗
24
9015906M10
Screw, with washer(6l5)
Loading…
↗
25
6L54419600
Indicator 3
Loading…
↗
26
6L54419700
Indicator 4
Loading…
↗
27
6L52425100
Strainer 1
Loading…
↗
28
6L52431100
Pipe, fuel 2
Loading…
↗
29
9046708004
Clip, pipe 6162435600
Loading…
↗
30
6L52431200
Pipe 2
Loading…
↗
31
9046513M11
Clamp (6e5)
Loading…
↗
32
6A12817600
Label, Caution
Loading…
↗
33
61H2819R31
-
Loading…
↗
34
656W281002
Tool kit
Loading…
↗
35
6L52819970F0
UR (F)
3a
Loading…
↗
35
6L52819970H0
UR (I)
3a
Loading…
↗
35
6L52819970D0
UR (NL)
3a
Loading…
↗
35
6L52819970G0
UR (D)
3a
Loading…
↗
35
6L52819970S0
UR (ES)
3a
Loading…
↗
35
6L52819970E0
UR (E)
3a
Loading…
↗
36
6L52819980K0
UR (DK)
3a
Loading…
↗
36
6L52819980R0
UR (GR)
3a
Loading…
↗
36
6L52819980P0
UR (P)
3a
Loading…
↗
36
6L52819980N0
UR (N)
3a
Loading…
↗
36
6L52819980M0
UR (S)
3a
Loading…
↗
36
6L52819980L0
UR (SF)
3a
Loading…
↗
