15FMH (2019)
CRANKSHAFT & PISTON

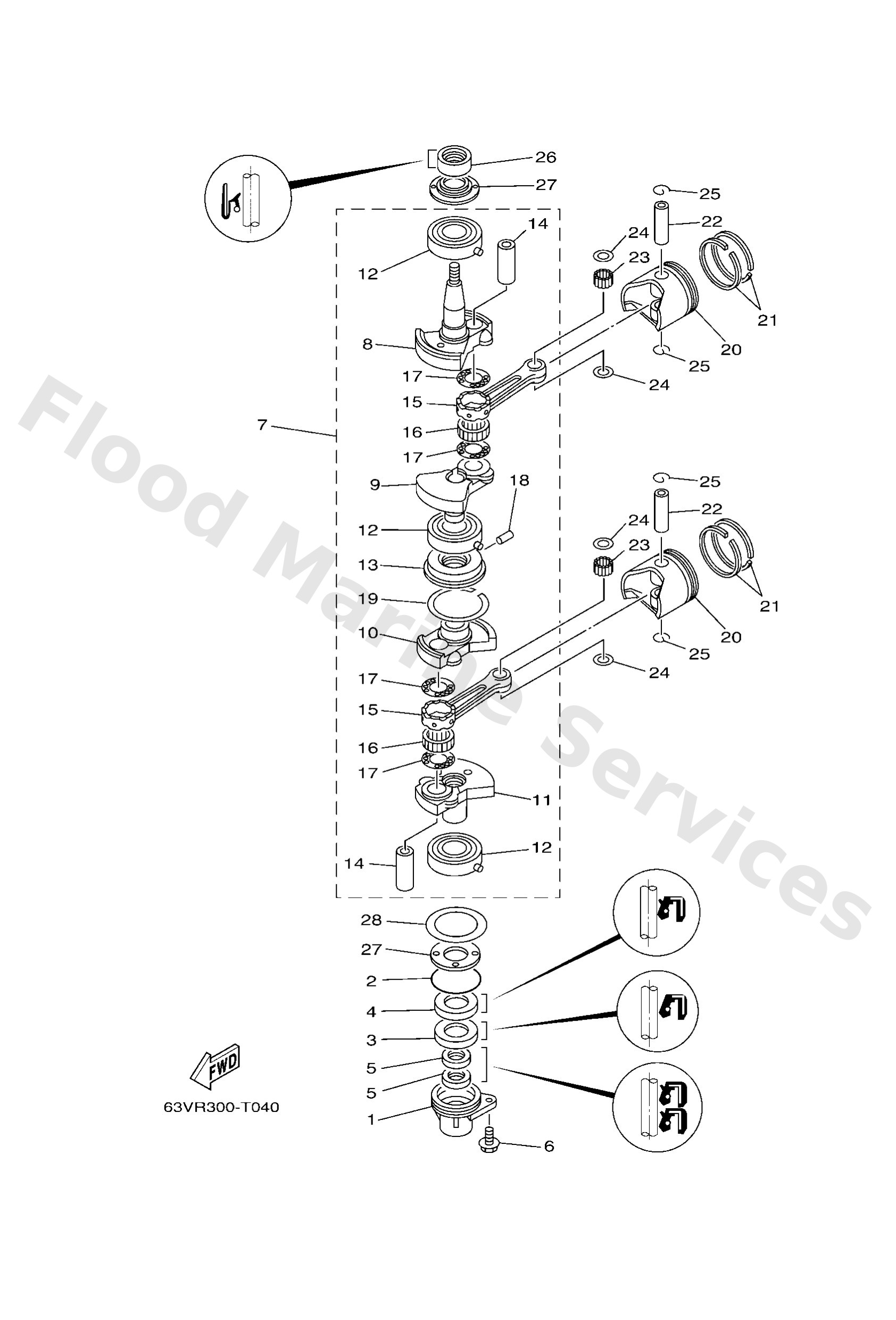

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
63V1539601CA
Housing, oil seal
Loading…
↗
2
9321046M16
O-ring (688)
Loading…
↗
3
9310125018
Oil seal
Loading…
↗
4
9310225M48
Oil seal(63v)
Loading…
↗
5
9310113018
Oil seal
Loading…
↗
6
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
7
63V1140002
Crankshaft assembly
Loading…
↗
8
63V1141200
Crank 1
Loading…
↗
9
63V1142200
Crank 2
Loading…
↗
10
63V1143200
Crank 3
Loading…
↗
11
63V1144200
Crank 4
Loading…
↗
12
93306205U7
Bearing(63v)
Loading…
↗
13
63V1151502
Seal, labyrinth 1
Loading…
↗
14
6821168100
Pin crank
Loading…
↗
15
6K41165100
Rod, connecting
Loading…
↗
16
93310620V5
Bearing, big end (682)
Loading…
↗
17
9020920M23
Washer, crank pin (1h9)
Loading…
↗
18
9160920008
Pin, spring
Loading…
↗
19
9344052009
Circlip (168)
Loading…
↗
20
6E7116310097
Piston (std)
Loading…
↗
20
6E71163500
AP
Piston (1st o.s)
Loading…
↗
20
6E71163600
AP
Piston (2nd o.s)
Loading…
↗
21
6821161001
Piston ring set (std)
Loading…
↗
21
6821161011
AP
Piston ring set (1st o/s)
Loading…
↗
21
6821161021
AP
Piston ring set (2nd o/s)
Loading…
↗
22
6341163300
Pin, piston
Loading…
↗
23
9360214104
Pin, dowel
Loading…
↗
24
9020114377
Washer, plate
Loading…
↗
25
9345015023
Circlip 131116340000
Loading…
↗
26
9311023M00
Oil seal (682)
Loading…
↗
27
63V1144500
Spacer
Loading…
↗
28
9020146M29
Washer, plate(63v)
Loading…
↗
