30DMHO (2006)
CRANKSHAFT & PISTON

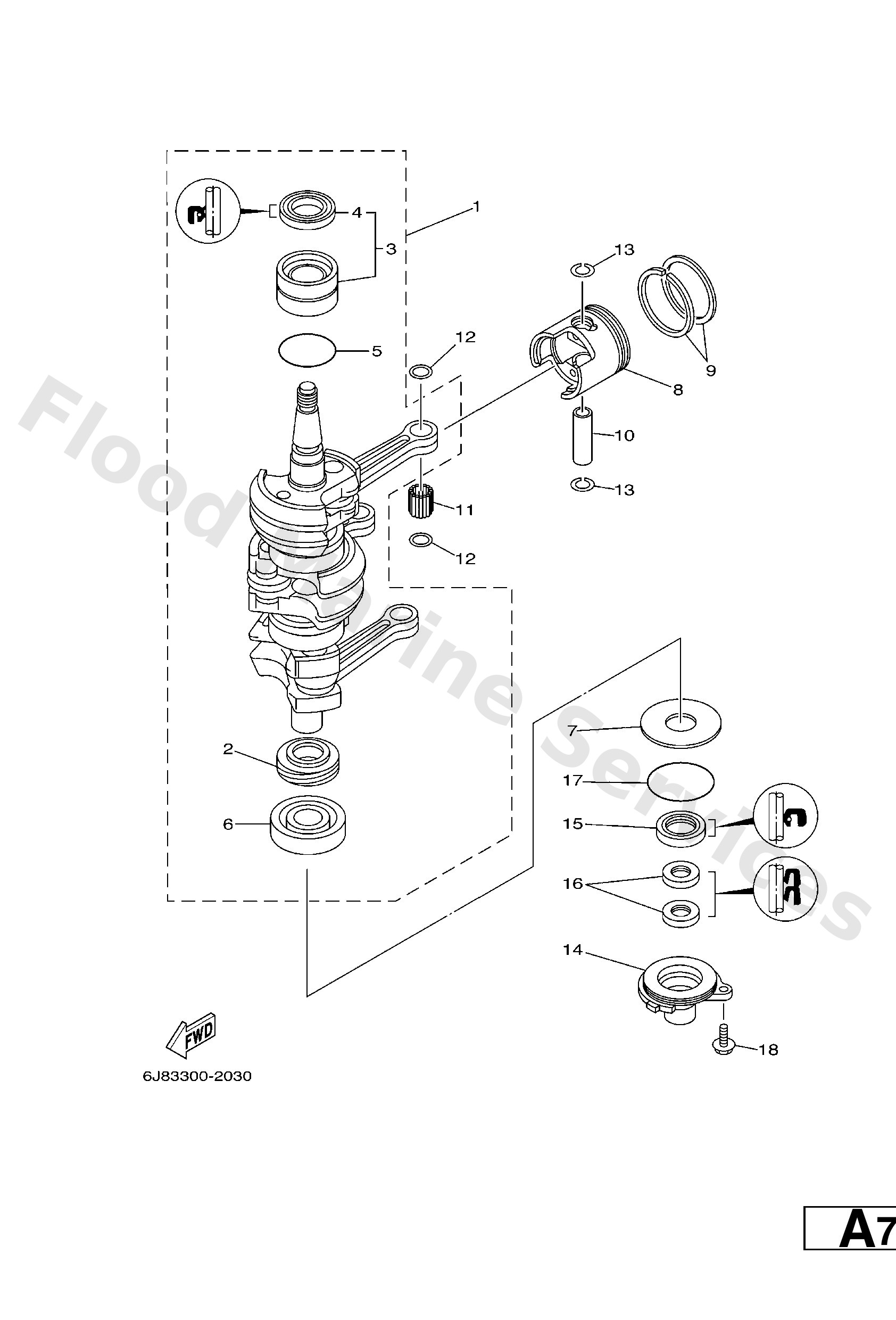

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6J81140011
Crankshaft assembly
Loading…
↗
2
6J81153600
Gear, drive
Loading…
↗
3
93311632U7
Bearing, cylindrical(6j8)
Loading…
↗
4
9310226M27
Oil seal(6j8)
Loading…
↗
5
9321042159
O-ring (647)
Loading…
↗
6
93306305U3
Bearing(6j8)
Loading…
↗
7
9020150306
Washer plate 648115870000
Loading…
↗
8
6J8116310297
Piston (std)
Loading…
↗
8
6J81163502
AP
Piston (0.25mm o/s)
Loading…
↗
8
6J81163602
AP
Piston (0.50mm o/s)
Loading…
↗
9
6J81160111
AP
Piston ring set (1st o/s)
Loading…
↗
9
6J81160121
AP
Piston ring set (2nd o/s)
Loading…
↗
9
6J81160101
Piston ring set (std)
Loading…
↗
10
6J81163300
Pin, piston
Loading…
↗
11
9360216M10
Pin, dowel(6j8)
Loading…
↗
12
9020116379
Washer plate
Loading…
↗
13
9345017129
Circlip(1ar)
Loading…
↗
14
6J815396005B
Housing, oil seal
Loading…
↗
15
9310125M28
Oil seal(6j8)
Loading…
↗
16
9310416M04
Oil seal(6a8)
Loading…
↗
17
9321056M80
O-ring(6j8)
Loading…
↗
18
9011906023
Bolt, with washer
Loading…
↗
