30HW (2012)
CRANKSHAFT & PISTON

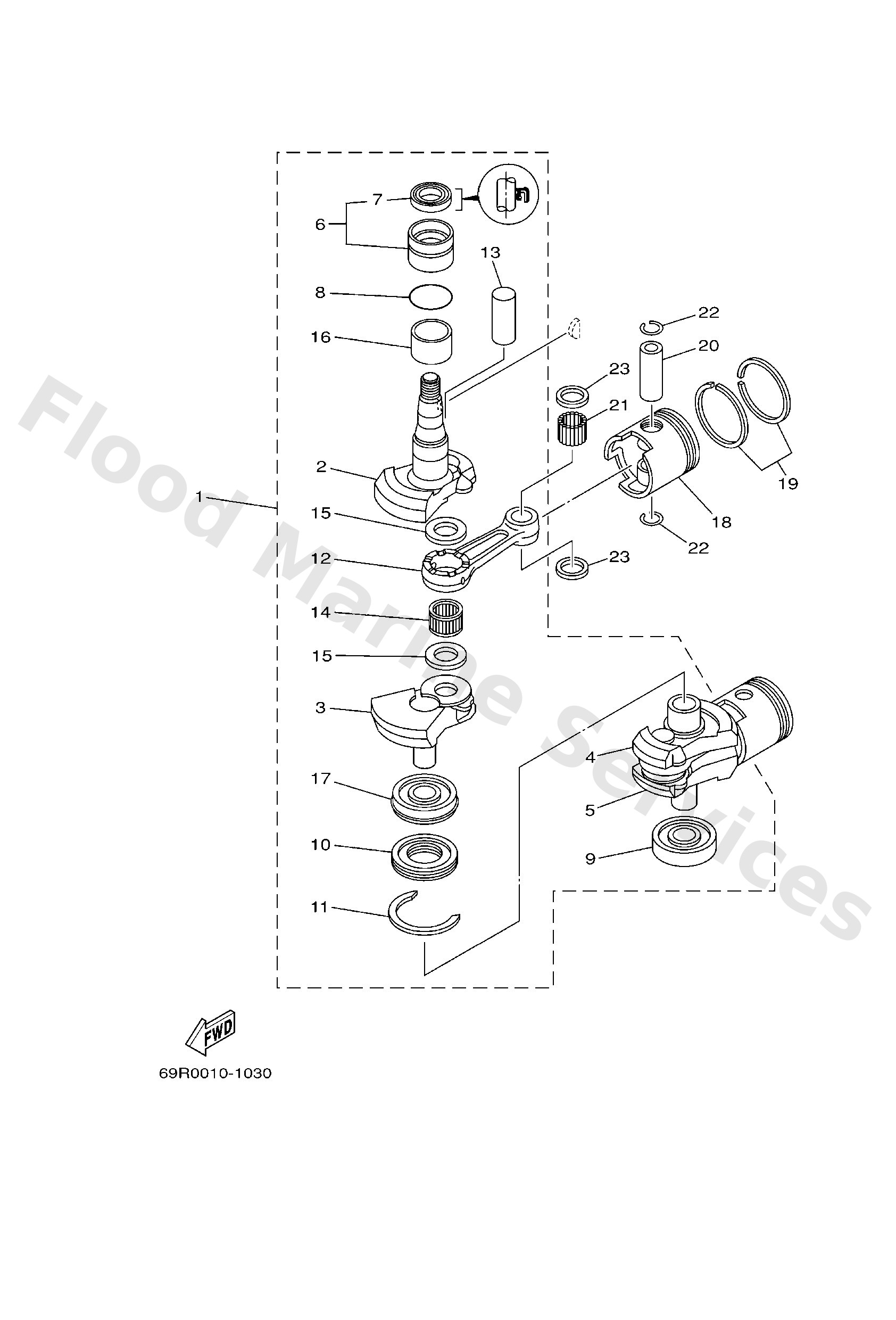

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
69P1140000
Crankshaft assembly
Loading…
↗
2
69P1141200
Crank 1
Loading…
↗
3
61N1142200
Crank 2
Loading…
↗
4
61N1143200
Crank 3
Loading…
↗
5
61N1144200
Crank 4
Loading…
↗
6
9339999951
Bearing
Loading…
↗
7
9310232M07
Oil seal (697)
Loading…
↗
8
9321046M16
O-ring (688)
Loading…
↗
9
93306305U3
Bearing(6j8)
Loading…
↗
10
61N1151500
Seal, labyrinth 1
Loading…
↗
11
9344062057
Cir clip (656)
Loading…
↗
12
6891165100
Rod, connecting
Loading…
↗
13
6891168101
Pin, crank
Loading…
↗
14
9331062406
Bearing
Loading…
↗
15
9020924M03
Washer, plate (689)
Loading…
↗
16
9038732002
Collar
Loading…
↗
17
9339000009
Brg,cyl-cal roller 260g nt
Loading…
↗
18
61N116310095
Piston (std)
Loading…
↗
18
61N1163500
AP
Piston (0.25mm o/s)
Loading…
↗
18
61N1163600
AP
Piston (0.50mm o/s)
Loading…
↗
19
61N1160300
Piston ring set (std)
Loading…
↗
19
61N1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
19
61N1160500
AP
Piston ring set (0.50mm o/s)
Loading…
↗
20
6891163300
Pin, piston
Loading…
↗
21
9360220M02
Pin, dowel b (664)
Loading…
↗
22
6881163400
Clip, piston pin
Loading…
↗
23
9020120M27
Washer, plate (689)
Loading…
↗
