40XMH (2014)
CRANKSHAFT & PISTON

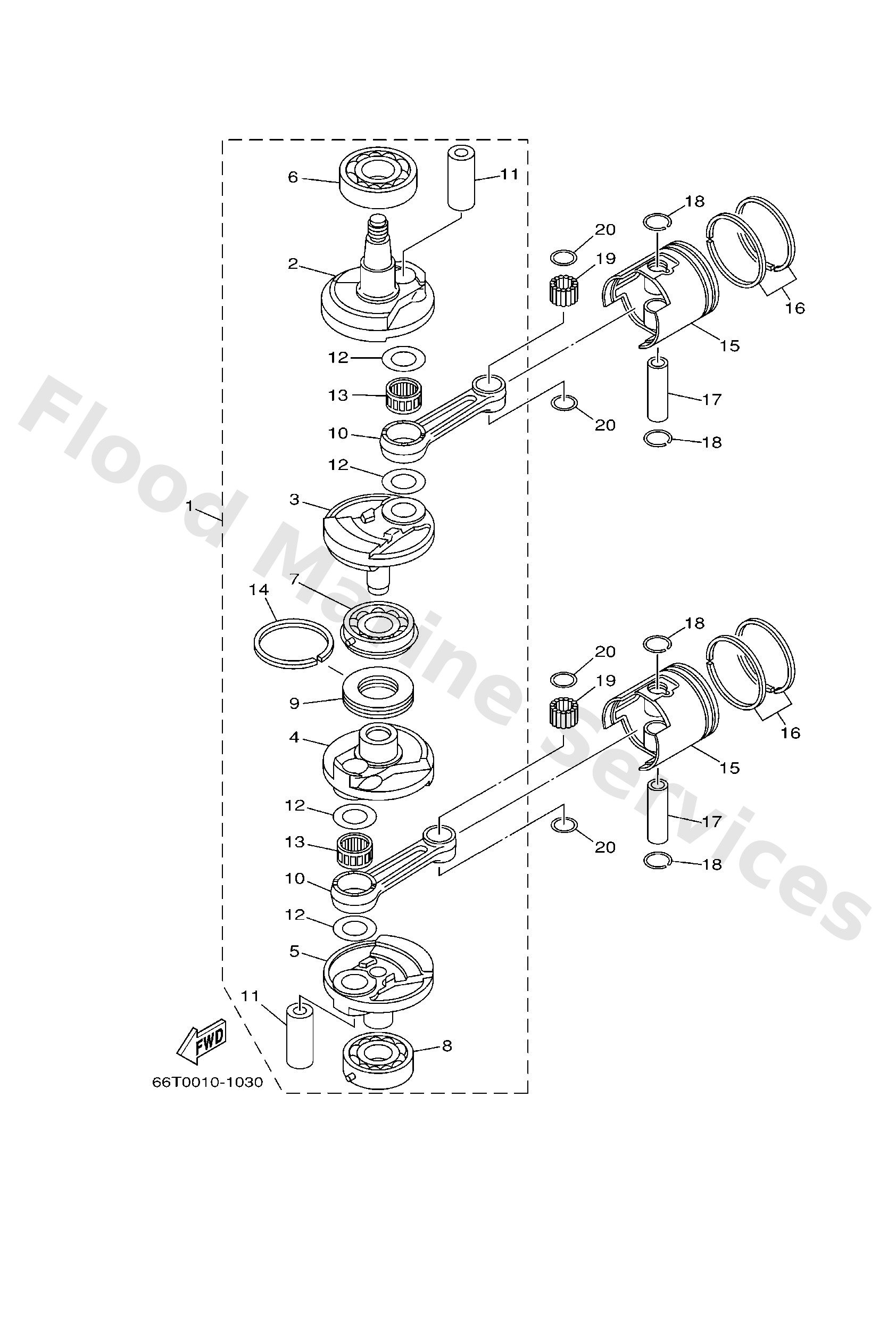

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
66T1140001
Crankshaft assembly
Loading…
↗
2
66T1141200
Crank 1
Loading…
↗
3
66T1142200
Crank 2
Loading…
↗
4
66T1143200
Crank 3
Loading…
↗
5
66T1144200
Crank 4
Loading…
↗
6
93306307U0
Brg,r-b 6307 80mm 449g (6f5)
Loading…
↗
7
93332000UE
Bearing
Loading…
↗
8
93306306V5
Bearing
Loading…
↗
9
6F51151500
Seal, labyrinth 1
Loading…
↗
10
6F51165100
Rod, connecting
Loading…
↗
11
66T1168100
Pin, crank 1
Loading…
↗
12
9020927012
Washer
Loading…
↗
13
93310727U0
Bearing
Loading…
↗
14
9344068M03
Circlip (6f5)
Loading…
↗
15
66T116310193
Piston (std)
Loading…
↗
15
66T1163501
AP
Piston (0.25mm o/s)
Loading…
↗
15
66T1163601
AP
Piston (0.50mm o/s)
Loading…
↗
16
66T1160300
Piston ring set (std)
Loading…
↗
16
66T1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
16
66T1160500
AP
Piston ring set (0.50mm o/s)
Loading…
↗
17
6F51163300
Pin, piston
Loading…
↗
18
6631163400
Clip, piston pin
Loading…
↗
19
9360321111
Pin, dowel(663)
Loading…
↗
20
9020120417
Washer, plate(663)
Loading…
↗
