40YMHO (2006)
CRANKSHAFT & PISTON

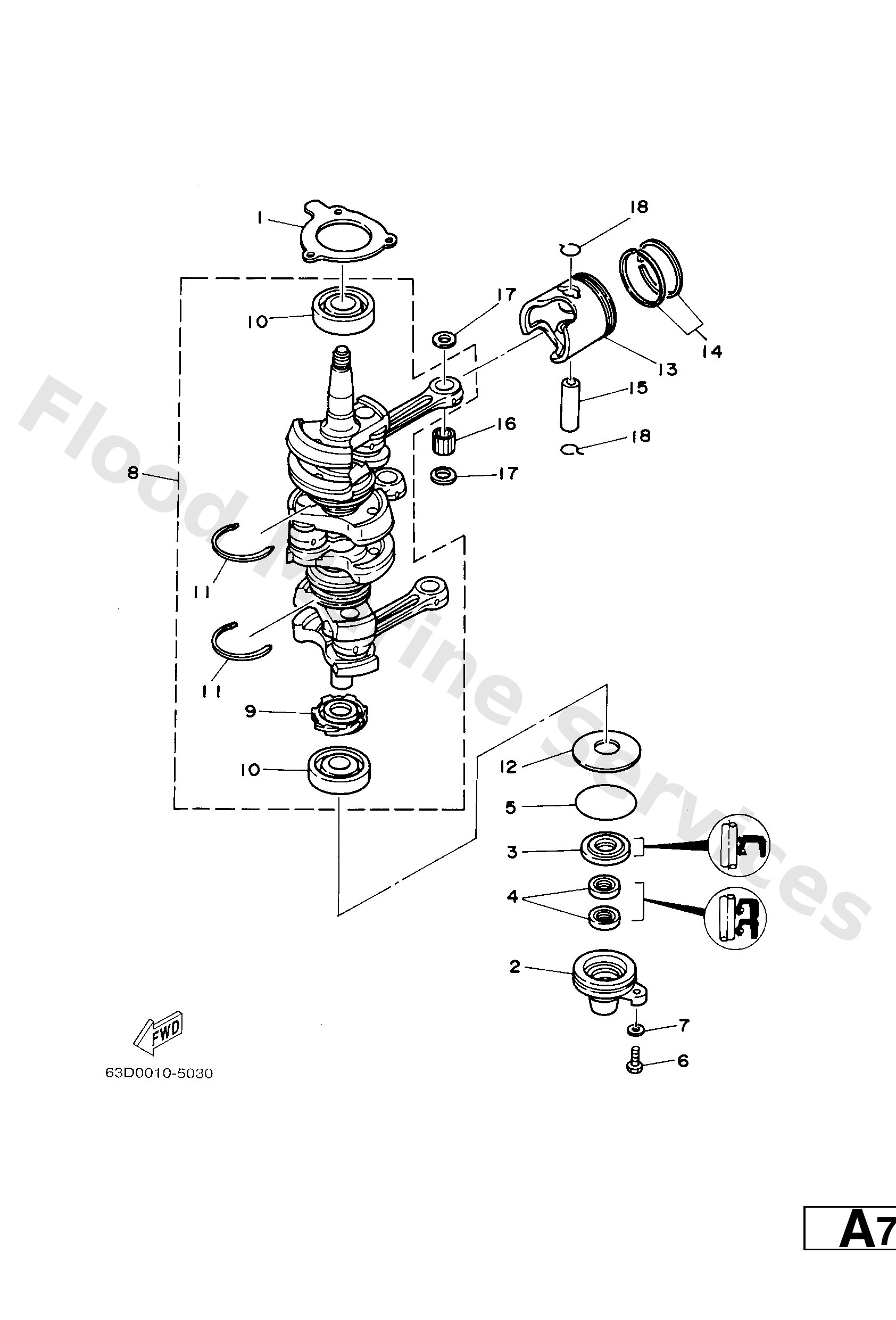

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6H415369A1
Gasket, oil seal housing
Loading…
↗
2
6H415396035B
Housing, oil seal
Loading…
↗
3
9310225M28
Oil seal(6h4)
Loading…
↗
4
9310416M01
Oil seal(6a8)
Loading…
↗
5
9321058M21
O-ring (683)
Loading…
↗
6
9709506020
Bolt(7u8)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
6H41140014
Crankshaft assembly
Loading…
↗
9
6H41153600
Gear, drive
Loading…
↗
10
93306305U8
Bearing(6h4)
Loading…
↗
11
9344062057
Cir clip (656)
Loading…
↗
12
9020150306
Washer plate 648115870000
Loading…
↗
13
6H4116310195
Piston (std)
Loading…
↗
13
6H41163501
AP
Piston (0.25mm o/s)
Loading…
↗
13
6H41163601
AP
Piston (0.50mm o/s)
Loading…
↗
14
63D1160300
Piston ring set (std)
Loading…
↗
14
63D1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
14
63D1160500
AP
Piston ring set (0.50mm o/s)
Loading…
↗
15
6481163300
Pin,piston
Loading…
↗
16
9360220M02
Pin, dowel b (664)
Loading…
↗
17
6H41164100
Washer, piston pin
Loading…
↗
18
6H41163401
Clip, piston pin
Loading…
↗
