8CMH (2009)
CRANKSHAFT & PISTON

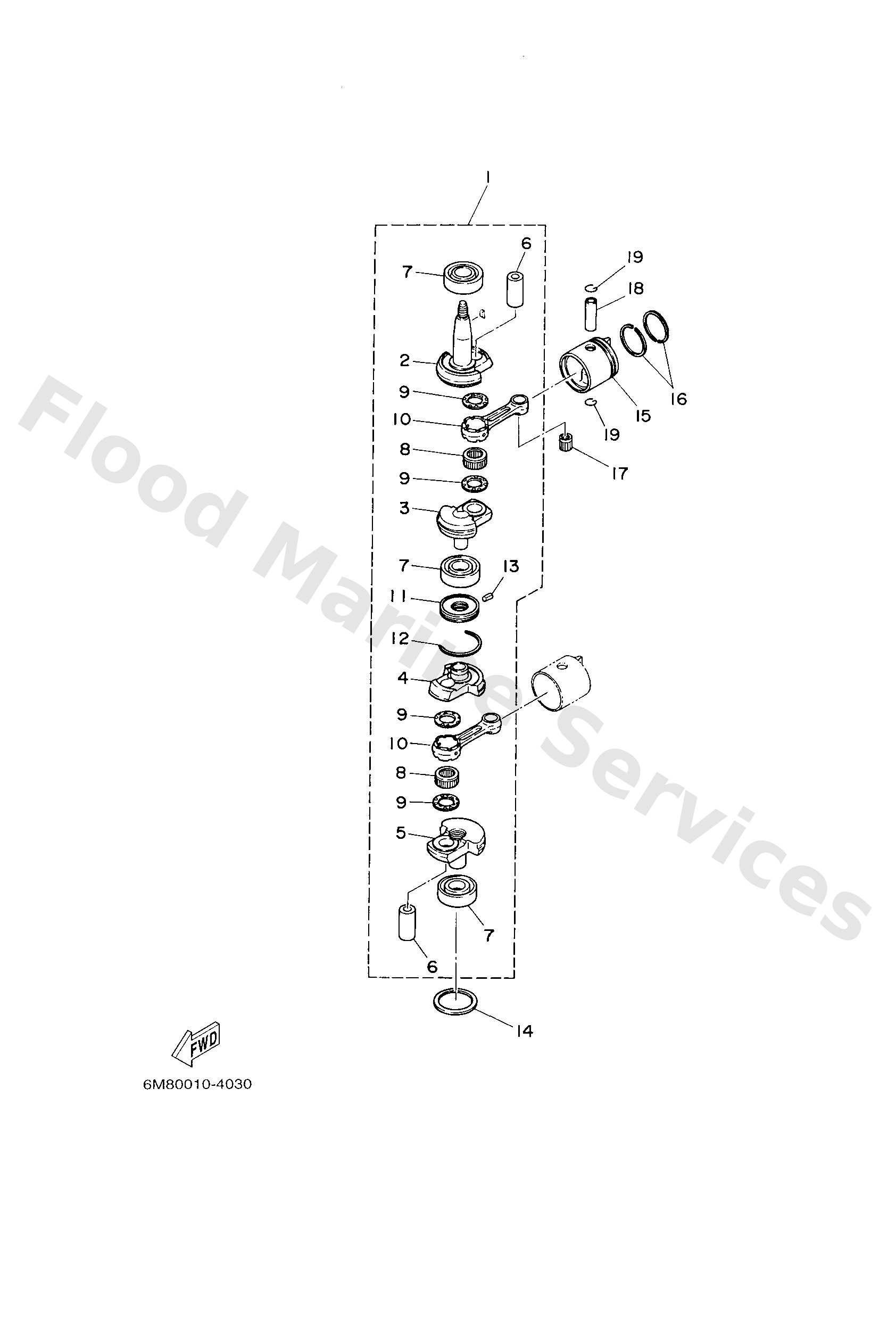

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6N0E140000
Crankshaft assembly
Loading…
↗
2
6N0E141200
Crank 1
Loading…
↗
3
6N0E142200
Crank 2
Loading…
↗
4
6N0E143200
Crank 3
Loading…
↗
5
6N0E144200
Crank 4
Loading…
↗
6
6G11168100
Pin, crank
Loading…
↗
7
93306204U0
Bearing(6e0)
Loading…
↗
8
93310418V1
Bearing (6e0)
Loading…
↗
9
9020918112
Washer 132116850000
Loading…
↗
10
6N0E165100
Rod connecting
Loading…
↗
11
6N0E151500
Seal, labyrinth 1
Loading…
↗
12
9344047055
Cir clip (655)
Loading…
↗
13
9160920008
Pin, spring
Loading…
↗
14
9020141303
Washer, plate
Loading…
↗
15
6N0E16310098
Piston (std)
Loading…
↗
16
6N0E160300
Piston ring set (std)
Loading…
↗
17
93310112V0
Bearing (6e0)
Loading…
↗
18
6N0E163300
Pin, piston
Loading…
↗
19
9345013022
Circlip 132116340000
Loading…
↗
