90AETO (2017)
CRANKSHAFT & PISTON

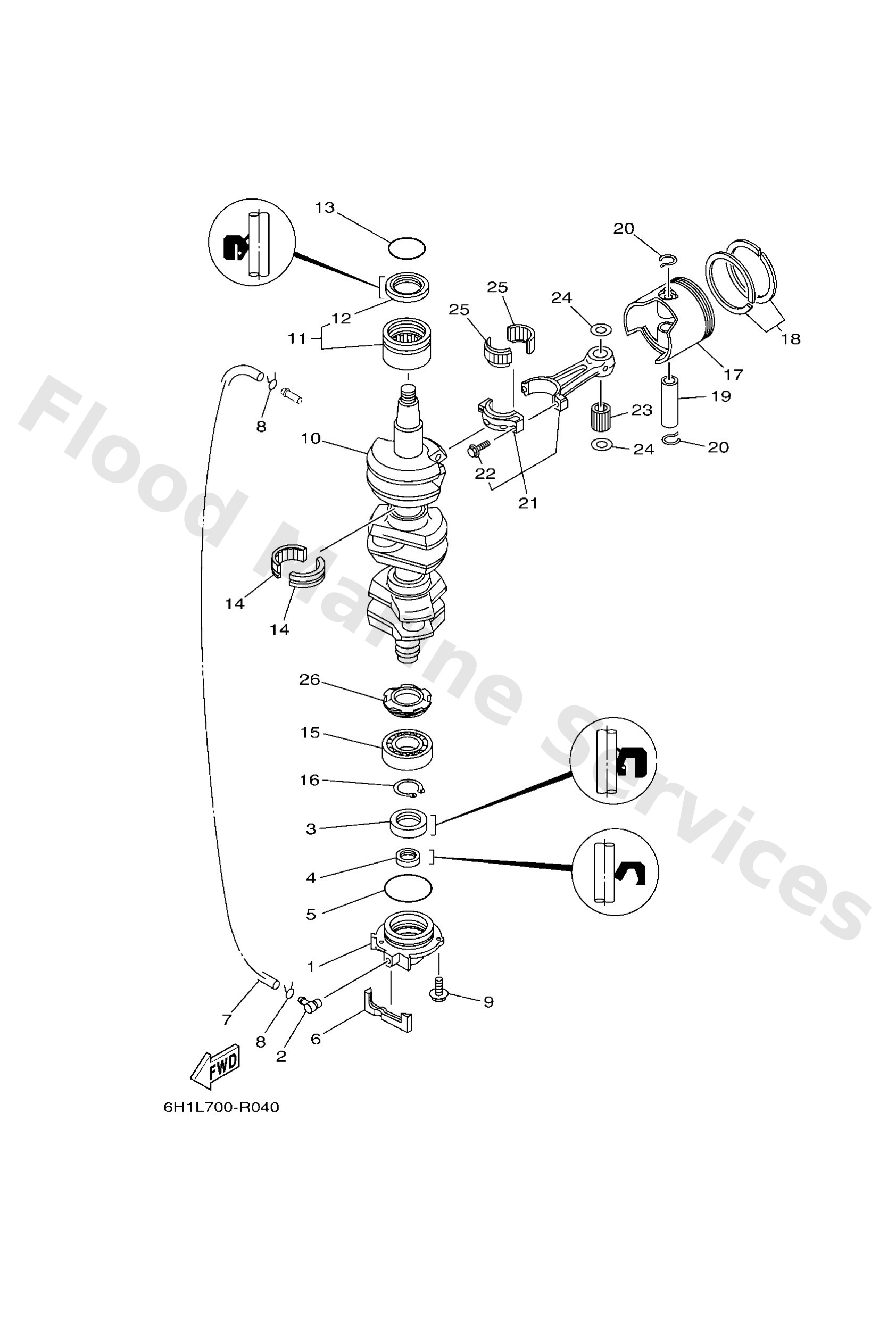

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6H1153590194
Housing, oil seal
Loading…
↗
2
6881137001
Check valve assembly
Loading…
↗
3
9310230M05
Oil seal (688)
Loading…
↗
4
9310420M02
Oil seal (688)
Loading…
↗
5
9321062269
Ring, o(663)
Loading…
↗
6
6881537900
Seal, crank case
Loading…
↗
7
9044507M86
Hose (l770)
Loading…
↗
8
9046706016
Clip (655)
Loading…
↗
9
9759506520
Bolt(7u8)
Loading…
↗
10
6881141101
Crank, shaft
Loading…
↗
11
93310636U4
Bearing (688)
Loading…
↗
12
9310236M02
Oil seal(52w)
Loading…
↗
13
9321046M16
O-ring (688)
Loading…
↗
14
93310835U8
Brg,cyl-cal roller (688)
Loading…
↗
15
93306206U5
Brg,r-b 6206 66mm (688)
Loading…
↗
16
9341032M00
Circlip
Loading…
↗
17
6H1116310395
Piston (std)
Loading…
↗
17
6H11163503
AP
Piston (0.25mm o/s)
Loading…
↗
17
6H11163603
AP
Piston (0.50mm o/s)
Loading…
↗
18
68811605A0
AP
Piston ring set (0.50mm o/s)
Loading…
↗
18
68811604A0
AP
Piston ring set (0.25mm o/s)
Loading…
↗
18
68811603A0
Piston ring set (std)
Loading…
↗
19
6631163300
Pin, piston
Loading…
↗
20
6881163410
Clip, piston pin
Loading…
↗
21
6881165003
Connecting rod assembly
Loading…
↗
22
9010908022
Bolt
Loading…
↗
23
9360321111
Pin, dowel(663)
Loading…
↗
24
9020120417
Washer, plate(663)
Loading…
↗
25
93310730V8
Bearing (688)
Loading…
↗
26
6H11153600
Gear, drive
Loading…
↗
