E60HMHD (2008)
CRANKSHAFT & PISTON

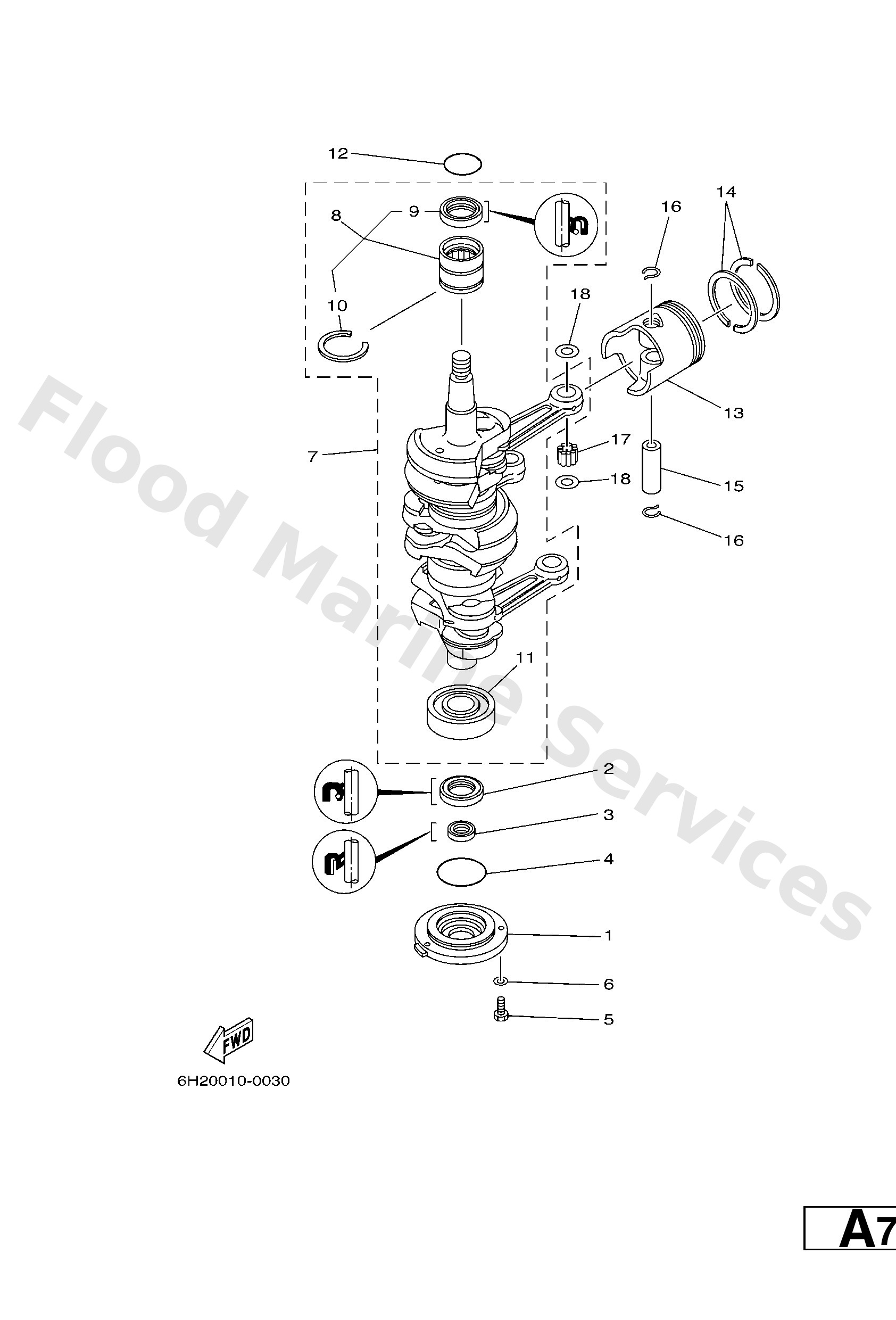

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6H3153590094
Housing, oil seal
Loading…
↗
2
9310230009
Oil seal
Loading…
↗
3
9310618001
Oil seal
Loading…
↗
4
9321065M50
O-ring
Loading…
↗
5
9709506020
Bolt(7u8)
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
69DW114001
Crankshaft assembly
Loading…
↗
8
93311636U6
Bearing, needle (6h3)
Loading…
↗
9
9310236M24
Oil seal(52w)
Loading…
↗
10
9344049M04
Circlip (6h3)
Loading…
↗
11
93306306V1
Bearing(6h2)
Loading…
↗
12
9321046M16
O-ring (688)
Loading…
↗
13
6K5116310395
Piston (std)
Loading…
↗
13
6K51163503
AP
Piston (0.25mm o/s)
Loading…
↗
13
6K51163603
AP
Piston (0.50mm o/s)
Loading…
↗
14
6K51160102
Piston ring set (std)
Loading…
↗
14
6K51160112
AP
Piston ring set (1st o/s)
Loading…
↗
14
6K51160122
AP
Piston ring set (2nd o/s)
Loading…
↗
15
6H31163300
Pin, piston
Loading…
↗
16
6881163410
Clip, piston pin
Loading…
↗
17
9360318M09
Pin, dowel b (6h3)
Loading…
↗
18
9020120417
Washer, plate(663)
Loading…
↗
