F100DET (2012)
CRANKSHAFT & PISTON

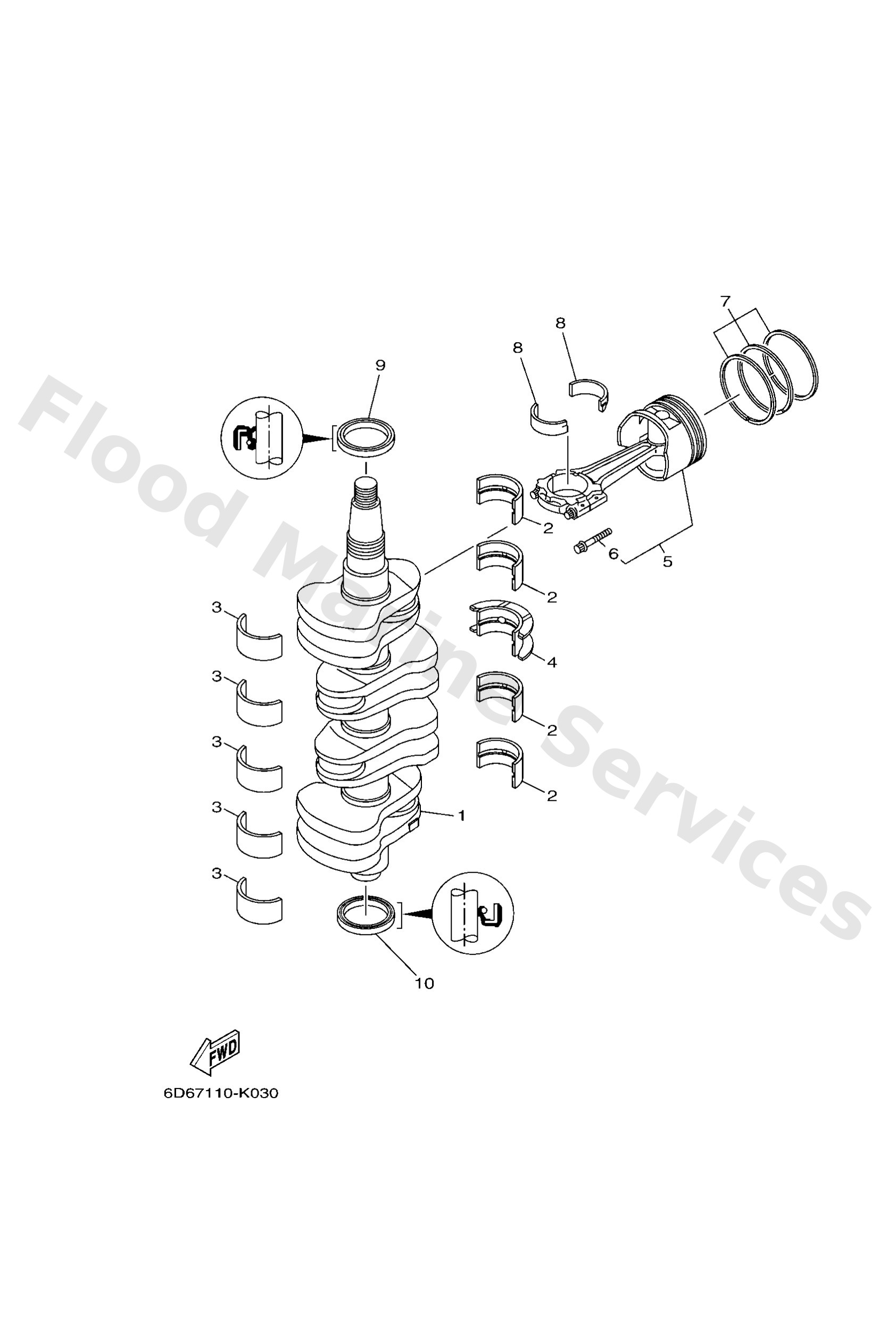

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6D81141100
Crankshaft
Loading…
↗
2
6D81141600
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
2
6D81141620
UR RED
Plane bearing, crankshaft 1
Loading…
↗
2
6D81141610
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
3
6D81141730
UR RED
Plane bearing, crankshaft 2
Loading…
↗
3
6D81141720
UR BLUE
Plane bearing, crankshaft 2
Loading…
↗
3
6D81141710
UR GREEN
Plane bearing, crankshaft 2
Loading…
↗
3
6D81141700
UR YELLOW
Plane bearing, crankshaft 2
Loading…
↗
4
6D81141820
UR RED
Plane bearing, crankshaft 3
Loading…
↗
4
6D81141810
UR BLUE
Plane bearing, crankshaft 3
Loading…
↗
4
6D81141800
UR GREEN
Plane bearing, crankshaft 3
Loading…
↗
5
6D8W116431
AP
Piston/con-rod assembly(0.25mm os)
Loading…
↗
5
6D8W116421
Piston/con-rod assembly std
Loading…
↗
6
K1CA327500
Bolt, connecting rod
Loading…
↗
7
6D81160301
Piston ring set (std)
Loading…
↗
7
6D81160401
AP
Piston ring set (0.25mm o/s)
Loading…
↗
8
6D81165600
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
8
6D81165610
UR GREEN
Plane bearing, connecting rod
Loading…
↗
8
6D81165620
UR BLUE
Plane bearing, connecting rod
Loading…
↗
8
6D81165630
UR RED
Plane bearing, connecting rod
Loading…
↗
9
9310248008
Oil seal
Loading…
↗
10
9310148001
Oil seal
Loading…
↗
