Yamaha Outboard Parts - CRANKSHAFT & PISTON - F130A (2025) | Flood Marine

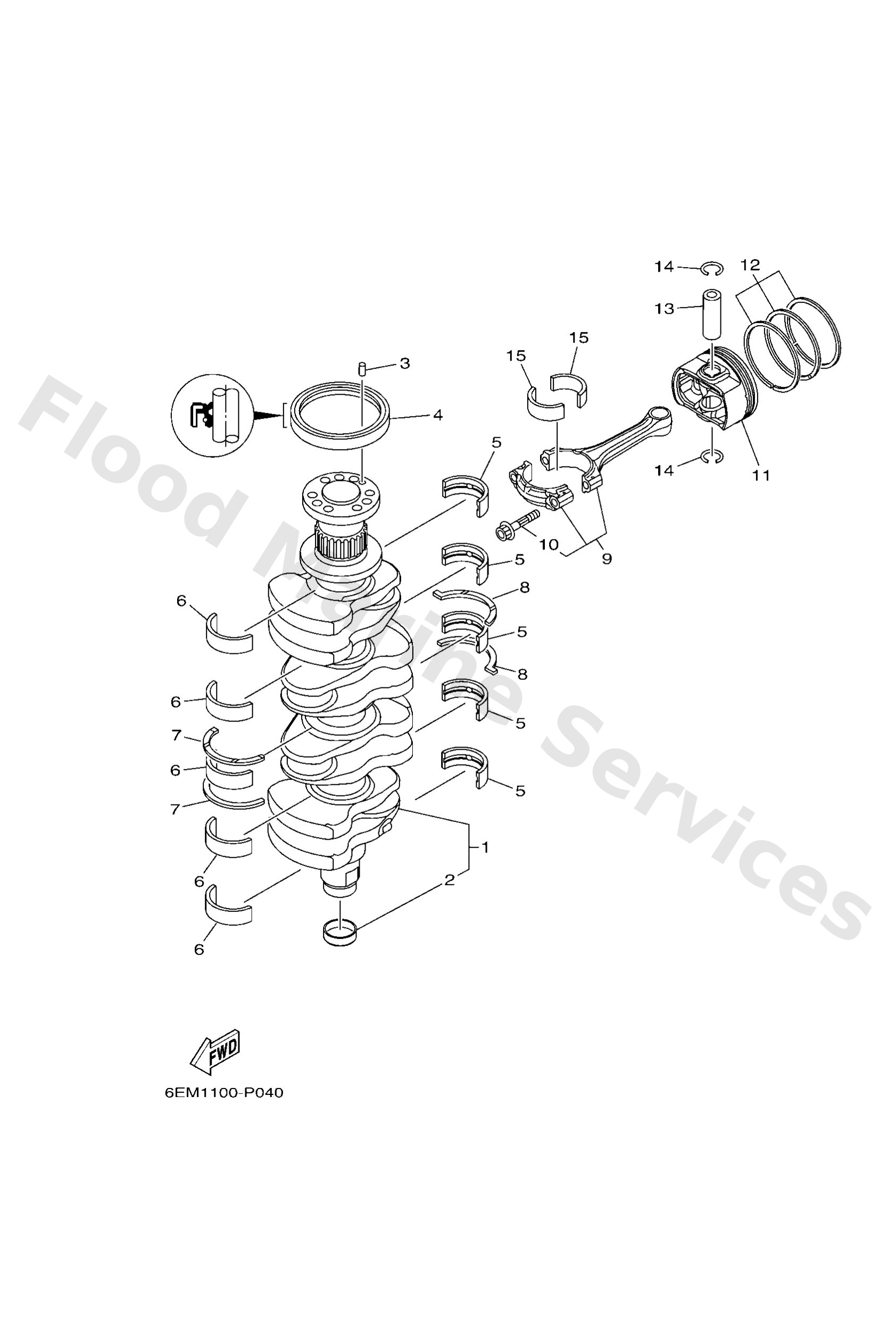

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

Reference
Description
Price


1
6EK1141001
Crankshaft
Loading…

↗
2
6CB1147800
Collar
Loading…

↗
3
9360612019
Pin, dowel (614)
Loading…

↗
4
9310285008
Oil seal
Loading…

↗
5
6EK1141600 UR YELLOW
Plane bearing, crankshaft 1
Loading…

↗
5
6EK1141610 UR GREEN
Plane bearing, crankshaft 1
Loading…

↗
5
6EK1141620 UR BLUE
Plane bearing, crankshaft 1
Loading…

↗
5
6EK1141630 UR RED
Plane bearing, crankshaft 1
Loading…

↗
5
6EK1141640 UR BLACK
Plane bearing, crankshaft 1
Loading…

↗
6
6EK1141700 UR YELLOW
Plane bearing, crankshaft 2
Loading…

↗
6
6EK1141710 UR GREEN
Plane bearing, crankshaft 2
Loading…

↗
6
6EK1141720 UR BLUE
Plane bearing, crankshaft 2
Loading…

↗
6
6EK1141730 UR RED
Plane bearing, crankshaft 2
Loading…

↗
6
6EK1141740 UR BLACK
Plane bearing, crankshaft 2
Loading…

↗
7
6EK1142601
Bearing, thrust 1
Loading…

↗
8
6EK1142700
Bearing, thrust 2
Loading…

↗
9
6EKW116500
Connecting rod assembly
Loading…

↗
10
K1CA327500
Bolt, connecting rod
Loading…

↗
11
6EK116310294
Piston (std)
Loading…

↗
11
6EK1163502 AP
Piston (0.25mm o/s)
Loading…

↗
12
6EK1160301
Piston ring set (std)
Loading…

↗
12
6EK1160401 AP
Piston ring set (0.25mm o/s)
Loading…

↗
13
6EK1163300
Pin, piston
Loading…

↗
14
9345019052
Circlip (2f1)
Loading…

↗
15
6EK1165600 UR YELLOW
Plane bearing, connecting rod
Loading…

↗
15
6EK1165610 UR GREEN
Plane bearing, connecting rod
Loading…

↗
15
6EK1165620 UR BLUE
Plane bearing, connecting rod
Loading…

↗
15
6EK1165630 UR RED
Plane bearing, connecting rod
Loading…

↗
15
6EK1165640 UR BLACK
Plane bearing, connecting rod
Loading…

↗
