F130AET (2020)
CRANKSHAFT & PISTON

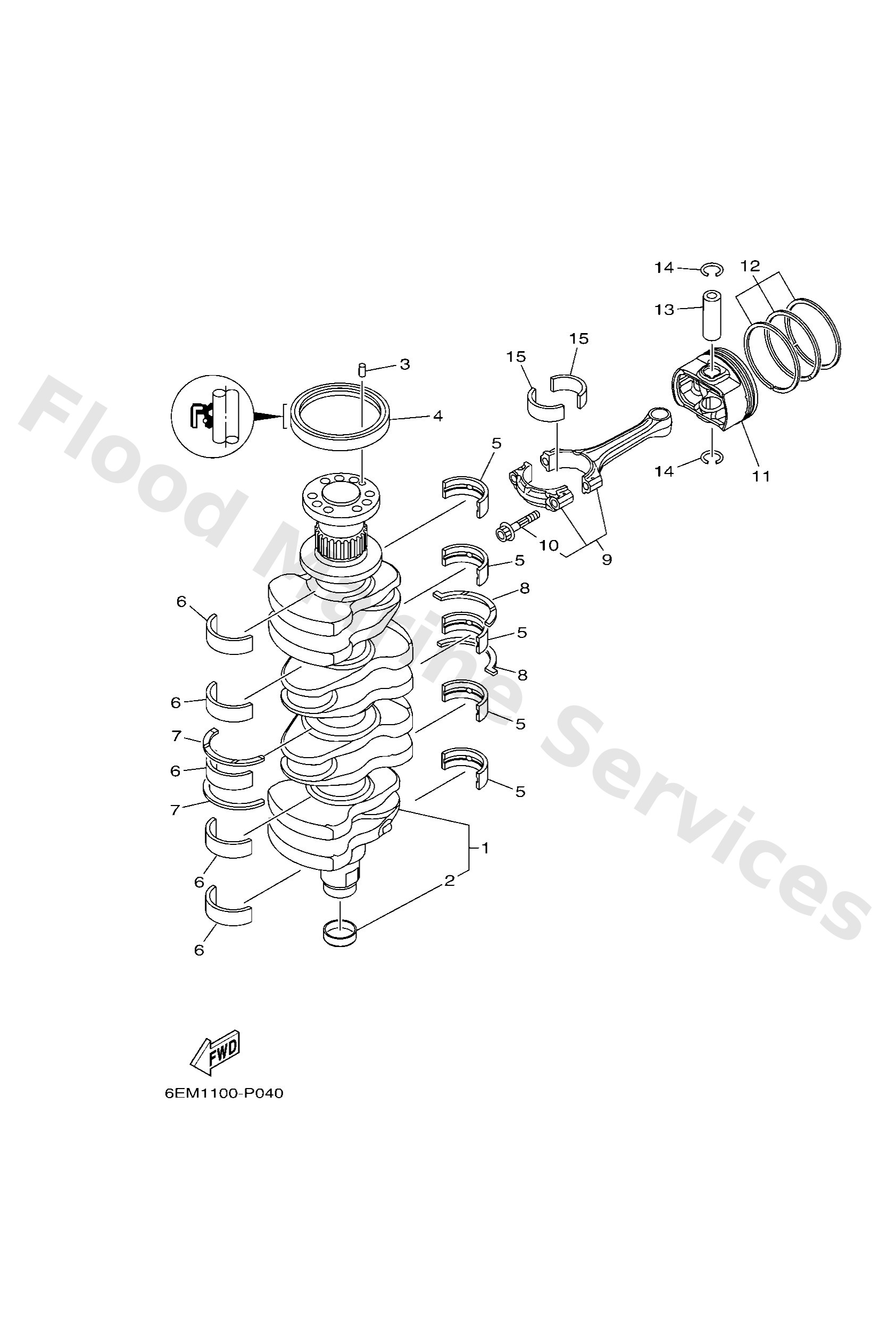

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6EK1141001
Crankshaft
Loading…
↗
2
6CB1147800
Collar
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9310285008
Oil seal
Loading…
↗
5
6EK1141610
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
5
6EK1141640
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
5
6EK1141630
UR RED
Plane bearing, crankshaft 1
Loading…
↗
5
6EK1141620
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
5
6EK1141600
UR YELLOW
Plane bearing, crankshaft 1
Loading…
↗
6
6EK1141720
UR BLUE
Plane bearing, crankshaft 2
Loading…
↗
6
6EK1141730
UR RED
Plane bearing, crankshaft 2
Loading…
↗
6
6EK1141740
UR BLACK
Plane bearing, crankshaft 2
Loading…
↗
6
6EK1141710
UR GREEN
Plane bearing, crankshaft 2
Loading…
↗
6
6EK1141700
UR YELLOW
Plane bearing, crankshaft 2
Loading…
↗
7
6EK1142601
Bearing, thrust 1
Loading…
↗
8
6EK1142700
Bearing, thrust 2
Loading…
↗
9
6EKW116500
Connecting rod assembly
Loading…
↗
10
K1CA327500
Bolt, connecting rod
Loading…
↗
11
6EK1163501
AP
Piston (0.25mm o/s)
Loading…
↗
11
6EK116310194
Piston (std)
Loading…
↗
12
6EK1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
12
6EK1160300
Piston ring set (std)
Loading…
↗
13
6EK1163300
Pin, piston
Loading…
↗
14
9345019052
Circlip (2f1)
Loading…
↗
15
6EK1165600
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
15
6EK1165610
UR GREEN
Plane bearing, connecting rod
Loading…
↗
15
6EK1165620
UR BLUE
Plane bearing, connecting rod
Loading…
↗
15
6EK1165640
UR BLACK
Plane bearing, connecting rod
Loading…
↗
15
6EK1165630
UR RED
Plane bearing, connecting rod
Loading…
↗
