F150AET (2008)
CRANKSHAFT & PISTON

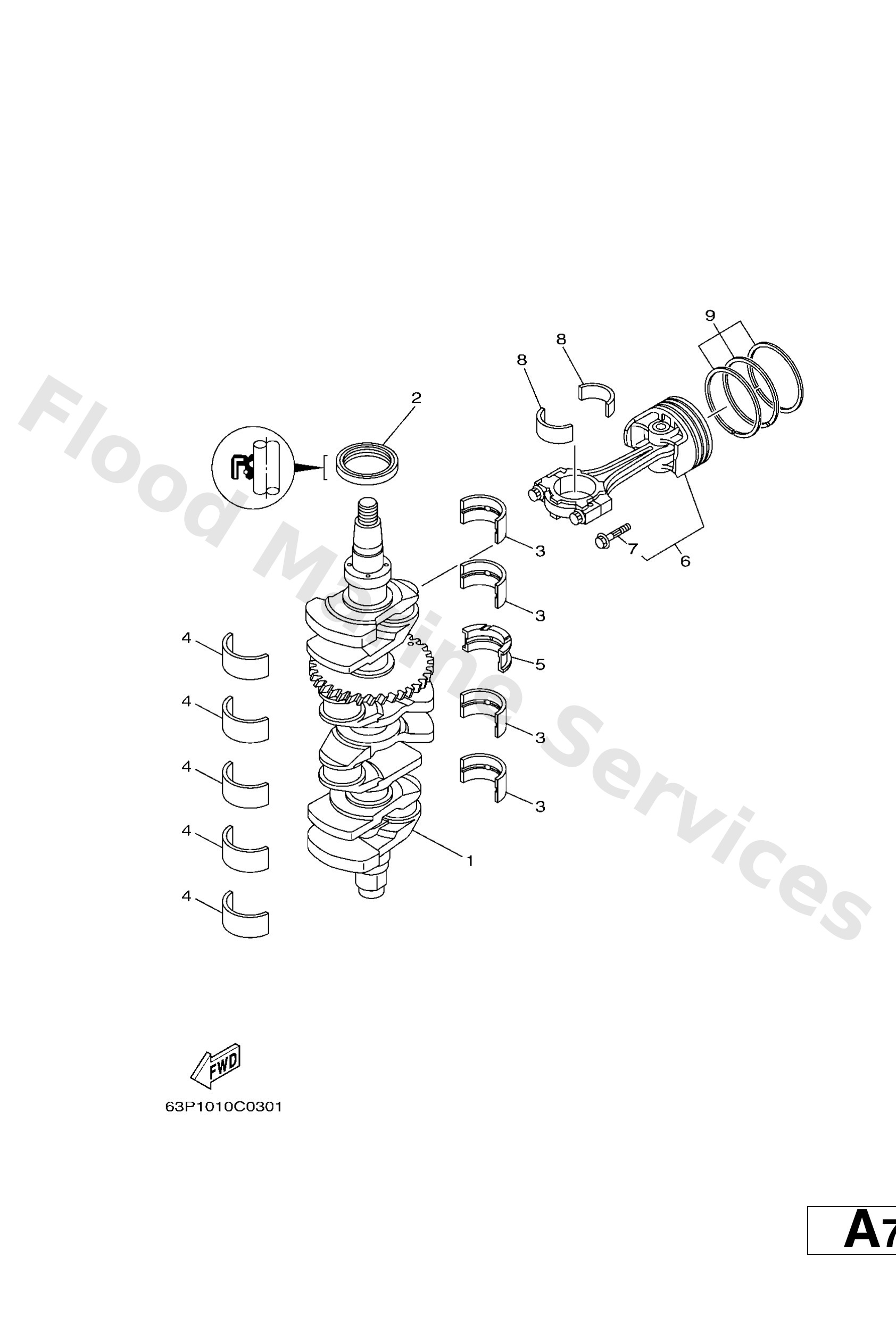

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
63P1141001
Crankshaft & oil pump set
Loading…
↗
2
9310260004
Oil seal
Loading…
↗
3
63P1141631
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
3
63P1141641
UR RED
Plane bearing, crankshaft 1
Loading…
↗
3
63P1141651
UR YELLOW
Plane bearing, crankshaft 1
Loading…
↗
4
63P1141741
UR BROWN
Plane bearing, crankshaft 2
Loading…
↗
4
63P1141751
UR GREEN
Plane bearing, crankshaft 2
Loading…
↗
4
63P1141761
UR RED
Plane bearing, crankshaft 2
Loading…
↗
4
63P1141771
UR YELLOW
Plane bearing, crankshaft 2
Loading…
↗
4
63P1141781
UR BLUE
Plane bearing, crankshaft 2
Loading…
↗
5
63P1142631
UR GREEN
Bearing, thrust 1
Loading…
↗
5
63P1142651
UR YELLOW
Bearing, thrust 1
Loading…
↗
5
63P1142641
UR RED
Bearing, thrust 1
Loading…
↗
6
63PW116401
Piston/con-rod assembly std
Loading…
↗
6
63PW116410
AP
Piston/con-rod assembly(0.25mm os)
Loading…
↗
7
63P1165401
Bolt, connecting rod
Loading…
↗
8
63P1165601
UR GREEN
Plane Bearing, Connecting Rod
Loading…
↗
8
63P1165611
UR BLUE
Plane Bearing, Connecting Rod
Loading…
↗
8
63P1165621
UR RED
Plane Bearing, Connecting Rod
Loading…
↗
9
63P1160301
Piston ring set (std)
Loading…
↗
9
63P1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
