F15CMH (2025)
CRANKSHAFT & PISTON

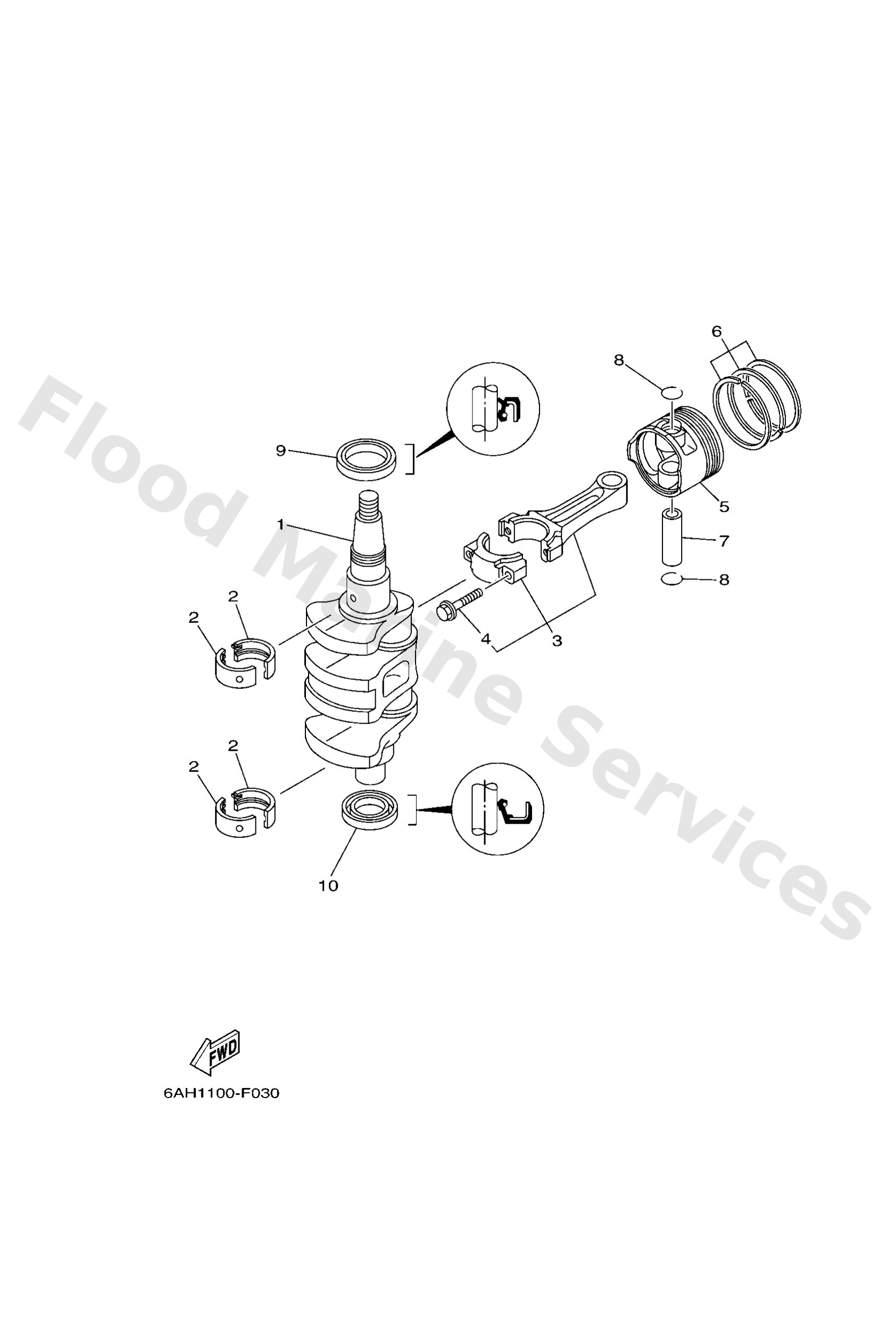

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6AH1141100
Crankshaft
Loading…
↗
2
6AH1141600
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
2
6AH1141610
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
2
6AH1141620
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
3
6AH1165010
Connecting rod assembly
Loading…
↗
4
6AH1165400
Bolt, connecting rod
Loading…
↗
5
6AH1163100
Piston (std)
Loading…
↗
5
6AH1163500
AP
Piston (0.25mm o/s)
Loading…
↗
5
6AH1163600
AP
Piston (0.50mm o/s)
Loading…
↗
6
6AH1160300
Piston ring set (std)
Loading…
↗
6
6AH1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
6
6AH1160500
AP
Piston ring set (0.50mm o/s)
Loading…
↗
7
1371163310
Pin, piston
Loading…
↗
8
9345017129
Circlip(1ar)
Loading…
↗
9
9310237004
Oil seal
Loading…
↗
10
9310225014
Oil seal
Loading…
↗
