F2.5BMH (2019)
CRANKSHAFT & PISTON

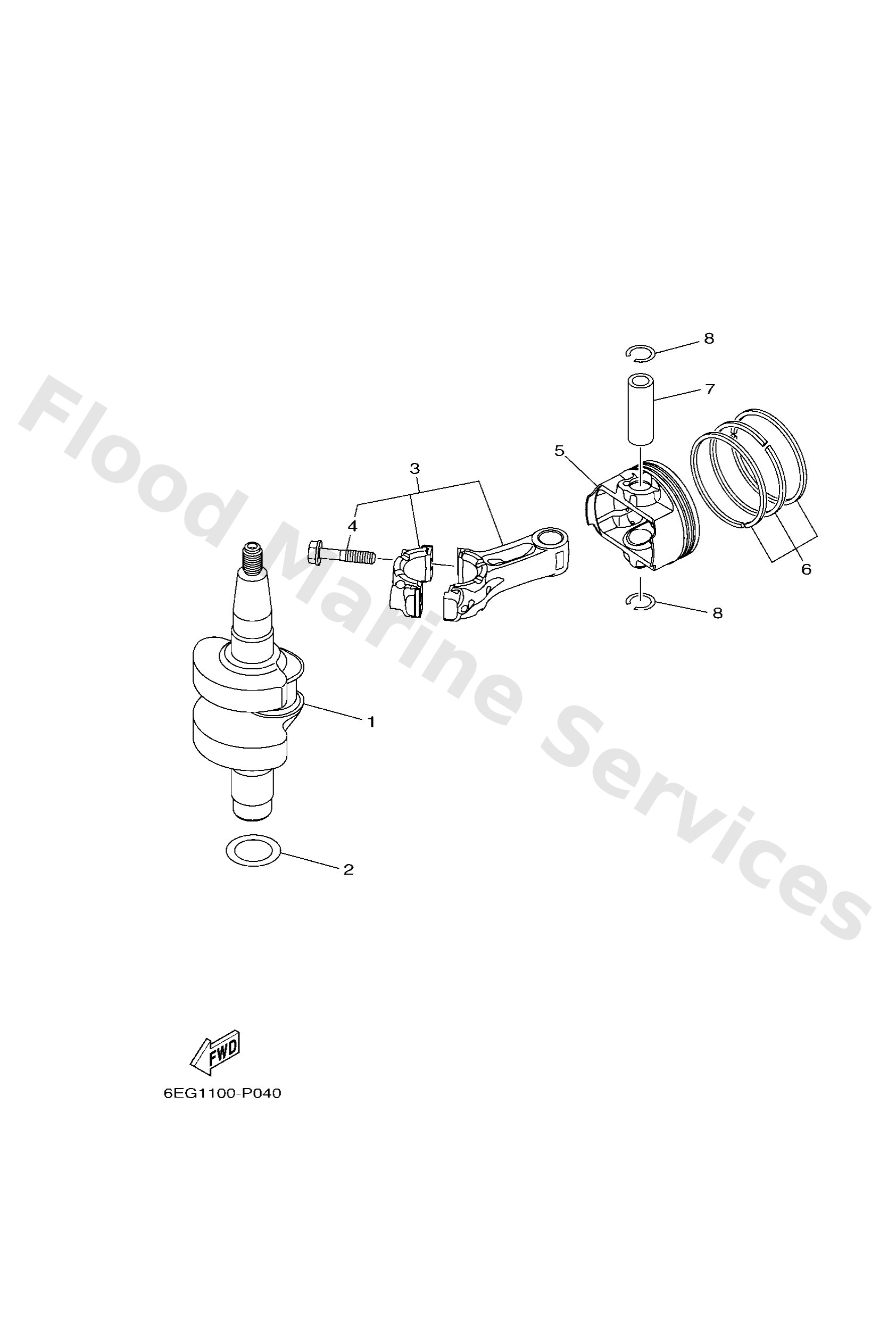

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6EGE141001
Crankshaft
Loading…
↗
2
9020123008
Washer, plate
Loading…
↗
3
6EGE165000
Connecting rod assembly
Loading…
↗
4
7DXE165400
Bolt, connecting rod
Loading…
↗
5
6EGE163500
AP
Piston (0.25mm o/s
Loading…
↗
5
6EGE163600
AP
Piston (0.50mm o/s
Loading…
↗
5
6EGE163100
Piston (std)
Loading…
↗
6
69ME160501
AP
Ring piston setx10 o/s-2
Loading…
↗
6
69ME160401
AP
Piston ring set o/s-1
Loading…
↗
6
69ME160301
Piston ring set (std)
Loading…
↗
7
6EGE163300
Pin, piston
Loading…
↗
8
9345013811
Circlip(3nw)
Loading…
↗
