F2.5BMH (2023)
CRANKSHAFT & PISTON

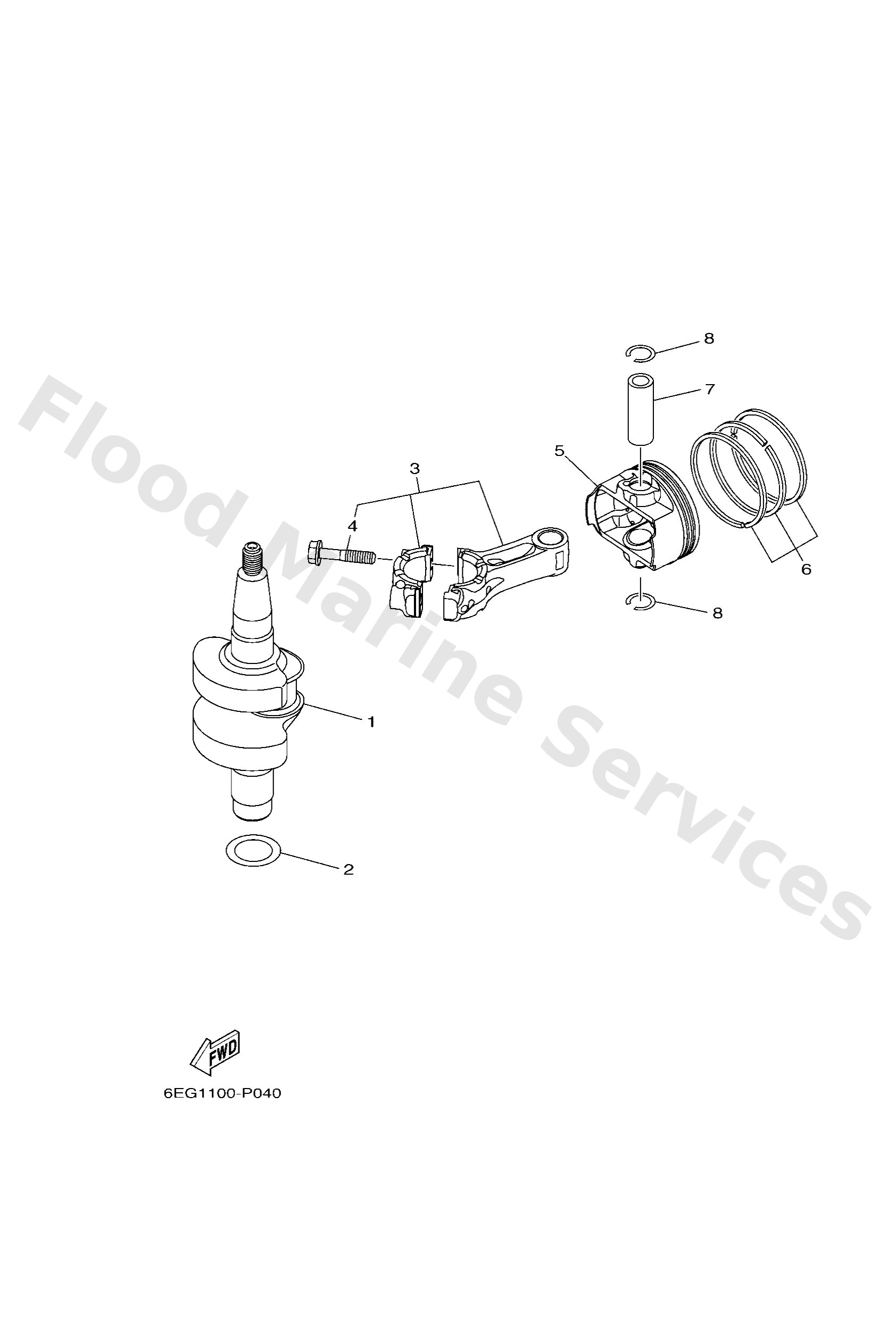

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6EGE141001
Crankshaft
Loading…
↗
2
9020123008
Washer, plate
Loading…
↗
3
6EGE165000
Connecting rod assembly
Loading…
↗
4
7DXE165400
Bolt, connecting rod
Loading…
↗
5
6EGE163110
Piston (std)
Loading…
↗
5
6EGE163510
AP
Piston (0.25mm o/s
Loading…
↗
5
6EGE163610
AP
Piston (0.50mm o/s
Loading…
↗
6
69ME160310
Piston ring set (s
Loading…
↗
6
69ME160410
AP
Piston ring set (0
Loading…
↗
6
69ME160510
AP
Piston ring set (0
Loading…
↗
7
6EGE163300
Pin, piston
Loading…
↗
8
9345013811
Circlip(3nw)
Loading…
↗
