F225CET (2012)
CRANKSHAFT & PISTON

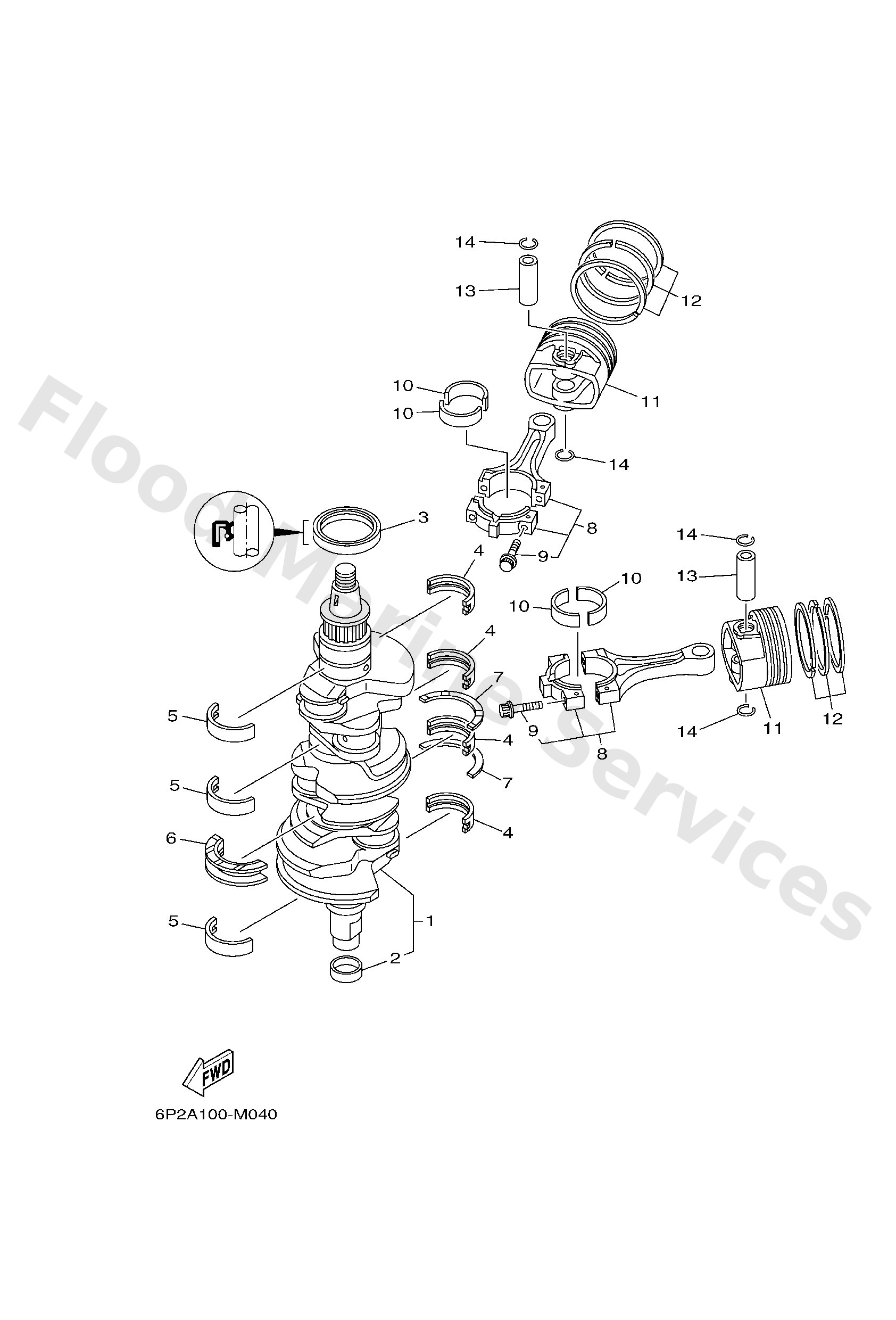

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6P21141010
Crankshaft
Loading…
↗
2
6CB1147800
Collar
Loading…
↗
3
9310263008
Oil seal
Loading…
↗
4
6P21141620
UR #3
Plane bearing, crankshaft 1
Loading…
↗
4
6P21141610
UR #2
Plane bearing, crankshaft 1
Loading…
↗
4
6P21141600
UR #1
Plane bearing, crankshaft 1
Loading…
↗
5
6P21141720
UR #3 Go to P/N)PE0-OM-130025
Plane bearing, crankshaft 2
Loading…
↗
5
6P21141710
UR #2 Go to P/N)PE0-OM-130025
Plane bearing, crankshaft 2
Loading…
↗
5
6P21141700
UR #1 Go to P/N)PE0-OM-130025
Plane bearing, crankshaft 2
Loading…
↗
6
6AW1142600
Go to P/N)PE0-OM-130025
Bearing, thrust 1
Loading…
↗
7
6AW1142700
Go to P/N)PE0-OM-130025
Bearing, thrust 2
Loading…
↗
8
6P21165000
Connecting rod assembly
Loading…
↗
9
63P1165410
Bolt, connecting rod
Loading…
↗
10
6P21165620
UR BLUE
Plane bearing, connecting rod
Loading…
↗
10
6P21165610
UR GREEN
Plane bearing, connecting rod
Loading…
↗
10
6P21165600
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
11
6P21163510
AP
Piston (0.25mm o/s)
Loading…
↗
11
6P2116311093
Piston (std)
Loading…
↗
12
63P1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
12
63P1160301
Piston ring set (std)
Loading…
↗
13
63P1163310
Pin, piston
Loading…
↗
14
63P1163400
Clip, piston pin
Loading…
↗
