F25AMH (2008)
CRANKSHAFT & PISTON

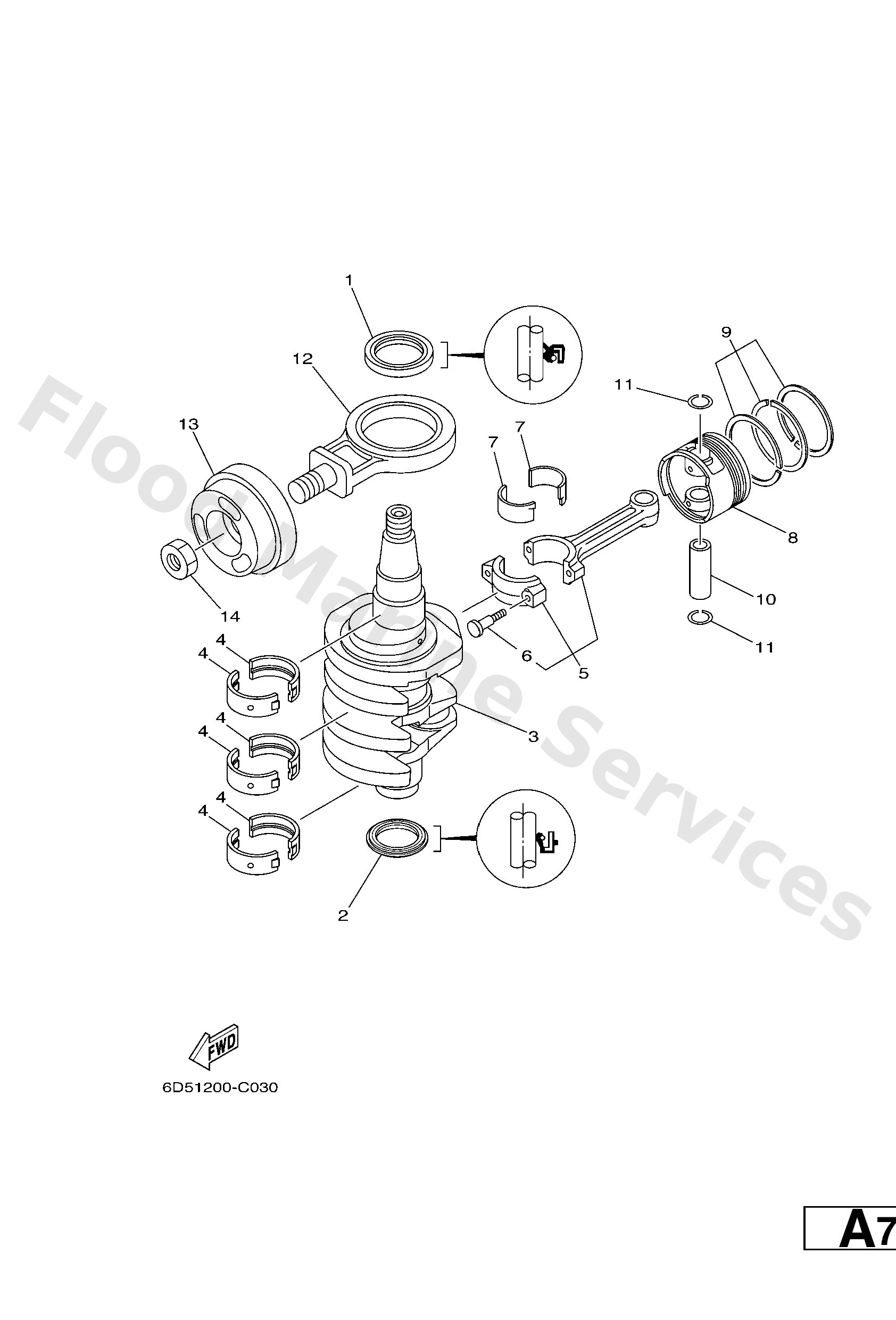

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
9310243004
Oil seal
Loading…
↗
2
9310135002
Oil seal
Loading…
↗
3
65W1141101
Crankshaft
Loading…
↗
4
62Y1141600
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
62Y1141610
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
4
62Y1141620
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
5
62Y1165020
Connecting rod assembly
Loading…
↗
6
62Y1165400
Bolt, connecting rod
Loading…
↗
7
62Y1165600
UR BROWN
Plane bearing, connecting rod
Loading…
↗
7
62Y1165610
UR BLACK
Plane bearing, connecting rod
Loading…
↗
7
62Y1165620
UR BLUE
Plane bearing, connecting rod
Loading…
↗
8
65W116310096
Piston (std)
Loading…
↗
8
65W1163600
AP
Piston (0.50mm o/s)
Loading…
↗
8
65W1163500
AP
Piston (0.25mm o/s)
Loading…
↗
9
68U1160300
Piston ring set (std)
Loading…
↗
9
68U1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
9
68U1160500
AP
Piston ring set (0.50mm o/s)
Loading…
↗
10
62Y1163300
Pin, piston
Loading…
↗
11
9345017129
Circlip(1ar)
Loading…
↗
12
65W1166500
Con-rod assembly, balance
Loading…
↗
13
65W1164211
-
Loading…
↗
14
9017020137
Nut, hexagon(663)
Loading…
↗
