F25GET (2022)
CRANKSHAFT & PISTON

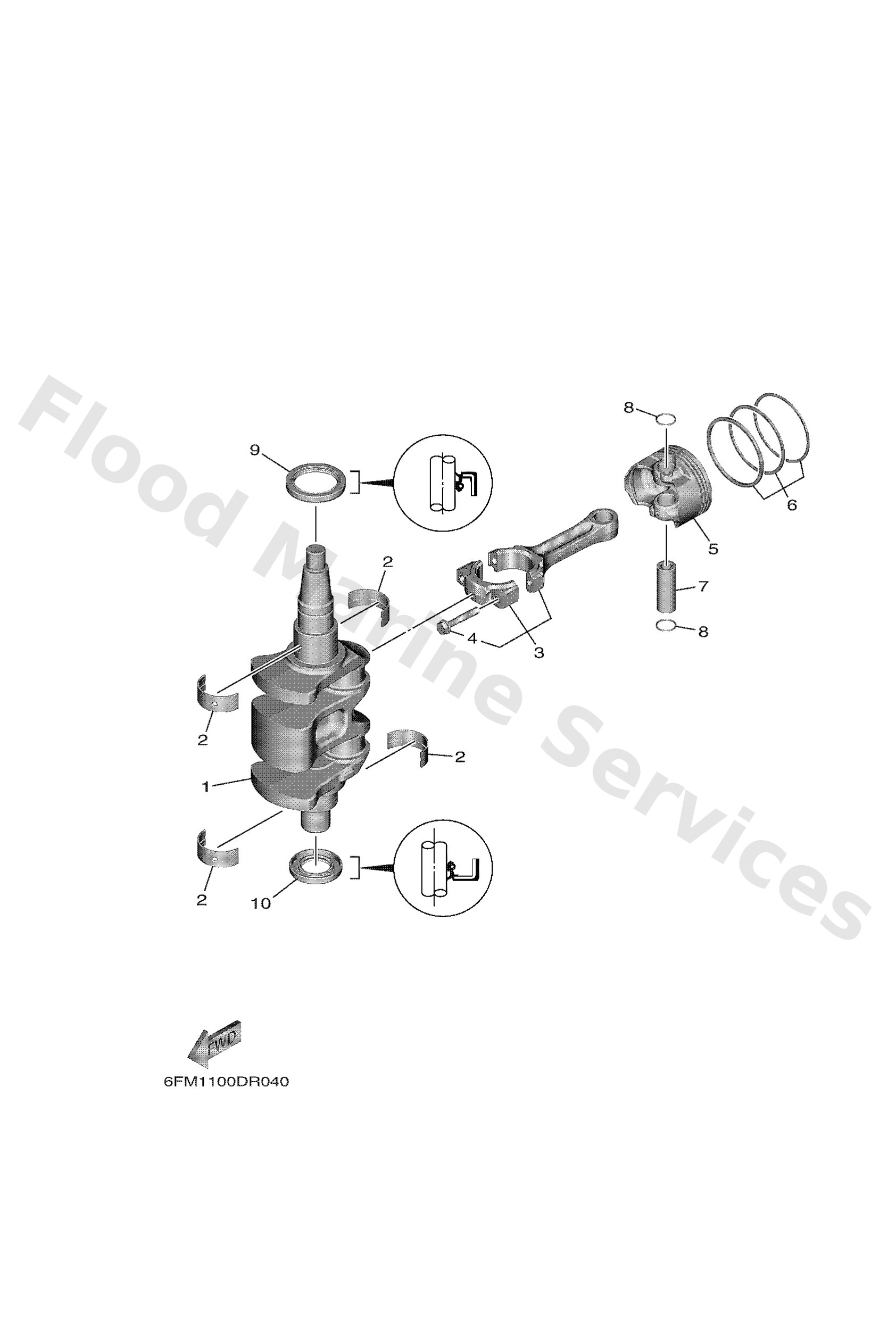

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6FM1141100
Crankshaft
Loading…
↗
2
6AH1141600
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
2
6AH1141610
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
2
6AH1141620
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
3
6FM1165001
Connecting rod assembly
Loading…
↗
4
6AH1165400
Bolt, connecting rod
Loading…
↗
5
6FM1163100
Piston (std)
Loading…
↗
5
6FM1163500
AP
Piston (0.25mm o/s)
Loading…
↗
5
6FM1163600
AP
Piston (0.50mm o/s)
Loading…
↗
6
67C1160301
Piston ring set (std)
Loading…
↗
6
67C1160401
AP
Piston ring set (0.25mm o/s)
Loading…
↗
6
67C1160501
AP
Piston ring set (0.50mm o/s)
Loading…
↗
7
6FM1163300
Pin, piston
Loading…
↗
8
9345017129
Circlip(1ar)
Loading…
↗
9
9310237004
Oil seal
Loading…
↗
10
9310225014
Oil seal
Loading…
↗
