F5AMH (2015)
CRANKSHAFT & PISTON

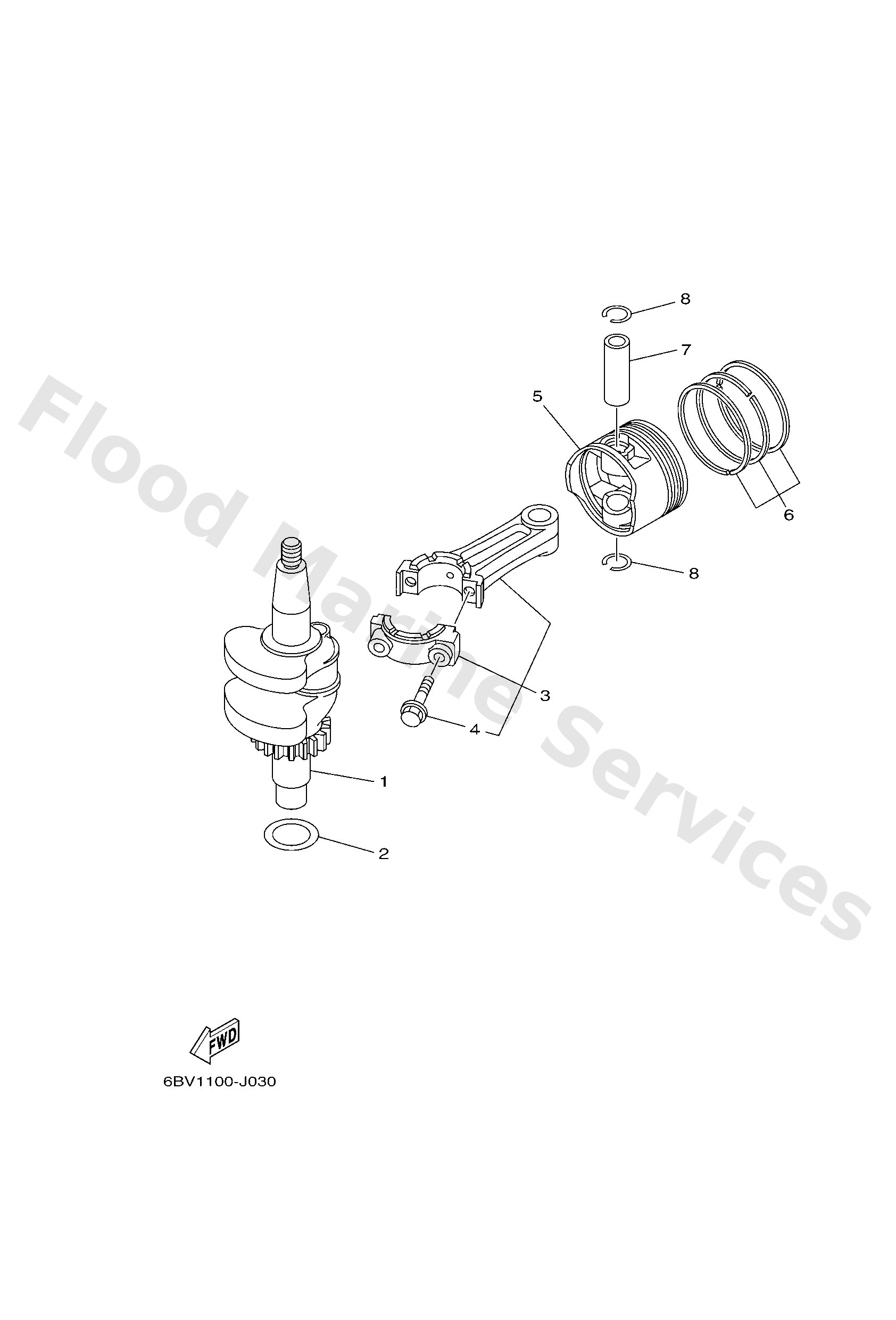

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6BXE141000
Crankshaft
Loading…
↗
2
90201266P2
Washer, plate(ja8)
Loading…
↗
3
6EEE165000
Connecting rod ass
Loading…
↗
4
7CNE165400
Bolt, connecting rod
Loading…
↗
5
6EEE16310096
Piston (std)
Loading…
↗
5
6EEE163500
AP
Piston (0.25mm o/s
Loading…
↗
5
6EEE163600
AP
Piston (0.50mm o/s
Loading…
↗
6
6EEE160300
Piston ring set (s
Loading…
↗
6
6EEE160400
AP
Piston ring set (0
Loading…
↗
6
6EEE160500
AP
Piston ring set (0
Loading…
↗
7
6EEE163300
Pin, piston
Loading…
↗
8
9345016068
Circlip (4g0)
Loading…
↗
