F9.9CE (2008)
CRANKSHAFT & PISTON

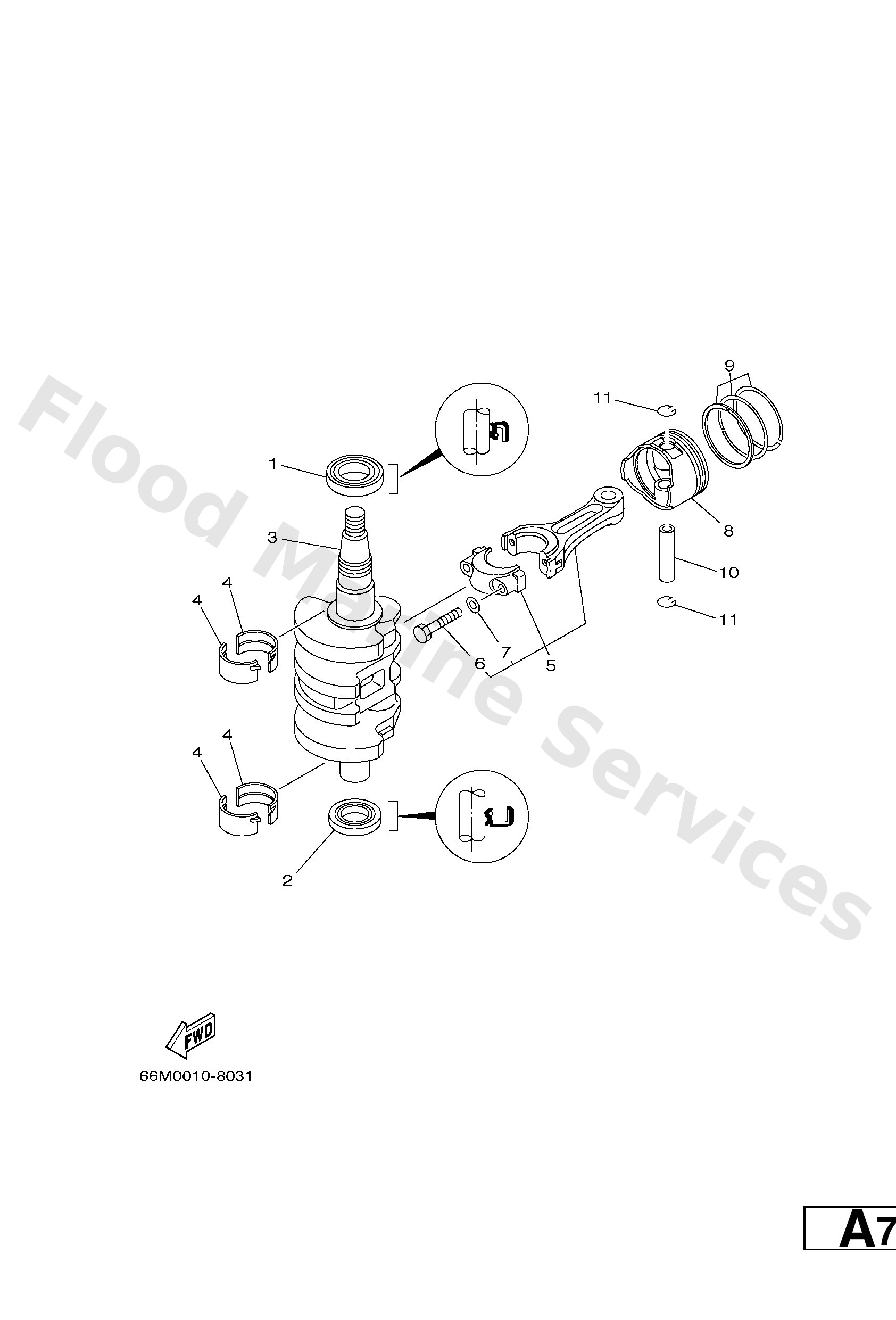

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
9310235M51
Oil seal
Loading…
↗
2
9310225M52
Oil seal
Loading…
↗
3
66M1141100
Crankshaft
Loading…
↗
4
66M1141600
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
66M1141610
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
4
66M1141620
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
5
66M1165000
Connecting rod kit
Loading…
↗
6
66M1165400
Bolt, connecting rod
Loading…
↗
7
9020107M01
Washer, plate
Loading…
↗
8
66M116310096
Piston (std)
Loading…
↗
8
66M1163500
AP
Piston (0.25mm o/s)
Loading…
↗
8
66M1163600
AP
-
Loading…
↗
9
66N1160300
Piston ring set (std)
Loading…
↗
9
66N1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
9
66N1160500
AP
Piston ring set (0.50mm o/s)
Loading…
↗
10
6341163300
Pin, piston
Loading…
↗
11
9345015023
Circlip 131116340000
Loading…
↗
