Yamaha Outboard Parts - CRANKSHAFT & PISTON - FL150AET (2004) | Flood Marine

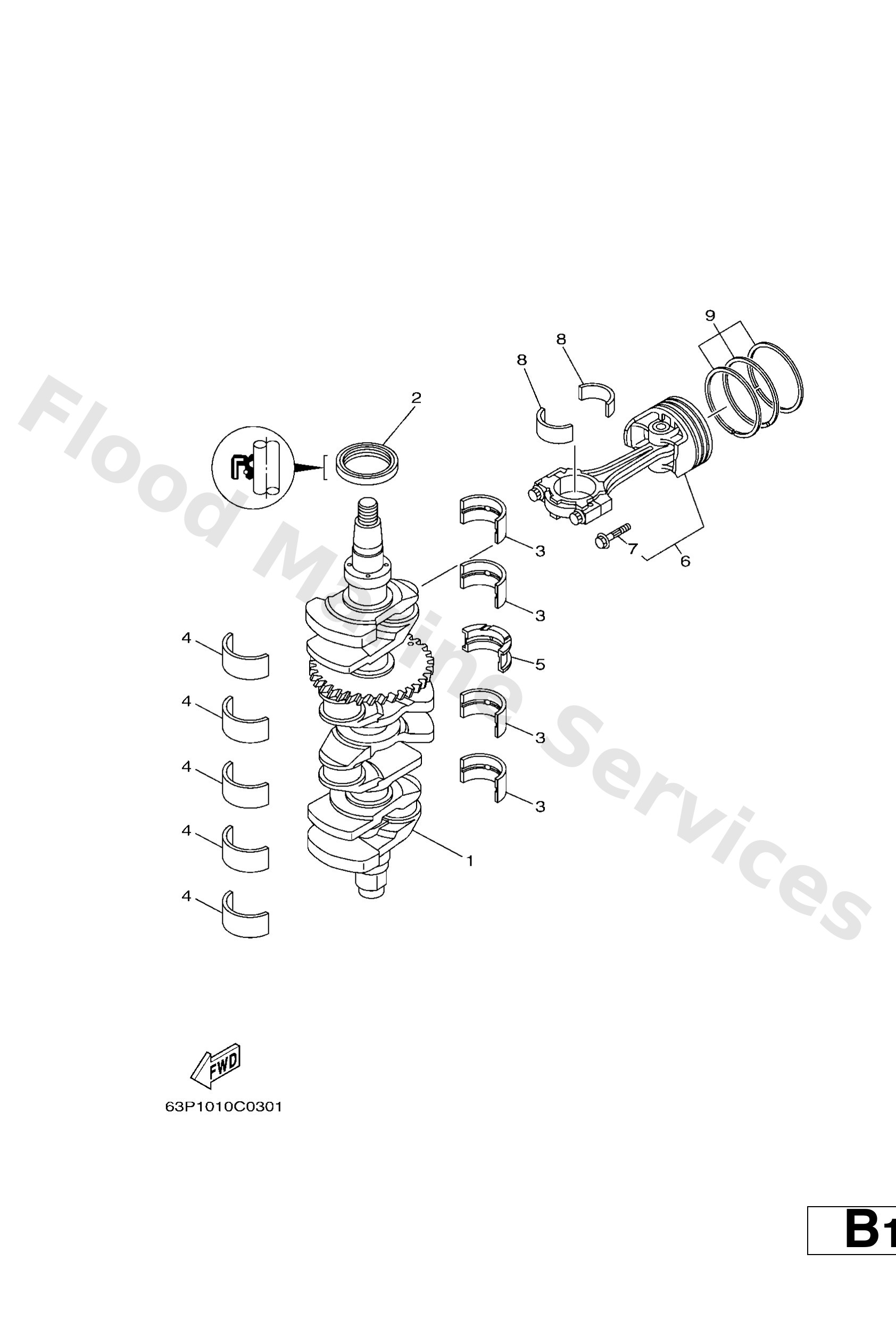

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

Reference
Description
Price


1
63P1141000
Crank shaft
Loading…

↗
2
9310260004
Oil seal
Loading…

↗
3
63P1141631 UR GREEN
Plane bearing, crankshaft 1
Loading…

↗
3
63P1141641 UR RED
Plane bearing, crankshaft 1
Loading…

↗
3
63P1141651 UR YELLOW
Plane bearing, crankshaft 1
Loading…

↗
4
63P1141781 UR BLUE
Plane bearing, crankshaft 2
Loading…

↗
4
63P1141771 UR YELLOW
Plane bearing, crankshaft 2
Loading…

↗
4
63P1141761 UR RED
Plane bearing, crankshaft 2
Loading…

↗
4
63P1141751 UR GREEN
Plane bearing, crankshaft 2
Loading…

↗
4
63P1141741 UR BROWN
Plane bearing, crankshaft 2
Loading…

↗
5
63P1142631 UR GREEN
Bearing, thrust 1
Loading…

↗
5
63P1142641 UR RED
Bearing, thrust 1
Loading…

↗
5
63P1142651 UR YELLOW
Bearing, thrust 1
Loading…

↗
6
63PW116400
Piston/con-rod assembly std
Loading…

↗
7
63P1165400
Bolt, connecting rod
Loading…

↗
8
63P1165600 UR GREEN
-
Loading…

↗
8
63P1165610 UR BLUE
Plane Bearing, Connecting Rod
Loading…

↗
8
63P1165620 UR RED
Plane Bearing, Connecting Rod
Loading…

↗
9
63P1160300
Piston ring set (std)
Loading…

↗
