Yamaha Outboard Parts - CRANKSHAFT & PISTON - FL150AET (2011) | Flood Marine

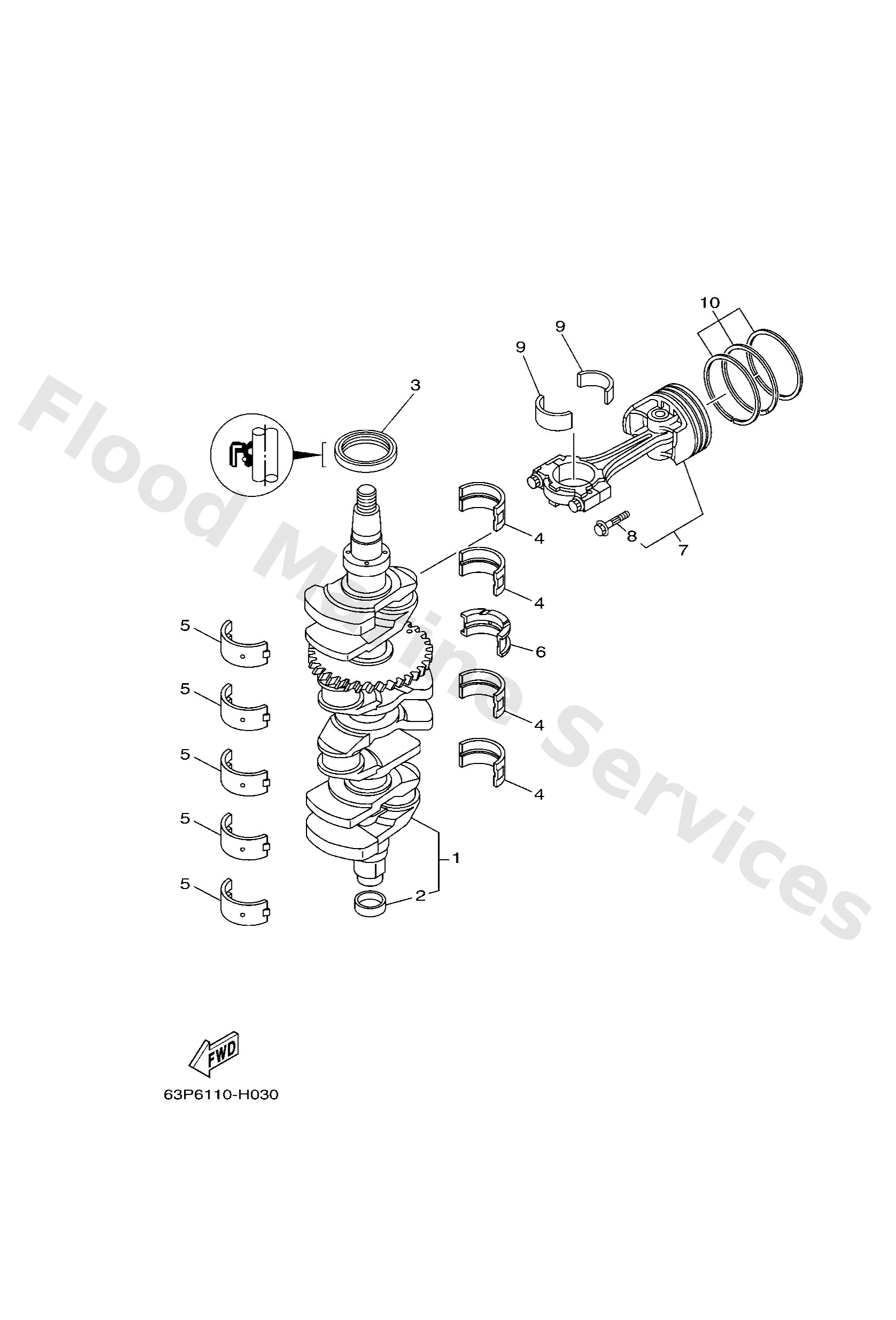

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

Reference
Description
Price


1
63P1141002
Crankshaft
Loading…

↗
2
69J1147800
Collar
Loading…

↗
3
9310260004
Oil seal
Loading…

↗
4
63P1141602 UR GREEN
-
Loading…

↗
4
63P1141631 UR GREEN NEW PARTS
Plane bearing, crankshaft 1
Loading…

↗
4
63P1141612 UR RED
-
Loading…

↗
4
63P1141641 UR RED NEW PARTS
Plane bearing, crankshaft 1
Loading…

↗
4
63P1141622 UR YELLOW
-
Loading…

↗
4
63P1141651 UR YELLOW NEW PARTS
Plane bearing, crankshaft 1
Loading…

↗
5
63P1141771 UR YELLOW NEW PARTS
Plane bearing, crankshaft 2
Loading…

↗
5
63P1141781 UR BLUE NEW PARTS
Plane bearing, crankshaft 2
Loading…

↗
5
63P1141732 UR BLUE/ GREEN
-
Loading…

↗
5
63P1141761 UR RED NEW PARTS
Plane bearing, crankshaft 2
Loading…

↗
5
63P1141751 UR GREEN NEW PARTS
Plane bearing, crankshaft 2
Loading…

↗
5
63P1141712 UR RED
-
Loading…

↗
5
63P1141741 UR BROWN NEW PARTS
Plane bearing, crankshaft 2
Loading…

↗
5
63P1141702 UR GREEN
-
Loading…

↗
5
63P1141722 UR YELLOW
-
Loading…

↗
6
63P1142620 UR YELLOW
-
Loading…

↗
6
63P1142651 UR YELLOW NEW PARTS
Bearing, thrust 1
Loading…

↗
6
63P1142641 UR RED NEW PARTS
Bearing, thrust 1
Loading…

↗
6
63P1142610 UR RED
-
Loading…

↗
6
63P1142631 UR GREEN NEW PARTS
Bearing, thrust 1
Loading…

↗
6
63P1142600 UR GREEN
-
Loading…

↗
7
63PW116401
Piston/con-rod assembly std
Loading…

↗
7
63PW116410 AP
Piston/con-rod assembly(0.25mm os)
Loading…

↗
8
63P1165400
Bolt, connecting rod
Loading…

↗
9
63P1165601 UR GREEN
Plane Bearing, Connecting Rod
Loading…

↗
9
63P1165611 UR BLUE
Plane Bearing, Connecting Rod
Loading…

↗
9
63P1165621 UR RED
Plane Bearing, Connecting Rod
Loading…

↗
10
63P1160301
Piston ring set (std)
Loading…

↗
10
63P1160400 AP
Piston ring set (0.25mm o/s)
Loading…

↗
