Yamaha Outboard Parts - CRANKSHAFT & PISTON - FL150AET (2012) | Flood Marine

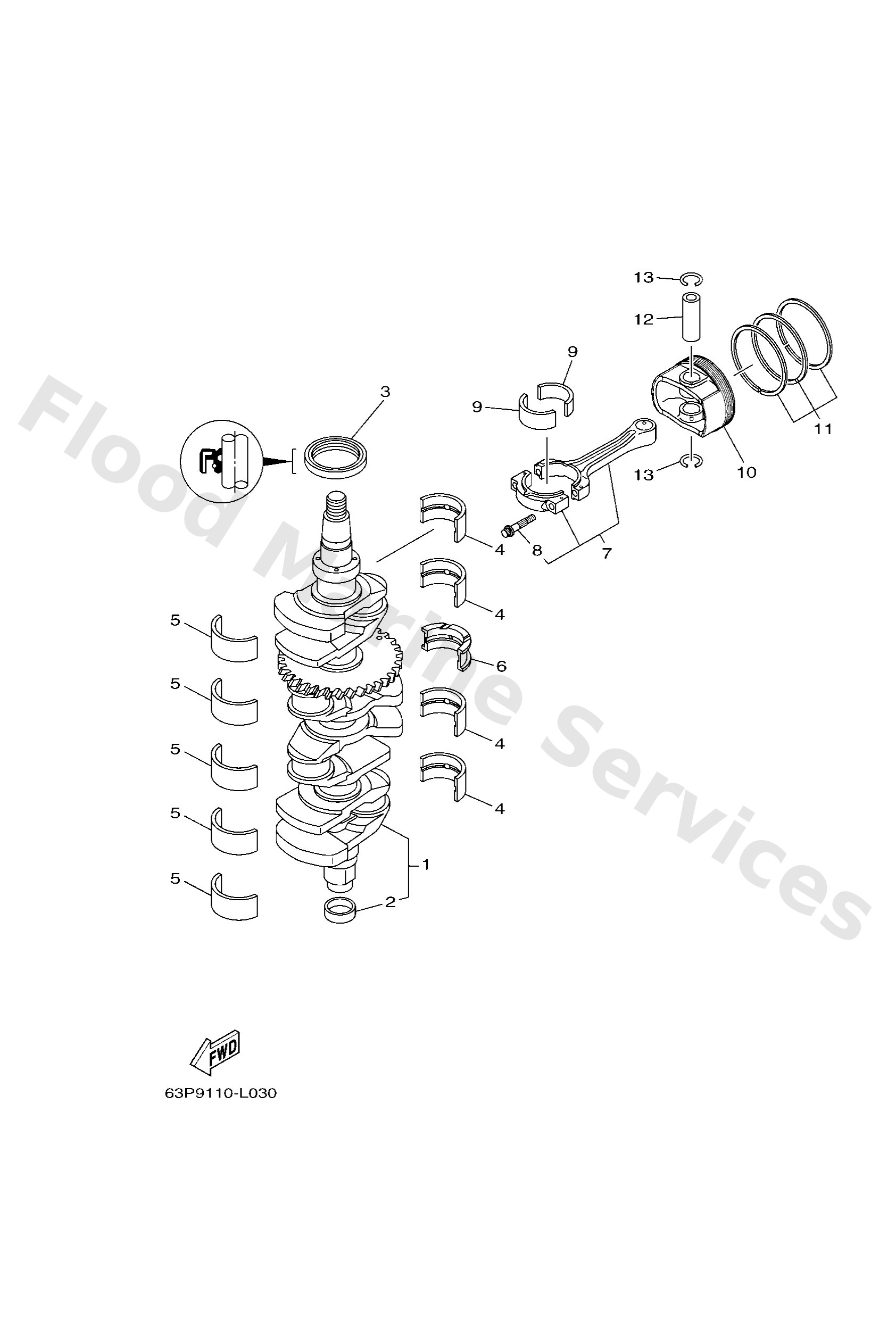

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

Reference
Description
Price


1
63P1141003
Crankshaft
Loading…

↗
2
6CB1147800
Collar
Loading…

↗
3
9310260008
Oil seal
Loading…

↗
4
63P1141651 UR YELLOW
Plane bearing, crankshaft 1
Loading…

↗
4
63P1141641 UR RED
Plane bearing, crankshaft 1
Loading…

↗
4
63P1141631 UR GREEN
Plane bearing, crankshaft 1
Loading…

↗
5
63P1141781 UR BLUE
Plane bearing, crankshaft 2
Loading…

↗
5
63P1141771 UR YELLOW
Plane bearing, crankshaft 2
Loading…

↗
5
63P1141761 UR RED
Plane bearing, crankshaft 2
Loading…

↗
5
63P1141751 UR GREEN
Plane bearing, crankshaft 2
Loading…

↗
5
63P1141741 UR BROWN
Plane bearing, crankshaft 2
Loading…

↗
6
63P1142641 UR RED
Bearing, thrust 1
Loading…

↗
6
63P1142651 UR YELLOW
Bearing, thrust 1
Loading…

↗
6
63P1142631 UR GREEN
Bearing, thrust 1
Loading…

↗
7
63PW116510
Connecting rod assembly
Loading…

↗
8
63P1165410
Bolt, connecting rod
Loading…

↗
9
63P1165650 UR RED
Plane bearing, connecting rod
Loading…

↗
9
63P1165640 UR BLUE
Plane bearing, connecting rod
Loading…

↗
9
63P1165630 UR GREEN
Plane bearing, connecting rod
Loading…

↗
10
63P116311093
Piston (std)
Loading…

↗
10
63P1163510 AP
Piston (0.25mm o/s)
Loading…

↗
11
63P1160301
Piston ring set (std)
Loading…

↗
11
63P1160400 AP
Piston ring set (0.25mm o/s)
Loading…

↗
12
63P1163310
Pin, piston
Loading…

↗
13
63P1163400
Clip, piston pin
Loading…

↗
