FL200CET (2006)
CRANKSHAFT & PISTON

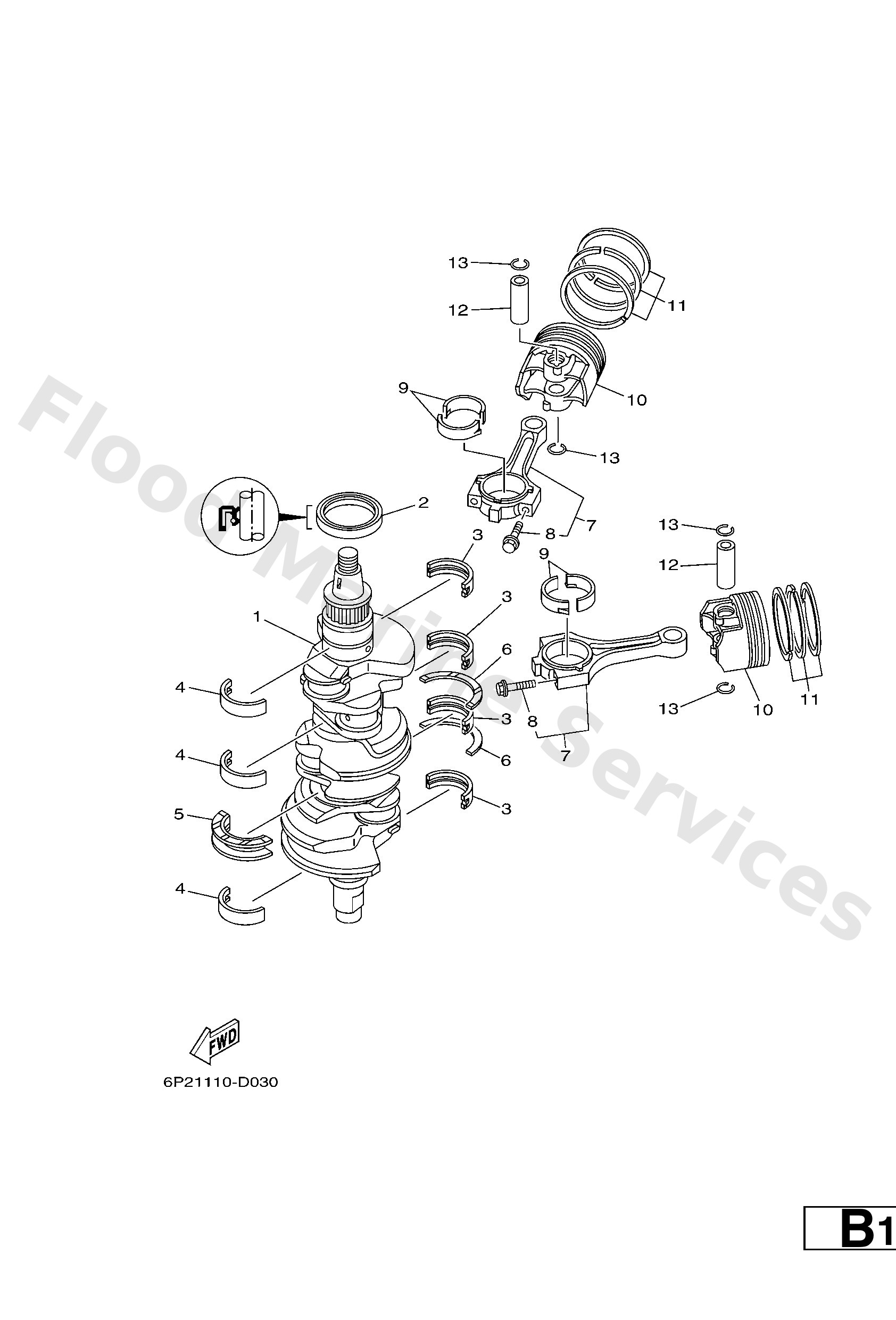

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6P21141000
Crankshaft & oil pump set
Loading…
↗
2
9310263004
Oil seal
Loading…
↗
3
69J1141600
UR #1
Plane bearing, crankshaft 1 (
Loading…
↗
3
69J1141610
UR #2
Plane bearing, crankshaft 1 (
Loading…
↗
3
69J1141620
UR #3
Plane bearing, crankshaft 1 (#
Loading…
↗
4
69J1141700
UR #1
Plane bearing, crankshaft 2 (#
Loading…
↗
4
69J1141710
UR #2
Plane bearing, crankshaft 2 (#
Loading…
↗
4
69J1141720
UR #3
Plane bearing, crankshaft 2
Loading…
↗
5
69J1142620
UR #3
Bearing, thrust 1 (#3)
Loading…
↗
5
69J1142610
UR #2
Bearing, thrust 1 (#2)
Loading…
↗
5
69J1142600
UR #1
Bearing, thrust 1 (#1)
Loading…
↗
6
69J1142700
Bearing, thrust 2
Loading…
↗
7
69JW116501
Connecting rod assembly
Loading…
↗
8
69J1165400
Bolt, connecting rod
Loading…
↗
9
69J1165600
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
9
69J1165610
UR GREEN
Plane bearing, connecting rod
Loading…
↗
9
69J1165620
UR BLUE
Plane bearing, connecting rod
Loading…
↗
10
6P21163100B0
Piston (std)
Loading…
↗
11
63P1160301
Piston ring set (std)
Loading…
↗
12
69J1163300
Pin, piston
Loading…
↗
13
69J1163400
Clip, piston pin
Loading…
↗
