FL200CET (2009)
CRANKSHAFT & PISTON

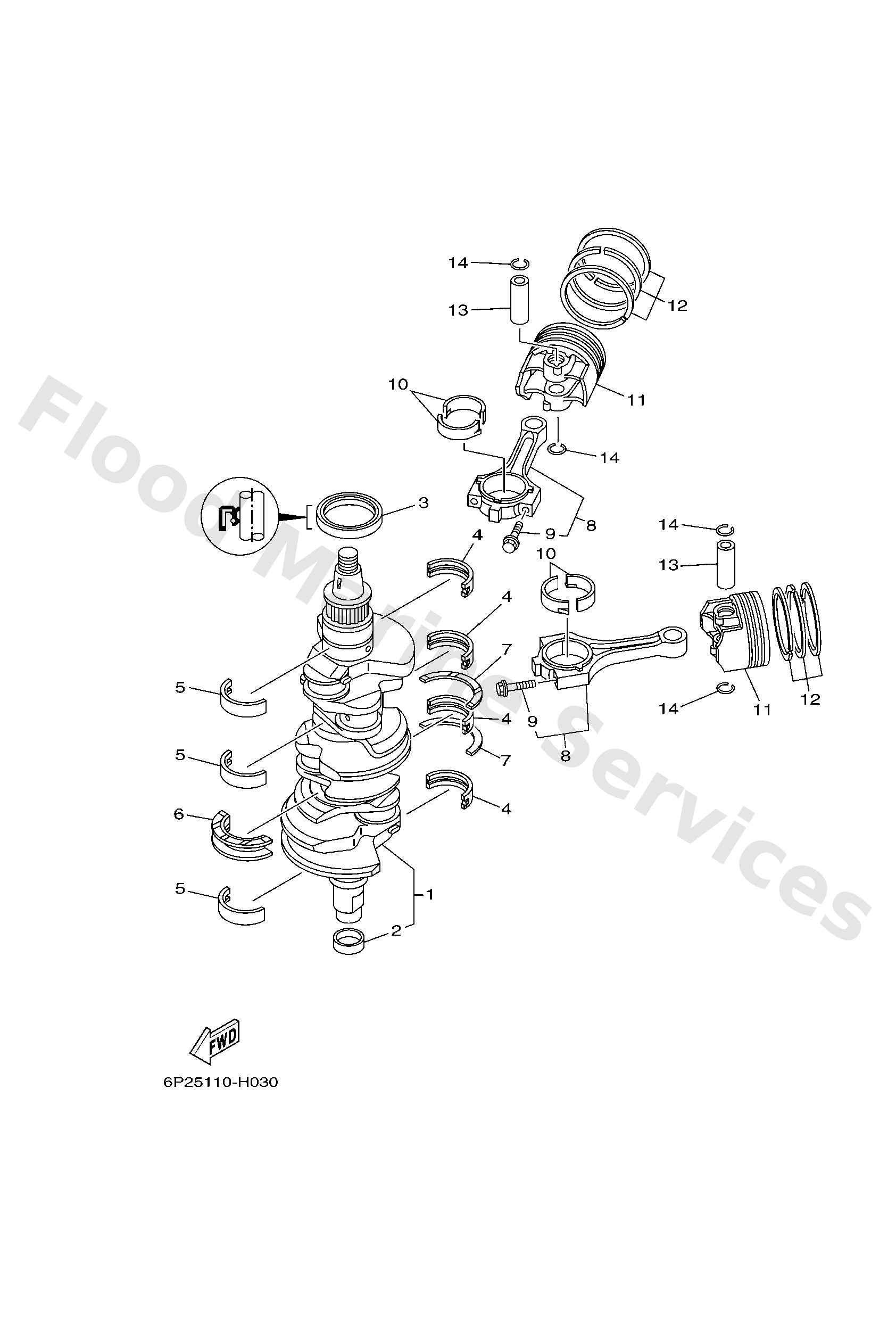

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6P21141001
Crankshaft
Loading…
↗
2
69J1147800
Collar
Loading…
↗
3
9310263004
Oil seal
Loading…
↗
4
69J1141601
UR #1
Plane bearing, crankshaft 1 (
Loading…
↗
4
69J1141611
UR #2
Plane bearing, crankshaft 1 (
Loading…
↗
4
69J1141621
UR #3
Plane bearing, crankshaft 1 (#
Loading…
↗
5
69J1141701
UR #1
Plane bearing, crankshaft 2 (#
Loading…
↗
5
69J1141711
UR #2
Plane bearing, crankshaft 2 (#
Loading…
↗
5
69J1141721
UR #3
Plane bearing, crankshaft 2
Loading…
↗
6
69J1142621
UR #3
Bearing, thrust 1 (#3)
Loading…
↗
6
69J1142611
UR #2
Bearing, thrust 1 (#2)
Loading…
↗
6
69J1142601
UR #1
Bearing, thrust 1 (#1)
Loading…
↗
7
69J1142700
Bearing, thrust 2
Loading…
↗
8
69JW116501
Connecting rod assembly
Loading…
↗
9
69J1165400
Bolt, connecting rod
Loading…
↗
10
69J1165600
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
10
69J1165610
UR GREEN
Plane bearing, connecting rod
Loading…
↗
10
69J1165620
UR BLUE
Plane bearing, connecting rod
Loading…
↗
11
6P21163101B0
Piston (std)
Loading…
↗
12
63P1160301
Piston ring set (std)
Loading…
↗
13
69J1163300
Pin, piston
Loading…
↗
14
69J1163401
Clip, piston pin
Loading…
↗
