FL200FET1 (2015)
CRANKSHAFT & PISTON

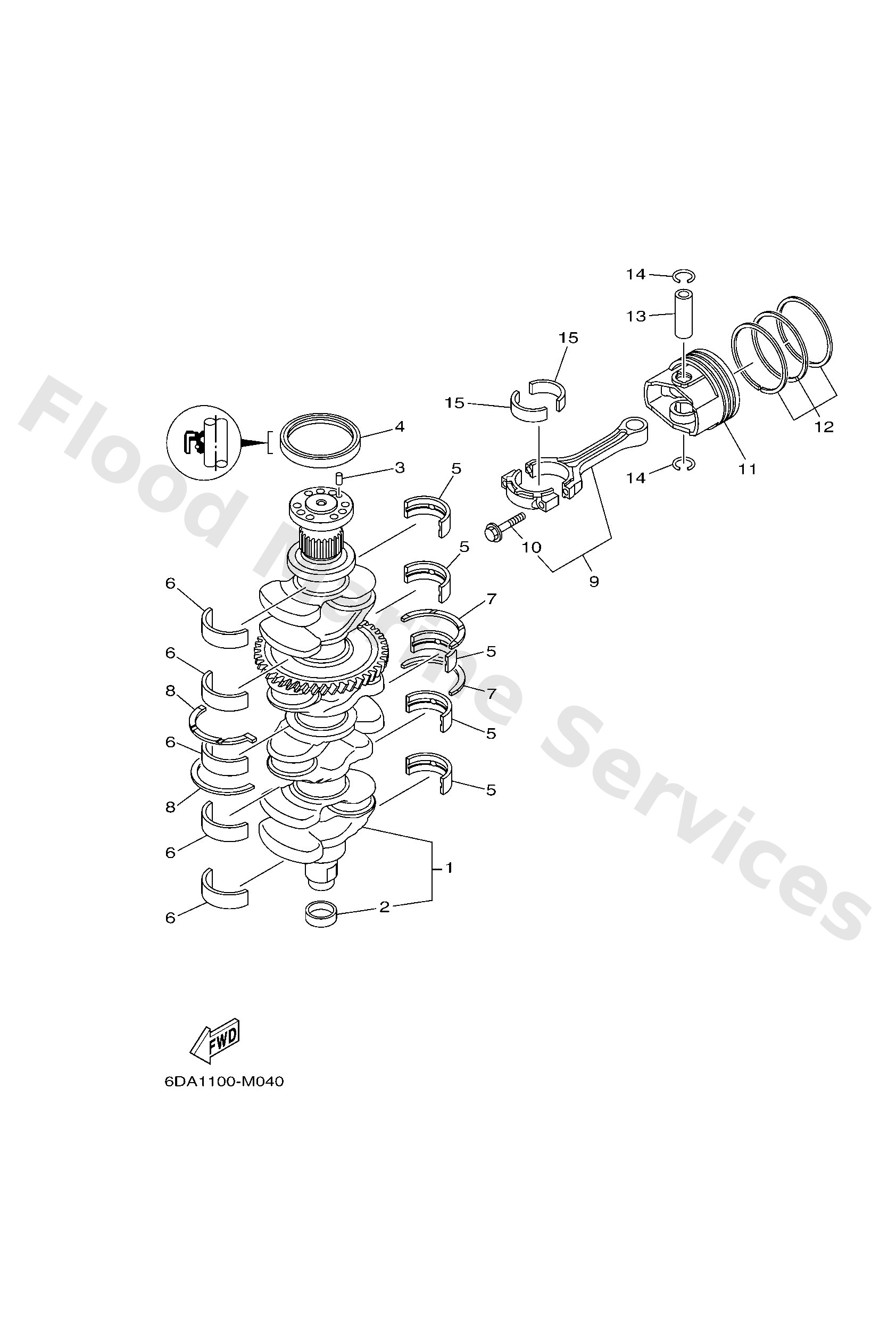

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6DA1141000
Crankshaft
Loading…
↗
2
6CB1147800
Collar
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9310285008
Oil seal
Loading…
↗
5
6DA1141600
UR YELLOW
Plane bearing, crankshaft 1
Loading…
↗
5
6DA1141610
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
5
6DA1141620
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
6
6DA1141700
UR YELLOW
Plane bearing, crankshaft 2
Loading…
↗
6
6DA1141710
UR GREEN
Plane bearing, crankshaft 2
Loading…
↗
6
6DA1141720
UR BLUE
Plane bearing, crankshaft 2
Loading…
↗
7
6DA1142600
Bearing, thrust 1
Loading…
↗
8
6DA1142700
Bearing, thrust 2
Loading…
↗
9
6CBW116500
Connecting rod assembly
Loading…
↗
10
6CB1165400
Bolt, connecting rod
Loading…
↗
11
6DA116311094
Piston (std)
Loading…
↗
12
6CB1160300
Piston ring set (std)
Loading…
↗
13
6CB1163300
Pin, piston
Loading…
↗
14
K0FA323300
Ring, hole snap
Loading…
↗
15
6CB1165600
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
15
6CB1165610
UR GREEN
Plane bearing, connecting rod
Loading…
↗
15
6CB1165620
UR BLUE
Plane bearing, connecting rod
Loading…
↗
