FL225BET (2011)
CRANKSHAFT & PISTON

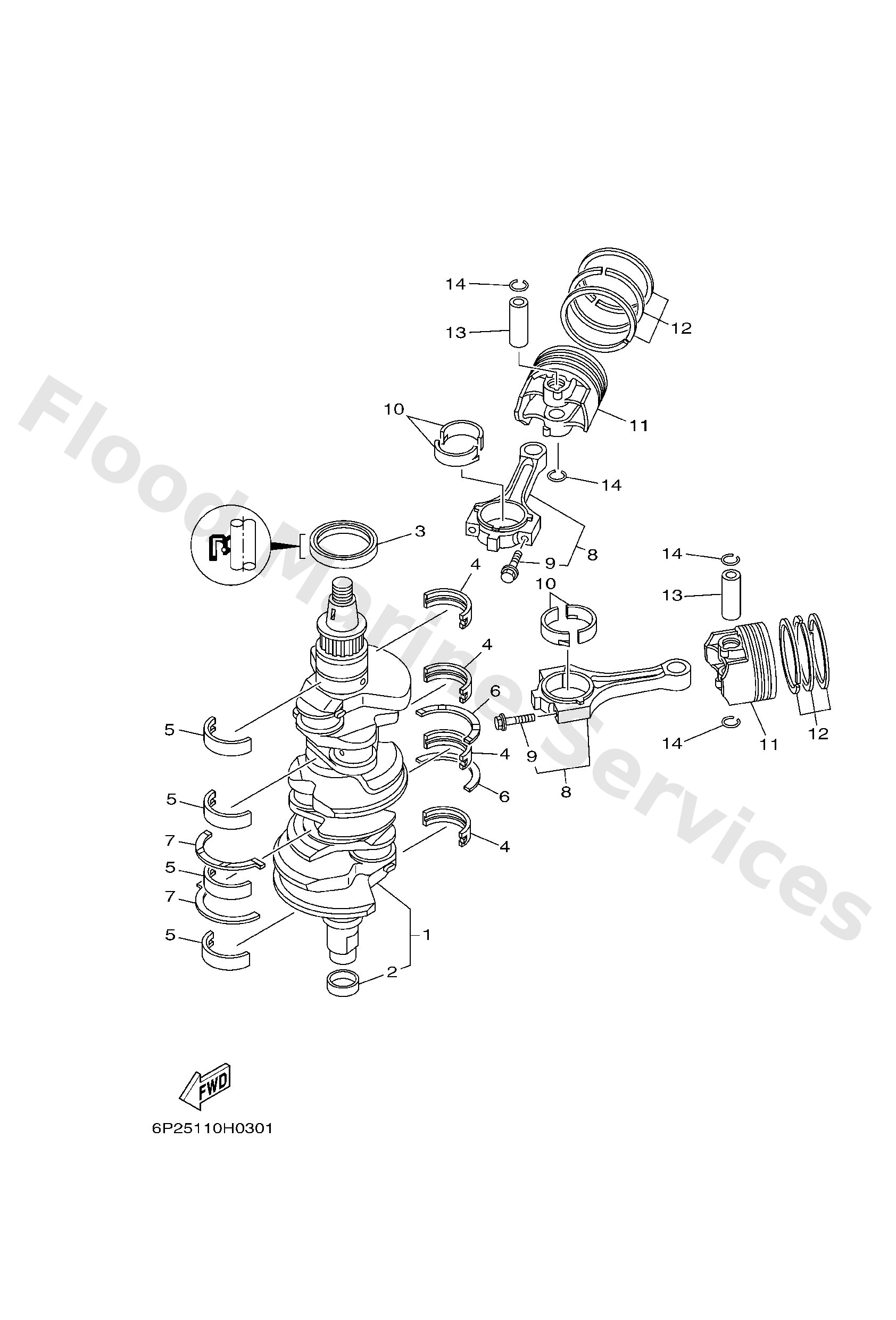

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6P21141001
Crankshaft
Loading…
↗
2
69J1147800
Collar
Loading…
↗
3
9310263004
Oil seal
Loading…
↗
4
69J1141601
UR #1
Plane bearing, crankshaft 1 (
Loading…
↗
4
69J1141611
UR #2
Plane bearing, crankshaft 1 (
Loading…
↗
4
69J1141621
UR #3
Plane bearing, crankshaft 1 (#
Loading…
↗
5
69J1141701
UR #1 Go to P/N)PE0-OM-130019
Plane bearing, crankshaft 2 (#
Loading…
↗
5
69J1141711
UR #2 Go to P/N)PE0-OM-130019
Plane bearing, crankshaft 2 (#
Loading…
↗
5
69J1141721
UR #3 Go to P/N)PE0-OM-130019
Plane bearing, crankshaft 2
Loading…
↗
6
6AW1142600
Go to P/N)PE0-OM-130019
Bearing, thrust 1
Loading…
↗
7
6AW1142700
Go to P/N)PE0-OM-130019
Bearing, thrust 2
Loading…
↗
8
69JW116501
Connecting rod assembly
Loading…
↗
9
69J1165400
Bolt, connecting rod
Loading…
↗
10
69J1165600
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
10
69J1165610
UR GREEN
Plane bearing, connecting rod
Loading…
↗
10
69J1165620
UR BLUE
Plane bearing, connecting rod
Loading…
↗
11
6P2116310193
Piston (std)
Loading…
↗
12
63P1160301
Piston ring set (std)
Loading…
↗
13
69J1163300
Pin, piston
Loading…
↗
14
69J1163401
Clip, piston pin
Loading…
↗
