Yamaha Outboard Parts - CRANKSHAFT & PISTON - FL225FET (2021) | Flood Marine

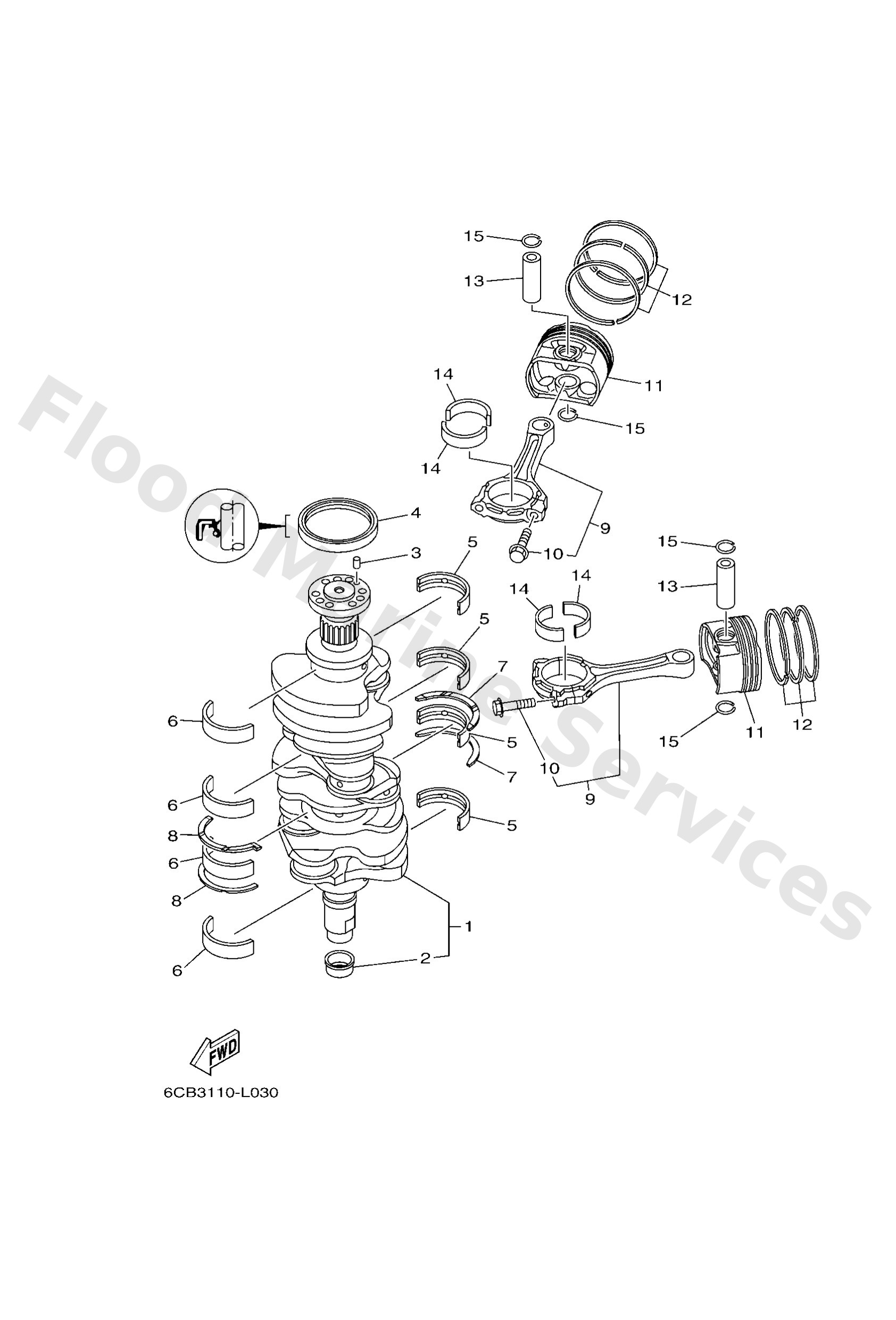

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

Reference
Description
Price


1
6CB1141000
Crankshaft
Loading…

↗
2
6CB1147800
Collar
Loading…

↗
3
9360612019
Pin, dowel (614)
Loading…

↗
4
9310285008
Oil seal
Loading…

↗
5
6CB1141610 UR YELLOW
Plane bearing, crankshaft 1
Loading…

↗
5
6CB1141640 UR BROWN
Plane bearing, crankshaft 1
Loading…

↗
5
6CB1141630 UR GREEN
Plane bearing, crankshaft 1
Loading…

↗
5
6CB1141620 UR RED
Plane bearing, crankshaft 1
Loading…

↗
5
6CB1141600 UR PURPLE
Plane bearing, crankshaft 1
Loading…

↗
6
6CB1141740 UR BROWN
Plane bearing, crankshaft 2
Loading…

↗
6
6CB1141730 UR GREEN
Plane bearing, crankshaft 2
Loading…

↗
6
6CB1141720 UR RED
Plane bearing, crankshaft 2
Loading…

↗
6
6CB1141710 UR YELLOW
Plane bearing, crankshaft 2
Loading…

↗
6
6CB1141700 UR PURPLE
Plane bearing, crankshaft 2
Loading…

↗
7
6CB1142603
Bearing, thrust 1
Loading…

↗
8
6CB1142703
Bearing, thrust 2
Loading…

↗
9
6CBW116510
Connecting rod assembly
Loading…

↗
10
63P1165410
Bolt, connecting rod
Loading…

↗
11
6CE1163102
Piston (std)
Loading…

↗
12
6CB1160300
Piston ring set (std)
Loading…

↗
13
6CB1163300
Pin, piston
Loading…

↗
14
6JD1165620 UR RED
Plane bearing, connecting rod
Loading…

↗
14
6JD1165610 UR PINK
Plane bearing, connecting rod
Loading…

↗
14
6JD1165600 UR BLACK
Plane bearing, connecting rod
Loading…

↗
15
K0FA323300
Ring, hole snap
Loading…

↗
