FL300AET (2008)
CRANKSHAFT & PISTON

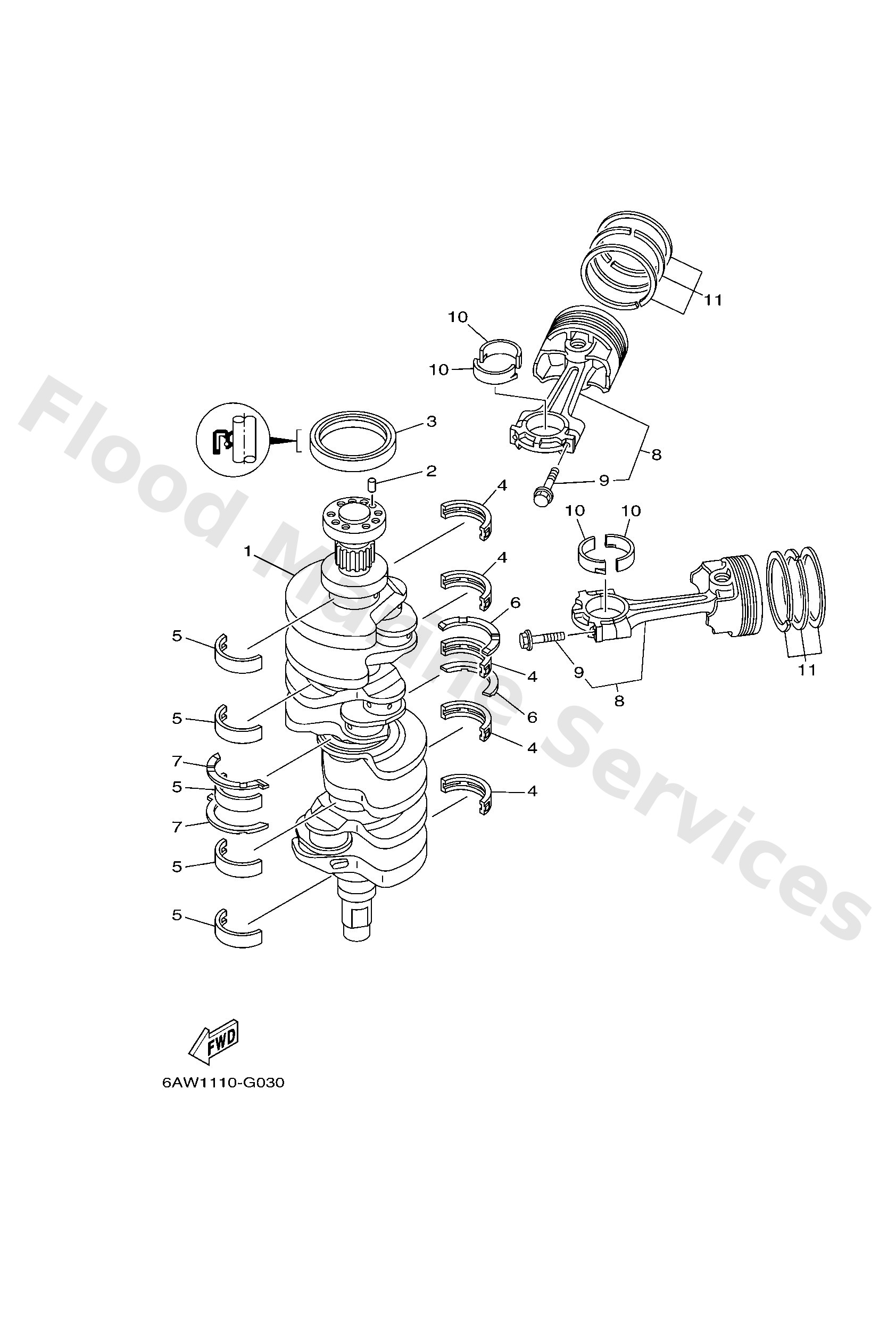

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6AW1141100
Crankshaft
Loading…
↗
2
9360612019
Pin, dowel (614)
Loading…
↗
3
9310285004
Oil seal
Loading…
↗
4
6AW1141600
UR YELLOW
Plane bearing, crankshaft 1
Loading…
↗
4
6AW1141610
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
4
6AW1141620
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
6AW1141630
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
4
6AW1141640
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
5
6AW1141720
UR BROWN
Plane bearing, crankshaft 2
Loading…
↗
5
6AW1141740
UR BLUE
Plane bearing, crankshaft 2
Loading…
↗
5
6AW1141730
UR BLACK
Plane bearing, crankshaft 2
Loading…
↗
5
6AW1141710
UR GREEN
Plane bearing, crankshaft 2
Loading…
↗
5
6AW1141700
UR YELLOW
Plane bearing, crankshaft 2
Loading…
↗
6
6AW1142600
Bearing, thrust 1
Loading…
↗
7
6AW1142700
Bearing, thrust 2
Loading…
↗
8
6AWW116400
Piston/con-rod assembly std
Loading…
↗
9
63P1165401
Bolt, connecting rod
Loading…
↗
10
63P1165601
UR GREEN
Plane Bearing, Connecting Rod
Loading…
↗
10
63P1165611
UR BLUE
Plane Bearing, Connecting Rod
Loading…
↗
10
63P1165621
UR RED
Plane Bearing, Connecting Rod
Loading…
↗
11
6AW1160300
Piston ring set (std)
Loading…
↗
