FL350AET (2012)
CRANKSHAFT & PISTON

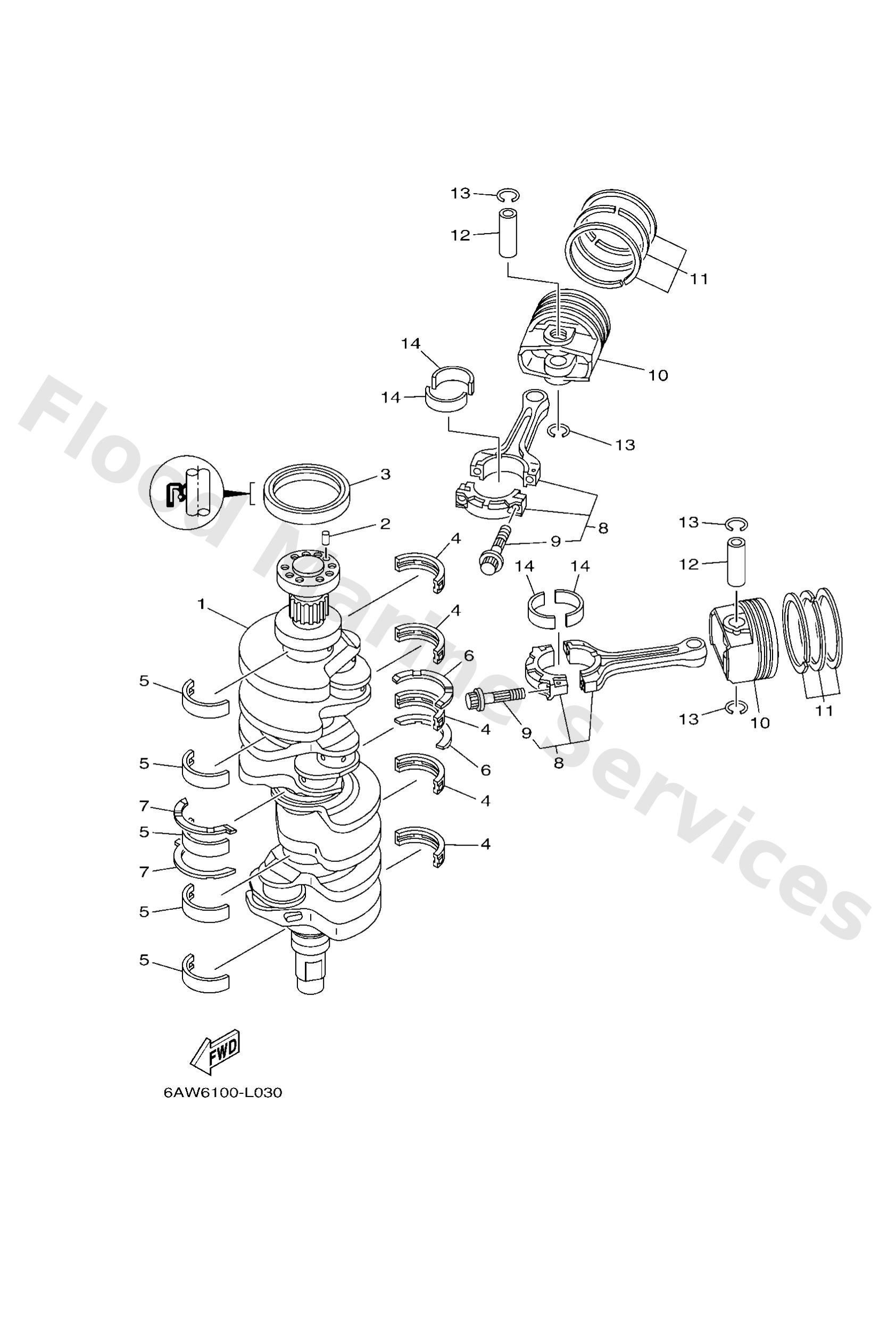

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6AW1141110
Crankshaft
Loading…
↗
2
9360612019
Pin, dowel (614)
Loading…
↗
3
9310285004
Oil seal
Loading…
↗
4
6AW1141610
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
4
6AW1141640
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
4
6AW1141630
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
4
6AW1141620
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
6AW1141600
UR YELLOW
Plane bearing, crankshaft 1
Loading…
↗
5
6AW1141720
UR BROWN
Plane bearing, crankshaft 2
Loading…
↗
5
6AW1141700
UR YELLOW
Plane bearing, crankshaft 2
Loading…
↗
5
6AW1141710
UR GREEN
Plane bearing, crankshaft 2
Loading…
↗
5
6AW1141730
UR BLACK
Plane bearing, crankshaft 2
Loading…
↗
5
6AW1141740
UR BLUE
Plane bearing, crankshaft 2
Loading…
↗
6
6AW1142600
OLD PART
Bearing, thrust 1
Loading…
↗
6
6AW1142601
NEW PART
Bearing, thrust 1
Loading…
↗
7
6AW1142700
OLD PART
Bearing, thrust 2
Loading…
↗
7
6AW1142701
NEW PART
Bearing, thrust 2
Loading…
↗
8
6AWW116500
Connecting rod assembly
Loading…
↗
9
63P1165410
Bolt, connecting rod
Loading…
↗
10
6AW116311093
Piston (std)
Loading…
↗
11
6AW1160300
Piston ring set (std)
Loading…
↗
12
63P1163310
Pin, piston
Loading…
↗
13
63P1163400
Clip, piston pin
Loading…
↗
14
6AW1165630
UR PURPLE
Plane bearing, connecting rod
Loading…
↗
14
6AW1165620
UR RED
Plane bearing, connecting rod
Loading…
↗
14
6AW1165610
UR BLUE
Plane bearing, connecting rod
Loading…
↗
14
6AW1165600
UR GREEN
Plane bearing, connecting rod
Loading…
↗
